Motorized Actuator, High-Precision, 25 mm Travel Range
Motorized Actuator, High-Precision, 25 mm Travel Range
Model: VP-25AA
In Stock
Product Series Overview

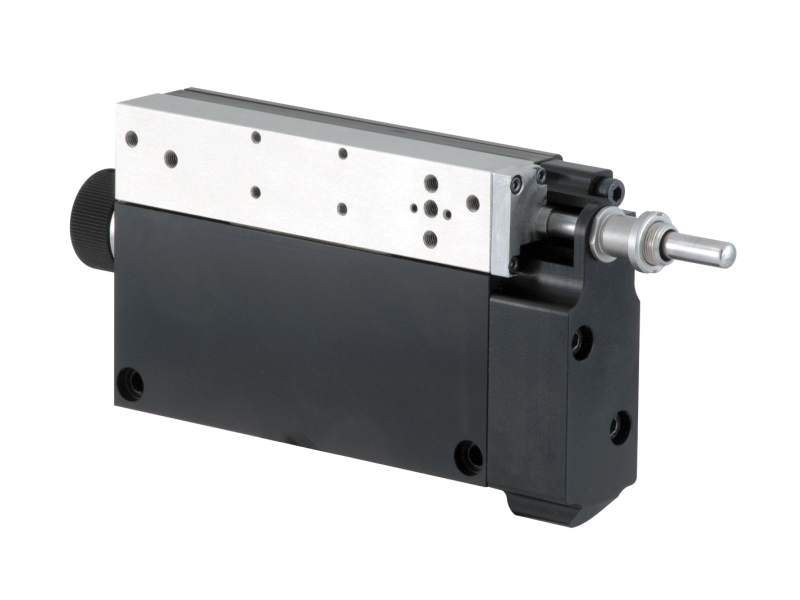

High Precision Motorized Actuator, VP SeriesThe VP-25AA actuators combine precise positioning with highly reliable performance. It is based on the same innovative design used in the VP-25XA linear stages and features a high-resolution linear scale for exceptional repeatability and accuracy. The scale is fixed on a moving rail to which the actuator’s tip is permanently attached without any contact to the mounting shaft. This concept eliminates all drivetrain induced motion errors and minimizes hysteresis between the scale and the actuator tip. The non-rotating tip is essential to avoid undesirable periodic motion variations caused by the variable contact between the actuator tip and the mating surface.The top rail of the VP-25AA can also be used as a single-rail linear stage to position optical fibers, micro-optics, sensors, or other small and lightweight parts. For added versatility, a mounting interface for a dovetail rail compatible with the popular ULTRAlign™ positioning system is provided. This system offers a wide selection of interchangeable mounts for optical fibers, fiber arrays, objectives, or GRIN lenses in a variety of fiber alignment applications.
Resources & Downloads
Application Notes
2D Product Drawings
VP-25AA-S(125.5 kB, PDF)
Literature
Telecom Data Brochure(4.9 MB, PDF) VP-25AA Data Sheet.pdf(1.4 MB, PDF)
Manuals
VP-25AA Actuator User's Manual(1.1 MB, PDF)
Technical Notes
Optical Fiber Alignment - White Paper(8.6 MB, PDF)
