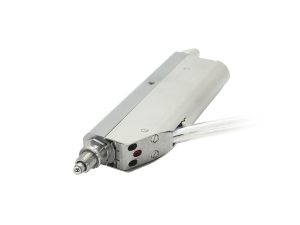

LTA Precision Motorized Actuators

LTA actuators are designed to directly replace manual micrometers in existing manual stages and other opto-mechanical components to enable automated motion solutions.

Robust design for industrial applications
High load capacity & high speed DC Servo versions
Vacuum versions with stepper motor & encoder
Non-rotating tip improves motion smoothness
Exceptional minimum incremental motion
Manual positioning knob and scale position indicator

See All Features

Description	Compatibility	Travel Range	Minimum Incremental Motion	Maximum Speed	Avail.	Price
LTA-HLMotorized Actuator, High Load, 25 mm travel, LTA, M12 thread	UNIVERSAL	25 mm	0.05 µm	1 mm/s	FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,615
LTA-HSMotorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL	50 mm	0.10 µm	5 mm/s	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,512
LTAHLPPV6Motorized Actuator, High Load, 25 mm Travel, Vacuum Compatible	UNIVERSAL	25 mm	0.08 µm	0.25 mm/s		$4,363
LTAHSPPV6Motorized Actuator, High Speed, 50 mm Travel, Vacuum Compatible	UNIVERSAL	50 mm	0.08 µm	0.5 mm/s		$4,099

Notes:

CONEX Controller versions are also available.

Compatible Controllers

Compatible motion controllers for the LTA actuators are:

XPS-RLD Motion Controller ( or Axis): Requires an Driver Module.
XPS-D Motion Controller (, , or Axis): Requires an Driver Module.
ESP302 Motion Controller (, , or Axis): Plug and Play compatible with ESP302 Motion Controller.

The LTA actuators are also compatible with Single Axis Motion Controller, and the LTA-PPV6 actuators are compatible with Single Axis Motion Controller with maximum speed reduced to 40% of the specified value above.

Specifications

Models
Travel Range	25 mm	50 mm	50 mm	25 mm
Push Force	120 N	50 N	40 N	100 N
Pull Force	100 N	40 N	40 N	100 N
Minimum Incremental Motion	0.05 µm	0.10 µm	0.08 µm	0.08 µm
Maximum Speed	1 mm/s	5 mm/s	0.5 mm/s	0.25 mm/s
Accuracy, Typical	±1.2 µm	±2.2 µm	±2.2 µm	±1.2 µm
Accuracy, Guaranteed	±3.0 µm	±5.0 µm	±5.0 µm	±3.0 µm
Uni-directional Repeatability, Typical	±0.10 µm	±0.10 µm	±0.10 µm	±0.10 µm
Uni-directional Repeatability, Guaranteed	±0.25 µm	±0.25 µm	±0.25 µm	±0.30 µm
Bi-directional Repeatability, Typical	±0.30 µm	±0.30 µm	±0.30 µm	±0.30 µm
Bi-directional Repeatability, Guaranteed	±1.0 µm	±1.0 µm	±1.0 µm	±1.0 µm
Origin Repeatability	±2 µm	±2 µm	±2 µm	±2 µm
Cable Length	3 m	3 m	1.5 m	1.5 m
Vacuum Compatibility	No	No	10^-6 Torr	10^-6 Torr
Weight	0.52 kg	0.48 kg	0.35 kg	0.35 kg
MTBF	10,000 h (25% load, 30% Duty cycle)	10,000 h (25% load, 30% Duty cycle)	10,000 h (25% load, 30% Duty cycle)	10,000 h (25% load, 30% Duty cycle)

Features

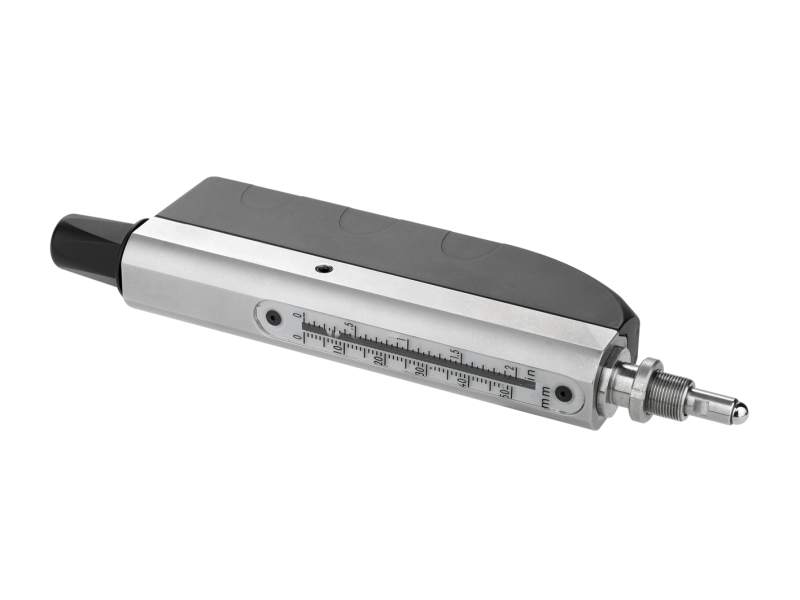

High Speed 50 mm Travel

The LTA-HS features a DC servo motor with optimized output torque for high speed applications. It also offers the longest travel range of all Newport actuators at 50 mm.

CONEX Controller Versions

Newport also offers versions of these linear actuators with integrated CONEX motion controller. For out-of-the-box control, the CONEX controller is preconfigured and delivered with the LTA actuator.

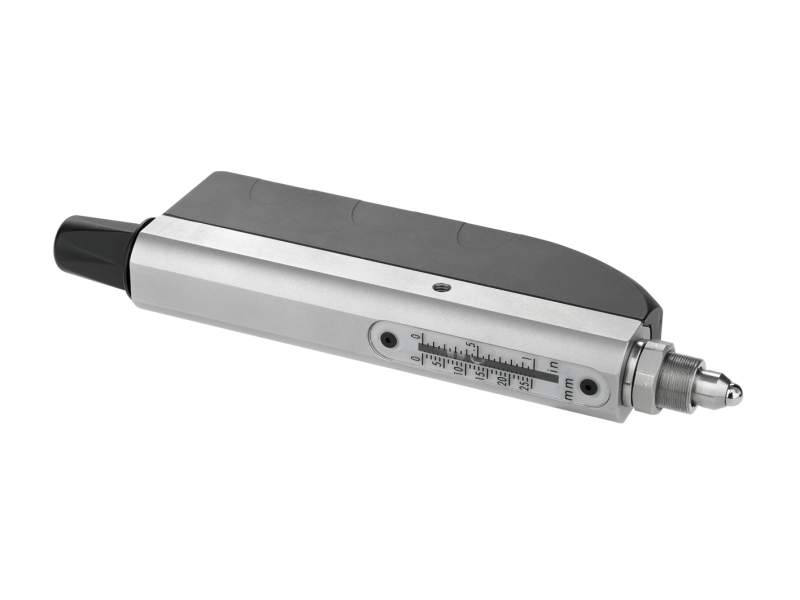

120 N High Load Version

The LTA-HL features a DC servo motor with optimized output torque for higher load capacity. It is recommended for heavy load applications which require up to 120 N of axial load capacity.

Vacuum Compatible Versions

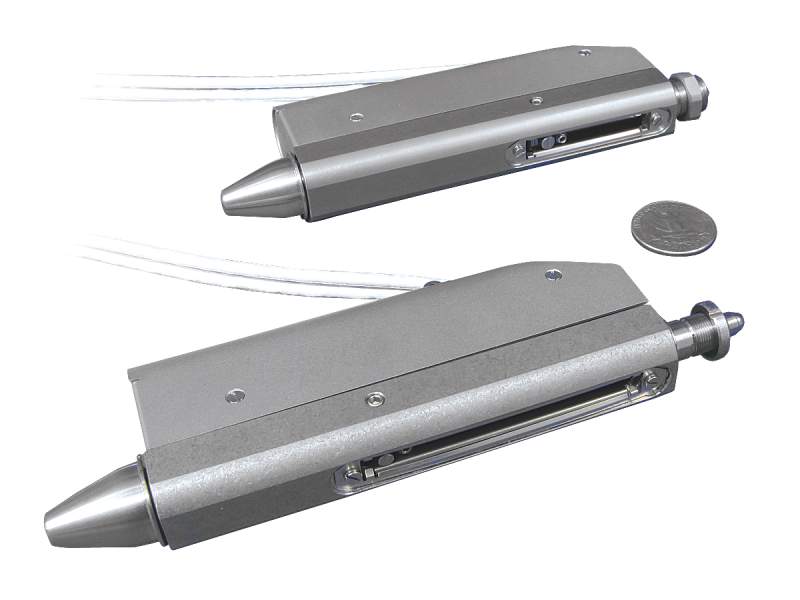

The LTA series actuators also come in two standard stepper motor models specifically designed for vacuum applications up to 10^-6 hPa and are readily available from stock.

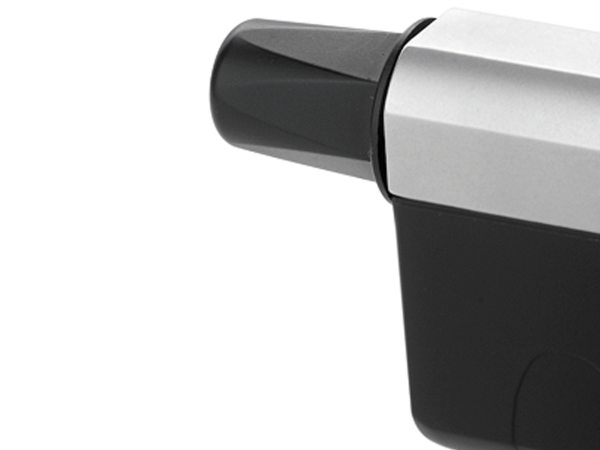

Manual Adjustment Knob

LTA Series motorized actuators provide a manual adjustment knob which permits quick positioning of the actuator when the motor is off.

Scale Position Indication and Limit Switch

LTA Actuators include a visible scale that indicates coarse actuator position in both millimeters and inches. Beneath the scale's window is an accessible trigger which, along with the Manual Adjustment Knob, can be manually set to limit the actuator's travel range.

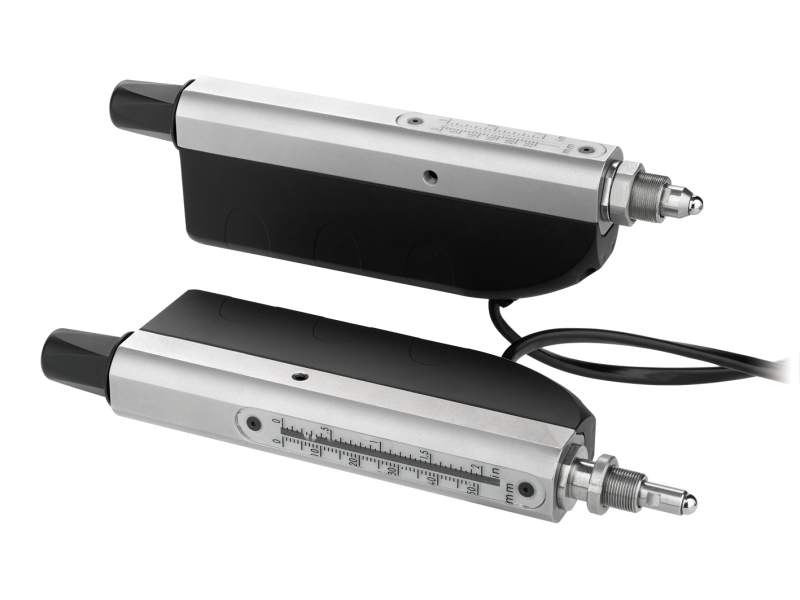

Non-rotating Actuator Tip

LTA actuators feature a non-rotating tip that prevents wear and eliminates periodic motion variations when the actuator is moving.

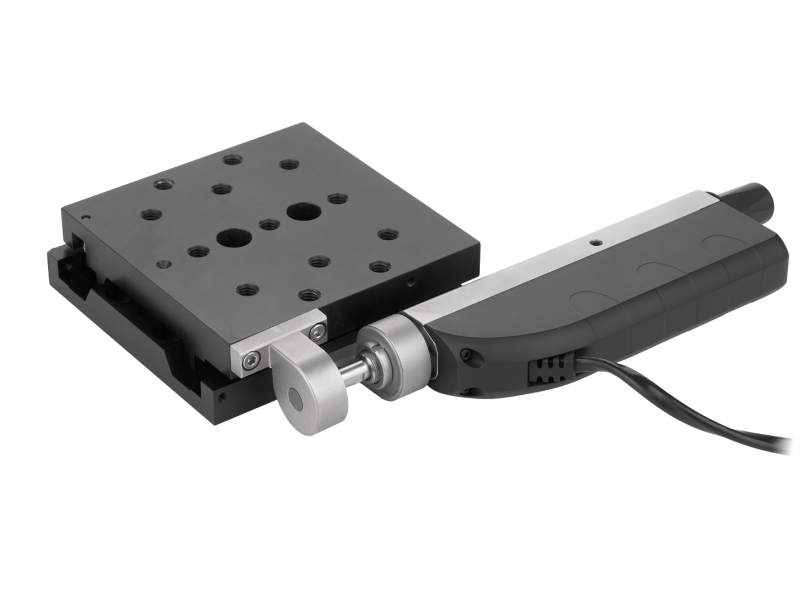

Motorize Your Existing Manual Stage

The LTA Series actuator is compatible with most standard Newport manual stages. The -HS version can be used with longer travel manual stages like the 426. For compatible manual positioners from Newport, please check our LTA Compatibility Matrix.

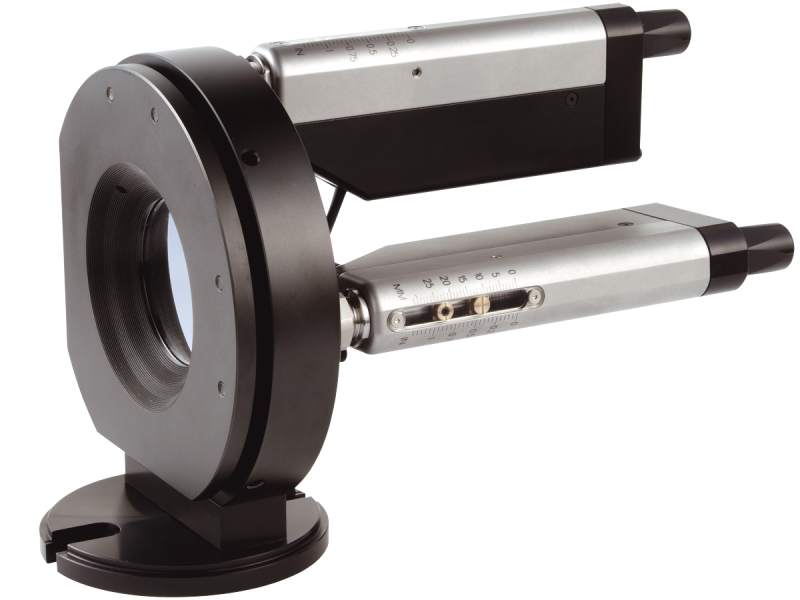

Motorize an Optical Mount

LTA actuators can replace micrometer drives on most Newport optical mounts creating automated solutions for beam control and management. They are shown with our SL51 mirror mount.

Accessories

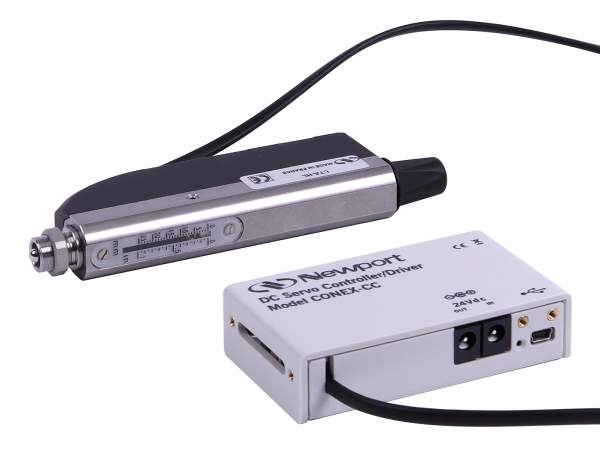

LTA Actuators with CONEX Controllers

The CONEX controller is a very compact and inexpensive driver for low power DC servo and Stepper motor driven devices like our LTA actuators. For out-of-the box control, the CONEX controller is preconfigured and delivered with the actuator.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CONEX-LTA-HSMotorized Actuator, LTA-HS Integrated with CONEX-CC Controller	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,353
		CONEX-LTA-HLMotorized Actuator, LTA-HL Integrated with CONEX-CC Controller	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,456

Mounting Accessories

Description	Compatibility	Avail.	Price

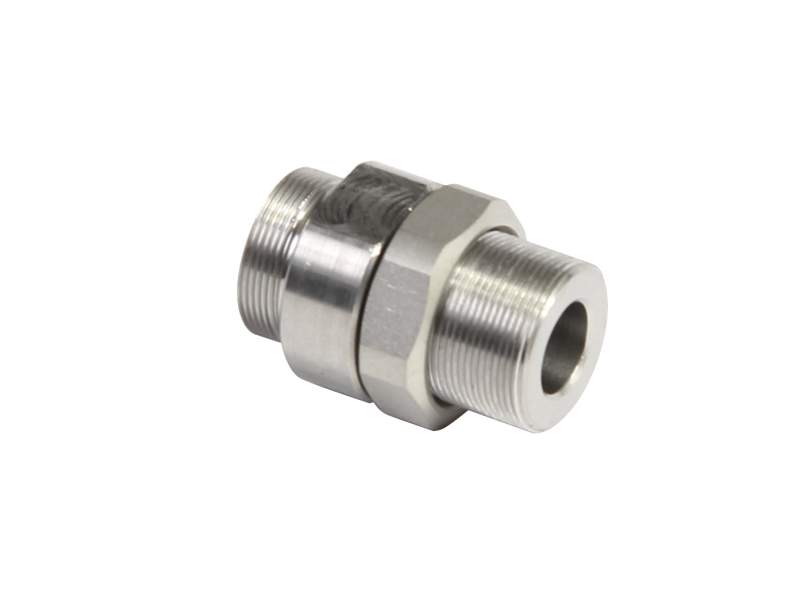

LTA-M12Mounting Adapter, LTA-HS to UMR8, MVN80 and SL	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$109

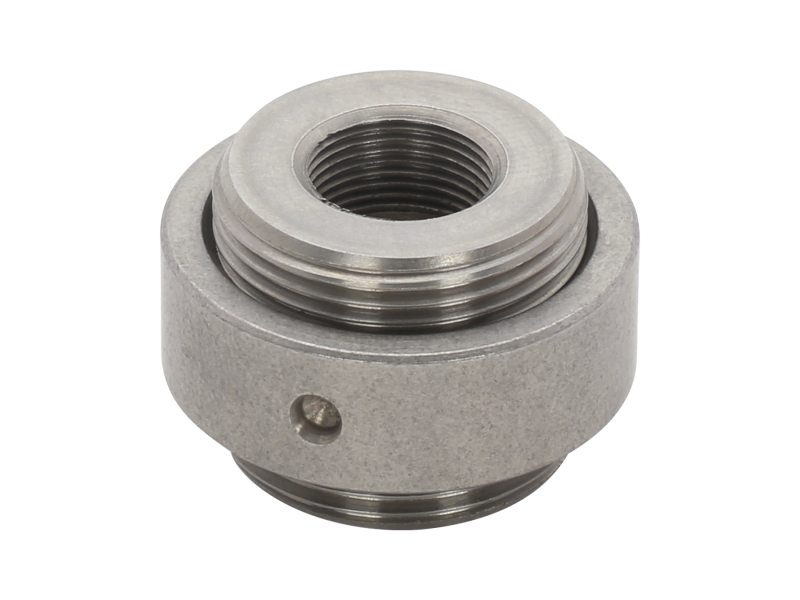

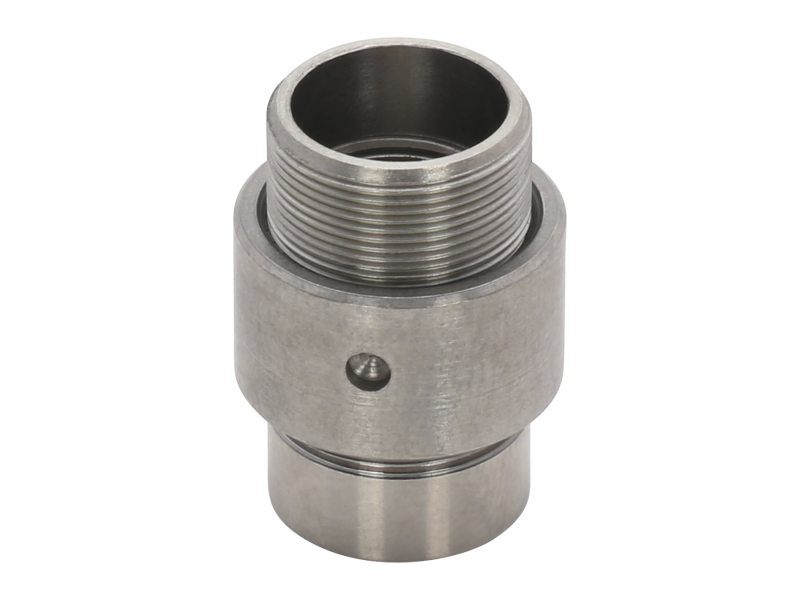

ADAPT-BM17-375Motorized Actuator Adapter, VP-25AA, LTA-HS or PZA12 to UMR8, TGN80 or MVN80	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$74
ADAPT-BM25-375Motorized Actuator Adapter, VP-25AA, LTA-HS or PZA12 to UMR12, TGN120 or MVN120	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$74

Notes:

Newport's motorized actuators can also be directly connected to numerous manual positioning products and mounts. Please see our Motorized Linear Actuator Compatibility Guide for a complete list.
