Compare Model Drawings, CAD & Specs Availability Price
Pneumatic Isolator Set, Compact, Self-Leveling, Set of 4
$1,111
In Stock
In Stock
Pneumatic Isolator, Compact, Slaved Unit without Re-leveling Valve
$433
2 Weeks
2 Weeks

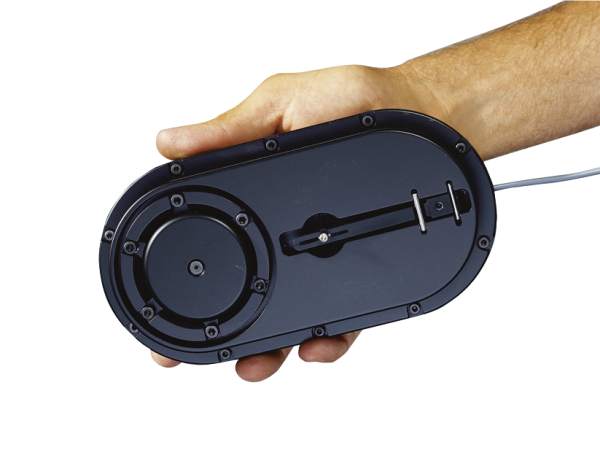

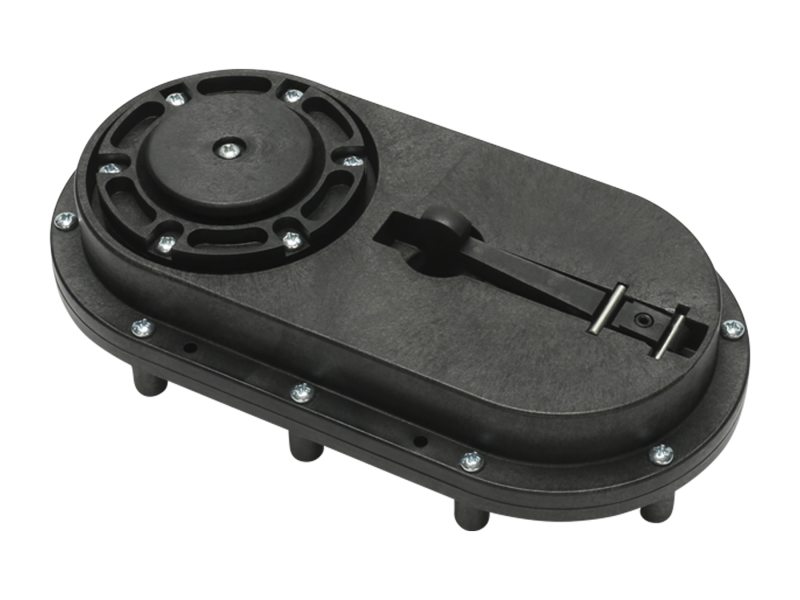

Pneumatic Isolator, Compact, Re-leveling Valve
$475
2 Weeks
2 Weeks
Pneumatic Isolator Set, Compact, Self-Leveling, Set of 3
$950
3 Weeks
3 Weeks
Pneumatic Isolator Set, Ultra-clean, Class 10, Set of 4
$1,142
5 Weeks
5 Weeks

Specifications

  • Isolator Height
    50.8 mm
  • Load Capacity per Isolator
    27 kg
  • Self Centering
    Yes
  • Releveling Accuracy
    0.6 mm
  • Horizontal Isolation, Resonance
    3.6 Hz
  • Horizontal Amplification at Resonance
    10 dB
  • Horizontal Isolation, 10 Hz
    96%
  • Vertical Isolation, Resonance
    3.2 Hz
  • Vertical Amplification at Resonance
    12 dB
  • Vertical Isolation, 10 Hz
    90%

Features
