Compare Model Drawings, CAD & Specs Length Width Availability Price
Isolation Platform, Bench Top, 16 x 20 in., Laminate Surface
$2,120
5 Weeks
20 in. 16 in.
5 Weeks
Isolation Platform, Bench Top, 20 x 24 in., Laminate Surface
3 Weeks
24 in. 20 in.
3 Weeks
Isolation Platform, Bench Top, 24 x 24 in., Laminate Surface
24 in. 24 in.
Isolation Platform, Bench Top, 24 x 30 in., Laminate Surface
30 in. 24 in.
Isolation Platform, Bench Top, 24 x 36 in., Laminate Surface
5 Weeks
36 in. 24 in.
5 Weeks
Isolation Platform, Bench Top, 16 x 20 in., Laminate Surface, Cleanroom
20 in. 16 in.
Isolation Platform, Bench Top, 20 x 24 in., Laminate Surface, Cleanroom
3 Weeks
24 in. 20 in.
3 Weeks
Isolation Platform, Bench Top, 24 x 24 in., Laminate Surface, Cleanroom
24 in. 24 in.
Isolation Platform, Bench Top, 24 x 30 in., Laminate Surface, Cleanroom
30 in. 24 in.
Isolation Platform, Bench Top, 24 x 36 in., Laminate Surface, Cleanroom
36 in. 24 in.

Specifications

  • Height
    50.8 mm
  • Maximum Load Capacity
    80 kg

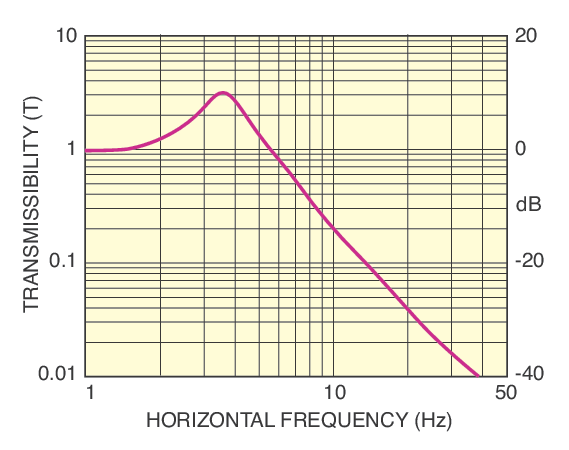

  • Horizontal Isolation, 10 Hz
    96%
  • Horizontal Isolation, Resonance
    3.6 Hz
  • Horizontal Amplification at Resonance
    10 dB

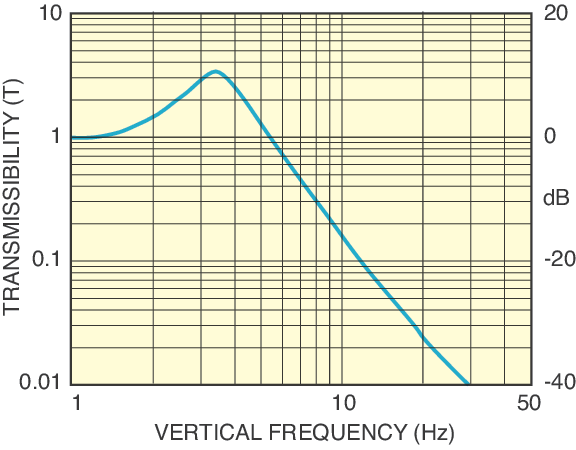

  • Vertical Isolation, 10 Hz
    90%
  • Vertical Isolation, Resonance
    3.2 Hz
  • Vertical Amplification at Resonance
    12 dB
  • Self Centering
    Yes
  • Working Surface
    white laminate
  • Releveling Accuracy
    0.6 mm

Features

Stabilizer™ Vibration Isolation Technology

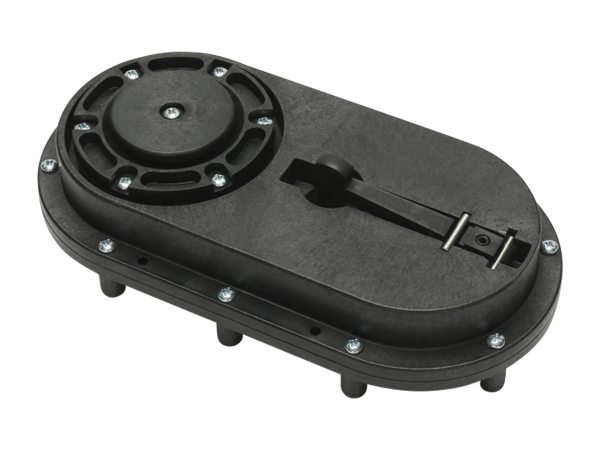

CM-225 Series Pneumatic isolators used in BT Series, featuring Stabilizer™ vbration isolation technology adapted from Newport's acclaimed Stabilizer Model S-2000 Vibration Isolators, are at the heart of the system. This technology is renowned for compact size, faster settling times, superior high-center-of-mass stability, lower natural frequency, and a patented, self-centering piston mechanism. It offers the largest compliance volume and, therefore, the best vertical isolation of any compact isolators.

Integrated Leveling Valves for Improved Repositioning Accuracy

Four isolator modules are recessed into the bottom of the platform, achieving top-notch table top vibration isolation. Each isolator module contains a pneumatic, flexible rolling diaphragm that supports the load, thereby decoupling vibrations from the isolated platform. If the platform is disturbed, the modules automatically relevel the platform using compressed air.

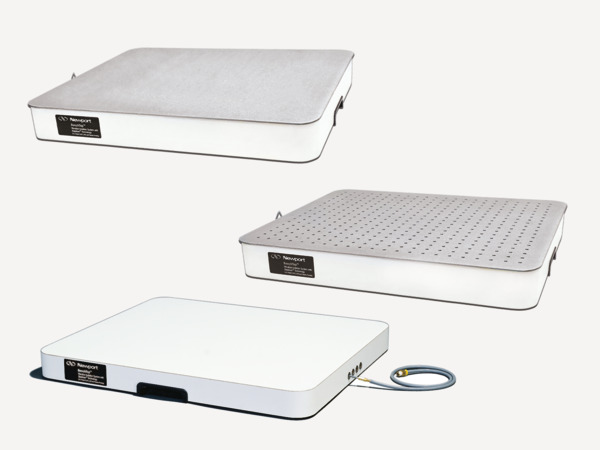

Custom Working Surfaces

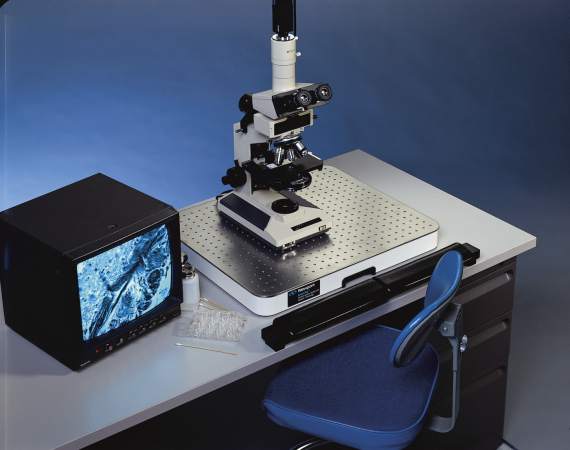

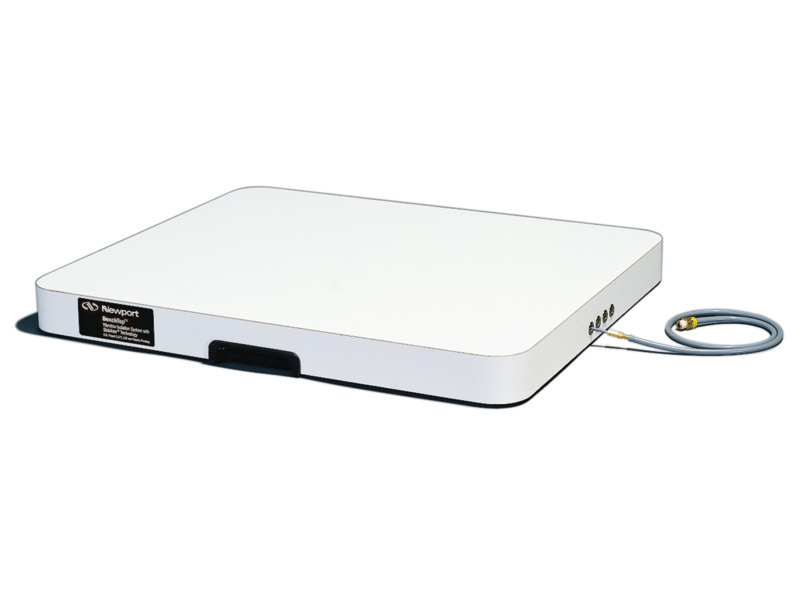

BenchTop Series is ideal for providing vibration isolation in applications involving time lapse photography, videomicroscopy, probing and manipulation of cells under high magnification. Standard platforms come with a white plastic laminated surface. Custom versions are offered with a stainless steel top and with or without mounting holes. Contact Newport for more details.

Ergonomic Mechanical Design

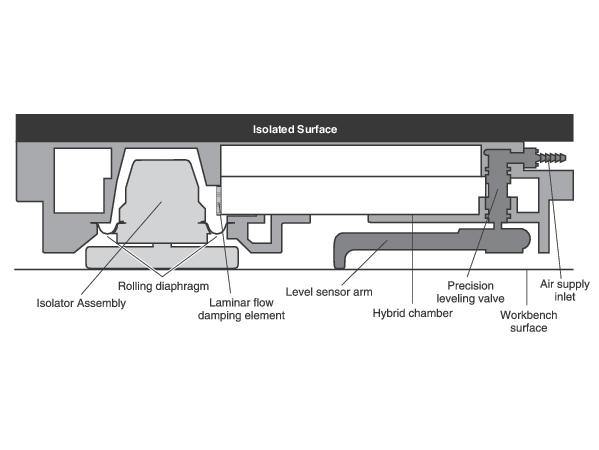

No more bulky canisters to impede instrument access, restrict arm positioning or crowd workspaces. BT’s hybrid-chamber design allows all vibration modules to be completely hidden within the platform. The BenchTop also minimizes fatigue. That’s because its low profile design adds only about two inches of height to your support surface.
