Parallel Kinematic Motion

Hexapods are ingenious and effective solutions to complex motion applications that require high load capacity and accuracy in up to six independent axes. Parallel kinematic motion devices provide six degrees of freedom (X, Y, Z, pitch, roll, and yaw) in a compact solution to multi-axis positioning. As an alternative to stacking multiple stages, hexapods have no moving cables, are lower in overall cost, and offers error compensated motion.

Innovative Actuator Joints

New ceramic spherical joints to ensure constant preload over full travel, enhancing rigidity that reduces material stress, while improving performance and avoiding corrosion.

Spherical joint to enhance stiffness in a compact, low-profile design.

High Precision Actuators

The Hexapod's top plate is driven by six, synchronized, high performance actuators with encoder feedback at the leadscrew nut to providing precise MIM, low backlash and fast speed.

RightPath™ Trajectory Control

In parallel kinematic devices, motion is synchronized on the hexapod legs; all legs start and stop at the same time and always complete the same part of the trajectory. As a result, the motion does not necessarily translate into a straight trajectory in the World coordinate system. For small motion the effect is negligible, but for larger motion it could become noticeable. Newport engineers devised a solution to minimize the runout of hexapods through RightPath™ Trajectory Control. This firmware feature is unique to Newport hexapods and enables scanning motion along three types of trajectory functions - line, arc or rotation - in either Work or Tool.

HexaViz Simulation Software

Our HexaViz hexapod simulator allows you to discover which Newport Hexapod model best fits your application needs before ordering. Newport's FREE HexaViz Hexapod Simulation Software provides an easy-to-use virtual hexapod interface to evaluate travel range, load capacity, force, and torque characteristics.

1. Select the hexapod from the data base

2. Check the travel range

  • Configure the coordinate systems
  • Display the hexapod (realistic view) and frames
  • Display the travel range: Axis by axis, 2D views or XYZ 3D view

3. Check the load capacity

  • Apply loads, forces or torque
  • Search worst case position
  • Verify if actuators are overloaded

4. Save configuration

Hexapod Motion Controllers

Our HXP-ELEC high-performance multi-axis hexapod motion controllers are dedicated for the use with Newport Hexapods. The HXP-ELEC is based on the same hardware as the Newport XPS Universal High Performance Motion Controller/Driver, however it is preconfigured with special firmware to command the Hexapod mechanics. Firmware features are designed for simplified programming and integration.  Choose the controller with the same prefix as the hexapod you would like to control.  See accessory table below for compatible controllers.

Vacuum Hexapod Applications

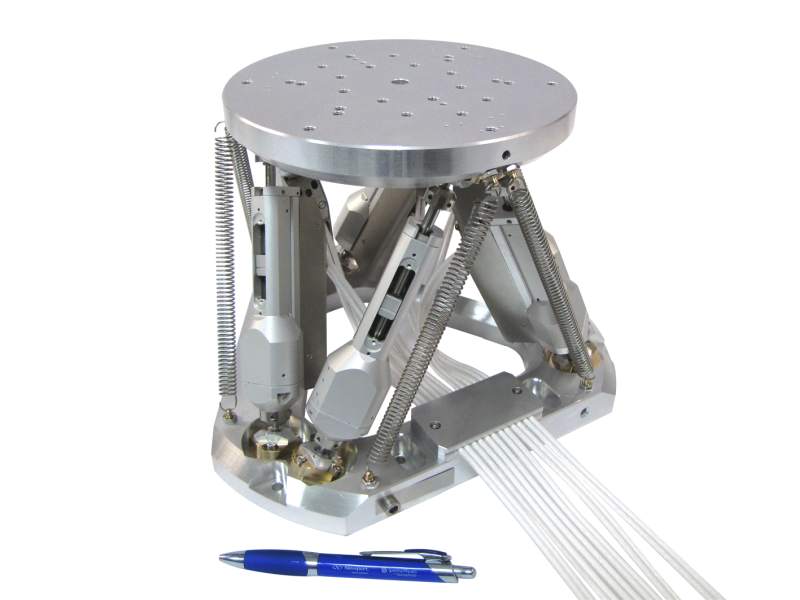

Remote positioning of a component inside a vacuum chamber is typically accomplished with a motion system. For particular applications that require more than 4 axis of motion, Newport offers standard, off-the-shelf vacuum compatible hexapods (up to 10-6 Torr) to meet this demand.

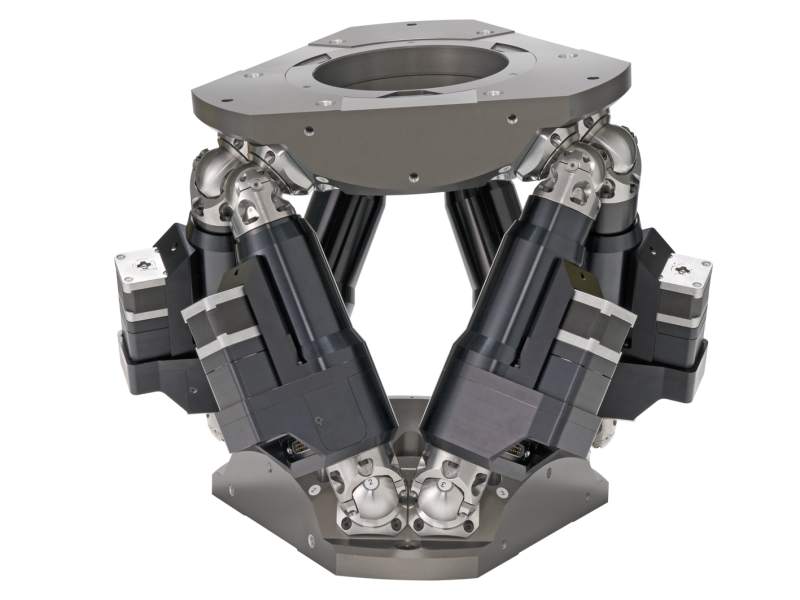

HXP50-MECA 6 Axis Hexapod

HXP100-MECA 6 Axis Hexapod
