Compare Model Drawings, CAD & Specs Mounting Holes Width Length Availability Price

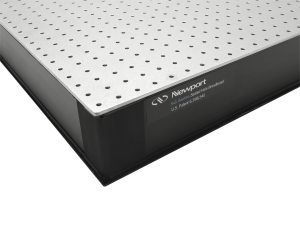

low cost composite core optical breadboard
$485
M6 300 mm 300 mm
low cost composite core optical breadboard
$555
3 Weeks
M6 300 mm 600 mm
3 Weeks
low cost composite core optical breadboard
$631
3 Weeks
M6 300 mm 900 mm
3 Weeks
low cost composite core optical breadboard
$738
3 Weeks
M6 600 mm 600 mm
3 Weeks
low cost composite core optical breadboard
$883
3 Weeks
M6 600 mm 900 mm
3 Weeks
low cost composite core optical breadboard
$485
1/4-20 12 in. 12 in.
low cost composite core optical breadboard
$555
1/4-20 12 in. 24 in.
low cost composite core optical breadboard
$631
1/4-20 12 in. 36 in.
low cost composite core optical breadboard
$738
1/4-20 24 in. 24 in.
low cost composite core optical breadboard
$883
1/4-20 24 in. 36 in.

Specifications

  • Type
    Composite Core Optical Breadboard
  • Broadband Damping
    Damped composite edge finish
  • Thickness
    1.1 in. (27.94 mm)
  • Working Surface
    0.134 in. (3.4 mm) thick 430 ferromagnetic stainless steel
  • Surface Flatness
    ±0.006 in. (0.15 mm) over 2 ft. (600 mm) square
  • Bottom Skin Material
    3.4 mm thick carbon steel
  • Microlocks
    No
  • Mounting Holes
    1/4-20
    M6 (M- Versions)
  • Mounting Hole Pattern
    1 in. grid
    25 mm grid (M- Versions)
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material

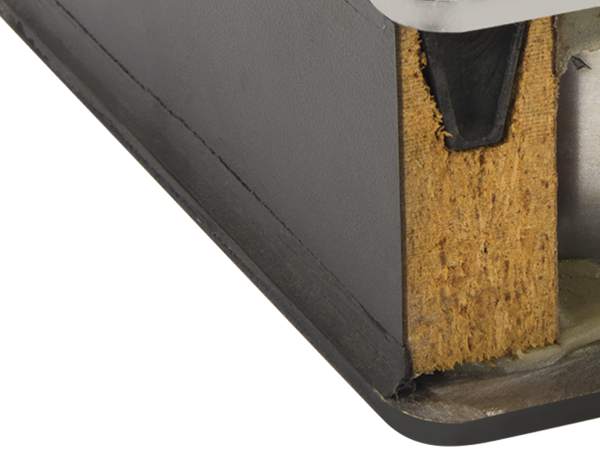

  • Core Design
    13/16 in. (20.6 mm) precision formed composite core
