Apertures

Newport aperture disks and iris diaphragms provide precise mechanical control of light intensity, enabling reliable beam shaping and management in optical experiments and OEM setups.

Apertures

Newport aperture disks and iris diaphragms provide precise mechanical control of light intensity, enabling reliable beam shaping and management in optical experiments and OEM setups.

Showing 23 products in 6 families

Show Filters:

View: Compatibility:

Collection of ID series iris diaphragms with three iris diaphragm sizes shown.

Post Mounted Iris Diaphragms

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		ID-0.5 Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves		Show	$56		ID-0.5 Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves Show $56
		ID-0.5-PK Iris Diaphragm Pack, 1 - 11 mm Aperture Range, 8-32, 10 Leaves, Qty 6		Show	$289		ID-0.5-PK Iris Diaphragm Pack, 1 - 11 mm Aperture Range, 8-32, 10 Leaves, Qty 6 Show $289
		ID-1.0 Iris Diaphragm, 1.5 to 25 mm Aperture Range, 8-32, 14 Leaves		Show	$73		ID-1.0 Iris Diaphragm, 1.5 to 25 mm Aperture Range, 8-32, 14 Leaves Show $73
		ID-1.0-PK Iris Diaphragm Pack, 1.5-25 mm Aperture Range, 8-32, 14 Leaves, Qty 6		Contact Us	$364		ID-1.0-PK Iris Diaphragm Pack, 1.5-25 mm Aperture Range, 8-32, 14 Leaves, Qty 6 Contact Us $364
		ID-1.5 Iris Diaphragm, 2.4 to 41.3 mm Aperture Range, 8-32, 18 Leaves		Show	$102		ID-1.5 Iris Diaphragm, 2.4 to 41.3 mm Aperture Range, 8-32, 18 Leaves Show $102

Viewing5 of 10 Products | View All 10 Products

Collection of ID series iris diaphragms with three iris diaphragm sizes shown.

Post Mounted Iris Diaphragms

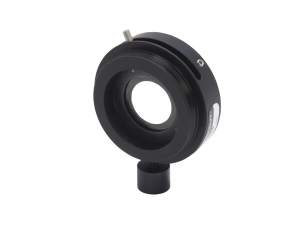

flange mounted iris diaphragm for light sources model 71400

Flange Mounted Iris Diaphragms

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		62030 Manual Iris Diaphragm, 0.08 to 1.4 in. Range, 1.5 Inch Flange		4 Weeks	$450		62030 Manual Iris Diaphragm, 0.08 to 1.4 in. Range, 1.5 Inch Flange 4 Weeks $450
		71400 Manual Iris Diaphragm, 0.04 to 1.0 in. Range, 1.5 Inch Flange		3 Weeks	$230		71400 Manual Iris Diaphragm, 0.04 to 1.0 in. Range, 1.5 Inch Flange 3 Weeks $230

Viewing2 of 2 Products | View All 2 Products

flange mounted iris diaphragm for light sources model 71400

Flange Mounted Iris Diaphragms

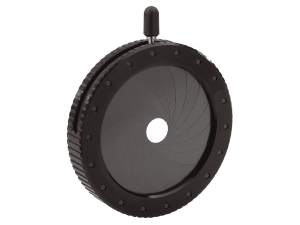

iris diaphragm model m-di47.50

Ring Actuated Iris Diaphragms

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		M-DI47.50 Iris Diaphragm, Continuously Variable 5 to 49 mm Aperture		Show	$259		M-DI47.50 Iris Diaphragm, Continuously Variable 5 to 49 mm Aperture Show $259
		M-DI47.68 Iris Diaphragm, Continuously Variable 7 to 73 mm Aperture		Show	$272		M-DI47.68 Iris Diaphragm, Continuously Variable 7 to 73 mm Aperture Show $272

Viewing2 of 2 Products | View All 2 Products

iris diaphragm model m-di47.50

Ring Actuated Iris Diaphragms

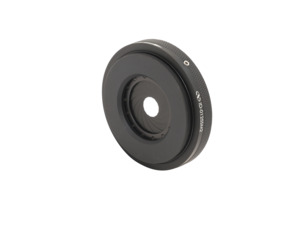

Ring Actuated Threaded Iris Diaphragms

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		ID-0112SM1 SM1 Threaded Iris Diaphragm, Ring-Actuated, 1-12 mm Aperture Range		Show	$89		ID-0112SM1 SM1 Threaded Iris Diaphragm, Ring-Actuated, 1-12 mm Aperture Range Show $89
		ID-0112SM1G SM1 Threaded Iris Diaphragm, Ring-Actuated, Graduated, 1-12 mm Aperture Range		Show	$135		ID-0112SM1G SM1 Threaded Iris Diaphragm, Ring-Actuated, Graduated, 1-12 mm Aperture Range Show $135
		ID-0125SM2 SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range		Show	$108		ID-0125SM2 SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range Show $108

Viewing3 of 3 Products | View All 3 Products

Ring Actuated Threaded Iris Diaphragms

Compact Adjustable Width Slit

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		M-SV-0.5 Adjustable Width Slit, Micrometer Driven, M4 Thread, Metric		Show	$357		M-SV-0.5 Adjustable Width Slit, Micrometer Driven, M4 Thread, Metric Show $357
		SV-0.5 Adjustable Width Slit, Micrometer Driven, 8-32 Thread		Show	$357		SV-0.5 Adjustable Width Slit, Micrometer Driven, 8-32 Thread Show $357

Viewing2 of 2 Products | View All 2 Products

Compact Adjustable Width Slit

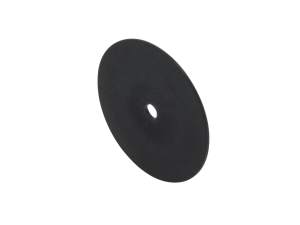

beam aperture disk model 70277

Beam Aperture Disks

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		70275 Beam Aperture Disk, 1.0 inch Diameter, 0.4 inch Aperture		Show	$80		70275 Beam Aperture Disk, 1.0 inch Diameter, 0.4 inch Aperture Show $80
		70276 Beam Aperture Disk, 1.0 inch Diameter, 0.2 inch Aperture		Show	$65		70276 Beam Aperture Disk, 1.0 inch Diameter, 0.2 inch Aperture Show $65
		70277 Beam Aperture Disk, 1.0 inch Diameter, 0.1 inch Aperture		Show	$65		70277 Beam Aperture Disk, 1.0 inch Diameter, 0.1 inch Aperture Show $65
		70291 Beam Aperture Disk, 1.0 inch Diameter, 0.04 inch Aperture		Show	$50		70291 Beam Aperture Disk, 1.0 inch Diameter, 0.04 inch Aperture Show $50

Viewing4 of 4 Products | View All 4 Products

beam aperture disk model 70277

Beam Aperture Disks

See Also

Spatial Filters
