Compare Model Drawings, CAD & Specs Detector Model Power Meter Model Spectral Range Maximum Measurable Power Maximum Measurable Power Without Attenuator Availability Price
PMKIT
Contact Us
 PMKIT Configurable Configurable
Contact Us
PMKIT-05-01
$1,625
6 Weeks
 PMKIT-05-01 818-UV/DB 843-R 200 to 1100 nm 1.5 W 5 mW (200 - 400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)
6 Weeks
 $1,625
PMKIT-06-01
$1,547
6 Weeks

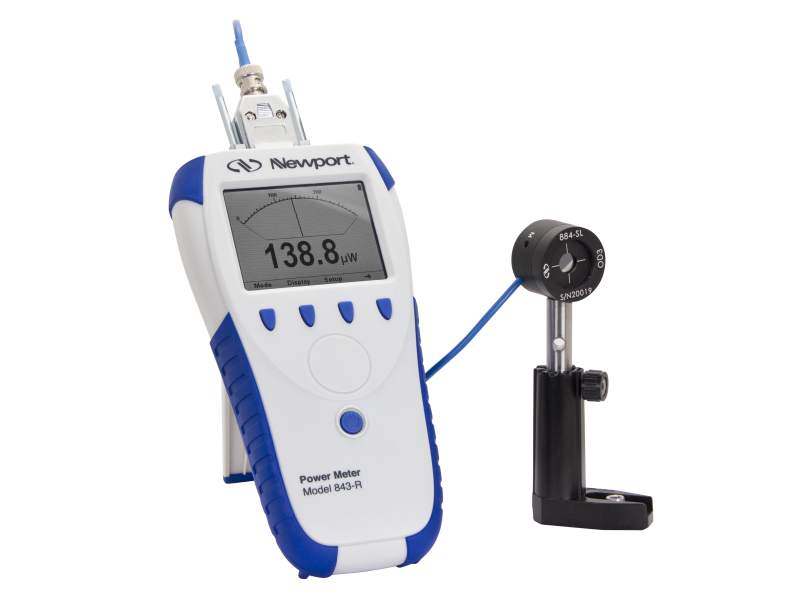

 PMKIT-06-01 818-SL/DB 843-R 400 to 1100 nm 2 W 2.5 mW
6 Weeks
 $1,547
PMKIT-07-01
$1,678
Contact Us
 PMKIT-07-01 818-IR/DB 843-R 780 to 1800 nm 1.3 W 1.3 mW
Contact Us
 $1,678
PMKIT-15-01
$1,698
Contact Us
 PMKIT-15-01 818-ST2/DB 843-R 400 to 1100 nm 2 W 2.5 mW
Contact Us
 $1,698
PMKIT-21-01
$2,267
Contact Us
 PMKIT-21-01 919P-003-10 843-R 190 to 10,600 nm 3 W N/A
Contact Us
 $2,267
PMKIT-22-01
$1,895
Contact Us
 PMKIT-22-01 919P-010-16 843-R 190 to 10,600 nm 10 W N/A
Contact Us
 $1,895
PMKIT-24-01
$2,122
Contact Us
 PMKIT-24-01 919P-030-18 843-R 190 to 10,600 nm 30 W N/A
Contact Us
 $2,122

Features

Kits Offer Bundle Savings

These kits are ideal for those who are new to optical measurements and who need simple measurement tools. All kits include SP-3 and M-SP-3 mounting posts and BPH-3 slotted-base post holder. You can order either a pre-configured kit or you can configure your own set of power meter and detector using the model number PMKIT. 843-R, 843-R-USB, and 1919-R power meters come with a plastic carrying case.

Easily Expandable

It is easy to expand the capabilities of your power measurement products after purchasing the power meter kit.  Thanks to the large number of compatible products available at Newport, you can simply purchase another detector, a meter, or optomechanical components as new requirements arise.

Pre-configured PMKIT-xx-xx

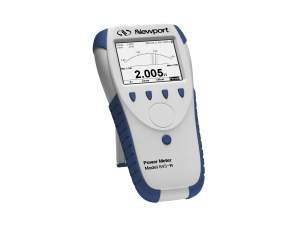

Pre-configured power meter kits have been updated with new power meters and detectors (available globally). Several popular pre-configured PMKITs are stock items and are available for immediate shipping. The kits now include 843-R optical power meter instead of the obsolete 1916-R or 1917-R power meters. The kits with the 818P series thermopile detectors have been replaced by the new Thermopile Sensors. See Ordering Table for the available models.

Configurable PMKIT

The configurable PMKIT allows the customers to configure their own kit from an expanded selection including 4 models of power meters, including 843-R, 843-R-USB, 841-PE-USB, and 1919-R, and a broad range of photodiode and thermopile detectors listed in the PMKIT Power Meter Kit Datasheet. This configuration must be quoted and is not available for online purchase. This configurable PMKIT is currently not offered in Europe.
