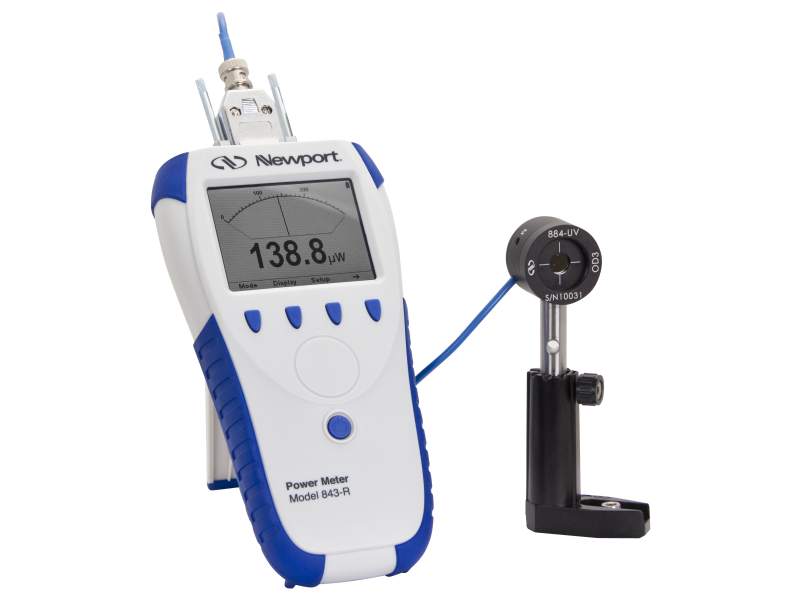

Optical Power Meter Kit, 843-R-USB, 818-UV/DB Sensor, 200-1100 nm

The PMKIT-05-03 can measure optical power level in the 200 - 1100 nm wavelength range. Power meter kits are especially useful for those who are new to optical measurements and who need simple measurement tools. Save big when purchased as a kit. The kit includes the following components:

Model optical power meter
Model UV Silicon photodiode detector
Post and post holder fork

For specifications, refer to individual product web pages. Please refer to our Optical Power Meter Selection Guide and Calibrated Detector Selection Guide to review the complete Newport offering.

Specifications

Technical Specs

Detector Model
818-UV/DB
Power Meter Model
843-R-USB
Spectral Range
200 - 1100 nm
Maximum Measurable Power
1.5 W

Maximum Measurable Power Without Attenuator
400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)
Maximum Pulse Energy Without Attenuator
3.4% (190-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)

Detector Model
818-UV/DB
Power Meter Model
843-R-USB
Spectral Range
200 - 1100 nm
Maximum Measurable Power
1.5 W

Maximum Measurable Power Without Attenuator
400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)
Maximum Pulse Energy Without Attenuator
3.4% (190-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)
