Pneumatic Isolator Set, Compact, Self-Leveling, Set of 4
Pneumatic Isolator Set, Compact, Self-Leveling, Set of 4
Model: CM-225
Product Series Overview

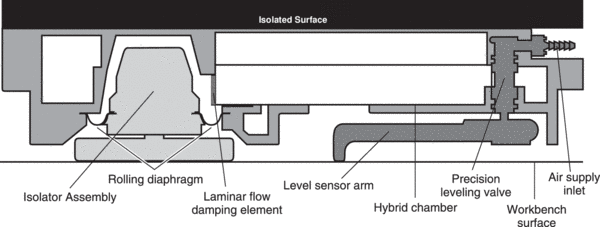

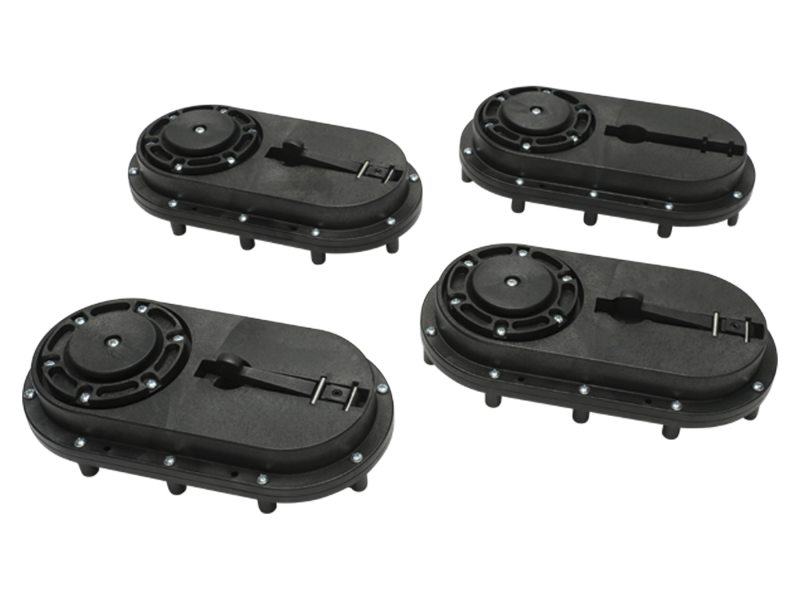

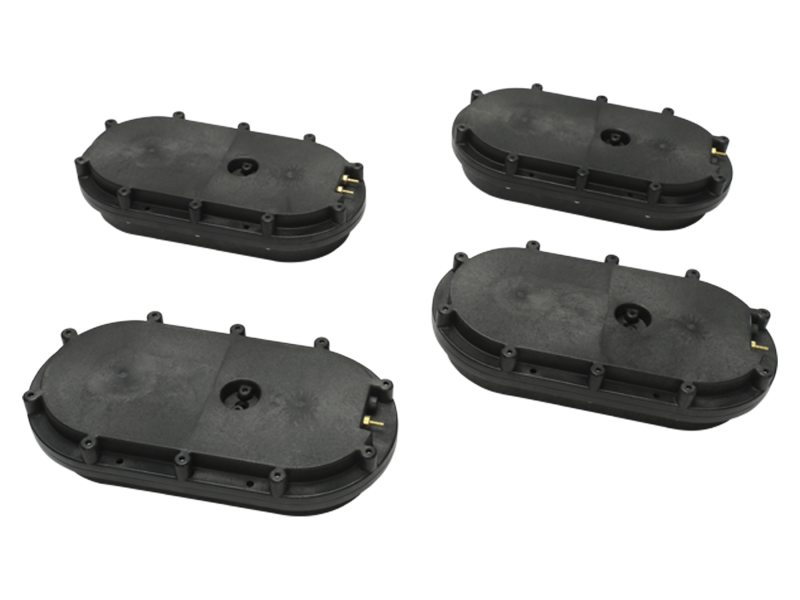

Self-Leveling Compact Pneumatic Vibration IsolatorsThe CM-225 Isolator System includes (4) isolators providing excellent pneumatic vibration isolation for platform loads up to 225 lbs. Featuring our unique Stabilizer™ hybrid chamber design, these isolators offer the largest compliance volume, and therefore the best vertical isolation of any compact isolators. The extremely low profile design allows integration into a large variety of small machines. Automatic releveling maintains platform stability.
Specifications
- Isolator Height50.8 mm
- Load Capacity per Isolator27 kg
- Number of Isolators4
- Self CenteringYes
- Releveling Accuracy0.6 mm
- Horizontal Isolation, Resonance3.6 Hz
- Horizontal Amplification at Resonance10 dB
- Horizontal Isolation, 10 Hz80%
- Vertical Isolation, Resonance3.2 Hz
- Vertical Amplification at Resonance12 dB
- Vertical Isolation, 10 Hz84%
Resources & Downloads
3D Product Models
Other
CM-225 RoHS Certificate(278.1 kB, PDF)
2D Product Drawings
CM-225 OUTLINE.PDF(84 kB, PDF)
Manuals
CM-225 Users Manual(941.2 kB, PDF)
