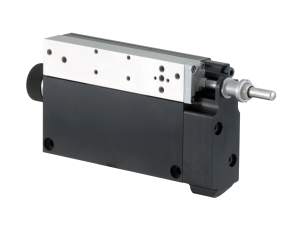

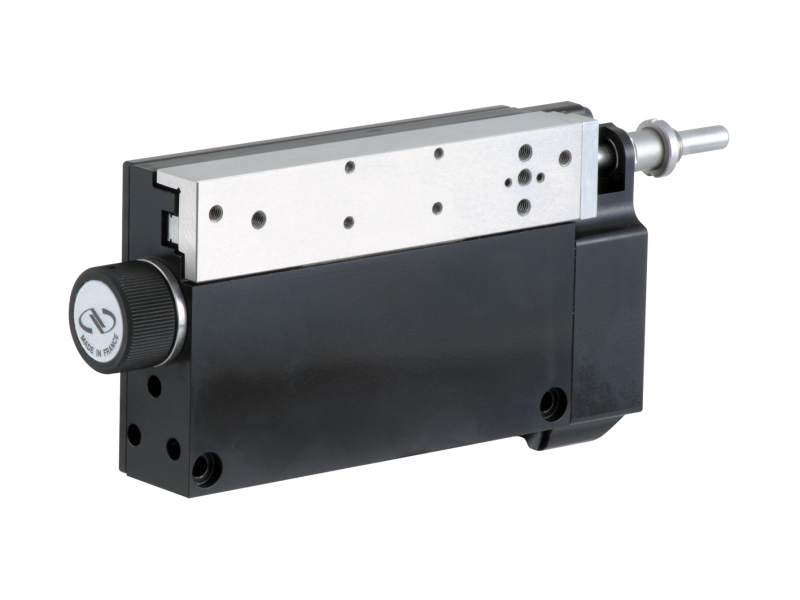

VP-25AA High-Precision and Reliability Motorized Actuator
VP-25AA High-Precision and Reliability Motorized Actuator
Newport's VP-25AA 25 mm travel actuator offers the highest accuracy and repeatability for the most demanding positioning applications.
- Integrated linear encoder for exceptional repeatability and accuracy
- Non-rotating tip eliminates periodic motion variations
- Can be used as a single rail linear stage
- Very low friction design provides high sensitivity with 0.1 µm MIM
- Convenient manual adjustment knob
- 20,000 hr MTBF See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | VP-25AAMotorized Actuator, High-Precision, 25 mm Travel Range |
Compatible Controllers
Compatible motion controllers for the VP-25AA actuator are:
- XPS-RLD Motion Controller (
or Axis): Requires an Driver Module. - XPS-D Motion Controller (
, , or Axis): Requires an Driver Module. - ESP302 Motion Controller (
, , or Axis): Plug and Play compatible with ESP302 Motion Controller. Single Axis Motion Controller.
Specifications
- Travel Range25 mm
- Maximum Speed25 mm/s
- Minimum Incremental Motion0.10 μm
- Push Force40 N
- Accuracy, Typical±0.5 µm
- Accuracy, Guaranteed±1.0 µm
- Bi-directional Repeatability, Typical±0.2 µm
- Bi-directional Repeatability, Guaranteed±0.30 µm
- Uni-directional Repeatability, Typical±0.04 µm
- Uni-directional Repeatability, Guaranteed±0.10 µm
- Drive Screw Pitch1 mm
- OriginOptical, centered
- Origin Repeatability±0.05 µm
- Encoder Resolution0.1 µm
- Limit SwitchesOptical
- Cable Length1.5 m
- ConnectorsDB25 - Male
- Power Consumption48 W
- Weight1.0 kg
- MTBF20,000 h (25% load, 30% duty cycle)
- Maximum Power Consumption30 W
- ComplianceRoHS 3, CE
Features

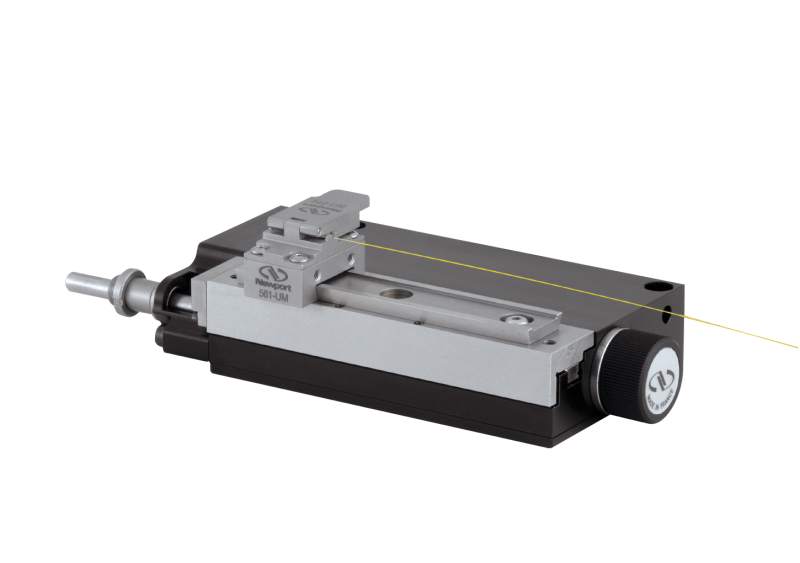

Single Rail Linear Stage Applications
The VP-25AA's actuator top rail can be used as a single-rail linear stage to position small and light weight parts with the optional 561-RAIL rails. It can be used to position optical fibers, micro-optics, sensors, or other small and lightweight parts. For added versatility, a mounting interface for a dovetail rail compatible with the popular ULTRAlign™ positioning system is provided. This system offers a wide selection of interchangeable mounts for optical fibers, fiber arrays, objectives, or GRIN lenses in a variety of fiber alignment applications.
Non-rotating tip
The non-rotating tip is essential to eliminate undesirable periodic motion variations caused by the variable contact made between the actuator tip and the mating surface.

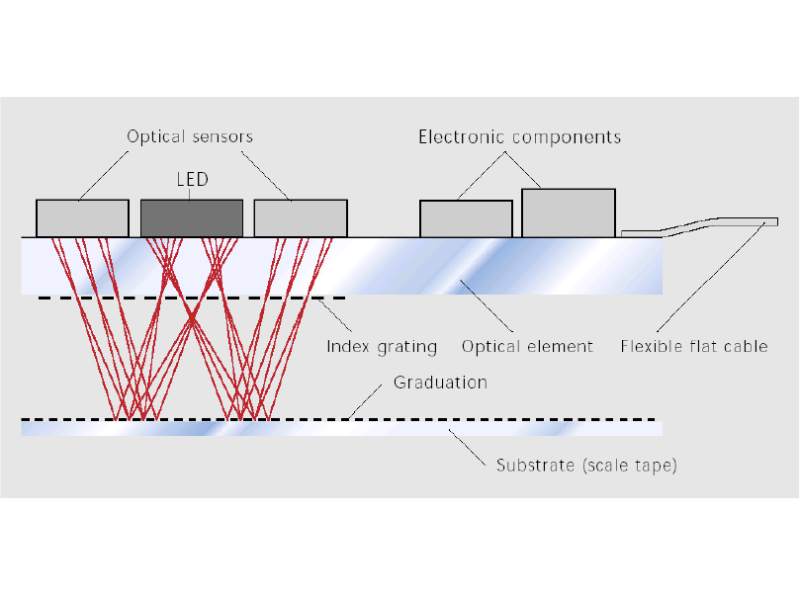

Integrated Linear Encoder

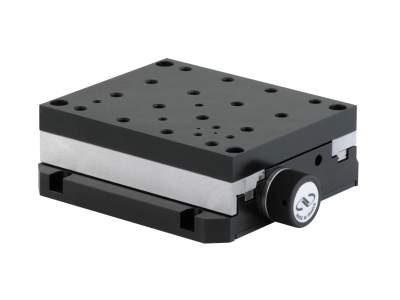

The VP-25AA is based on the same innovative design used in the VP-25XA linear stages and features a high-resolution linear scale encoder for exceptional repeatability and accuracy. The scale is fixed on a moving rail to which the actuator’s tip is permanently attached without any contact to the mounting shaft. This concept eliminates all drivetrain induced motion errors and minimizes hysteresis between the scale and the actuator tip.
Accessories
UMR Stage Adaptors
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | ADAPT-BM17-375Motorized Actuator Adapter, VP-25AA, LTA-HS or PZA12 to UMR8, TGN80 or MVN80 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | ADAPT-BM25-375Motorized Actuator Adapter, VP-25AA, LTA-HS or PZA12 to UMR12, TGN120 or MVN120 | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Compatible Optical Rails
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

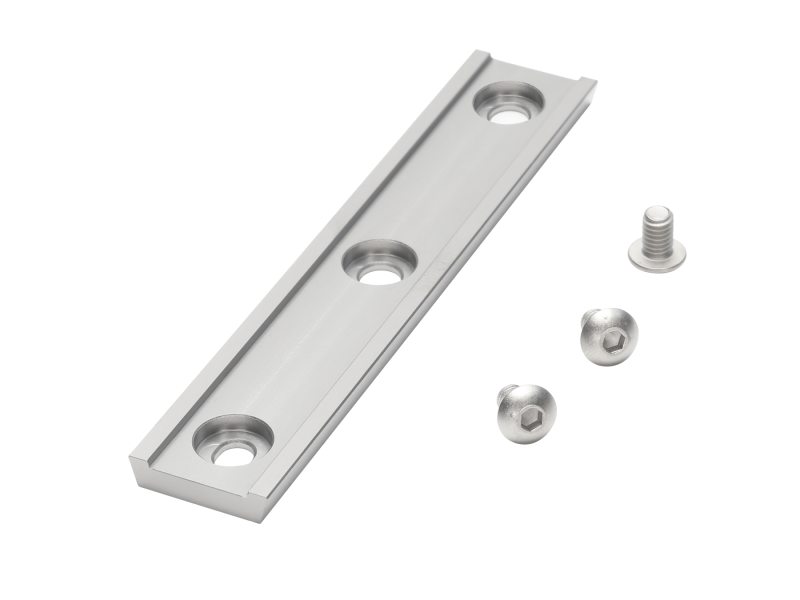

 | 562-RAIL-3.7Dovetail Rail, ULTRAlign Series, 3.7 in. Length | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 561-RAIL-1Dovetail Rail, ULTRAlign Series, 1.0 in. Length | FREE 2-day shipping on thousands of products on Newport.com Learn More |
