TRB Compact Motorized Actuators

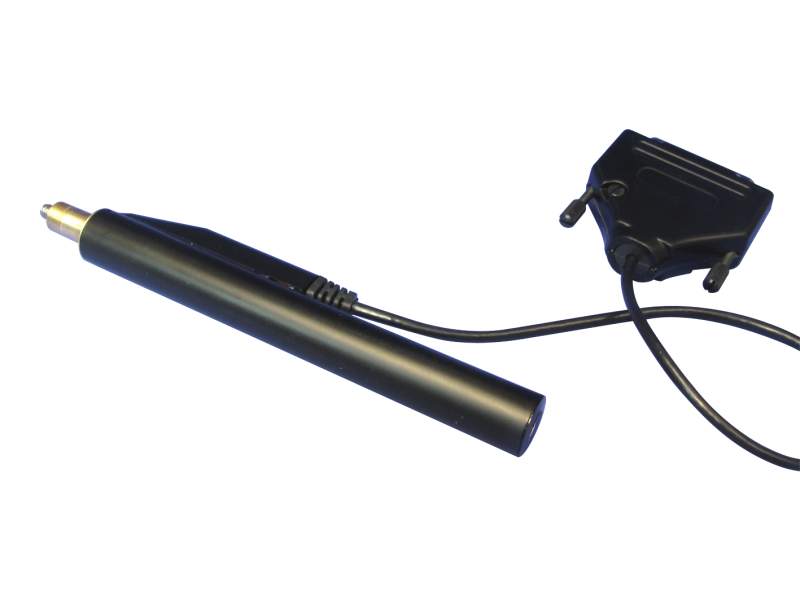

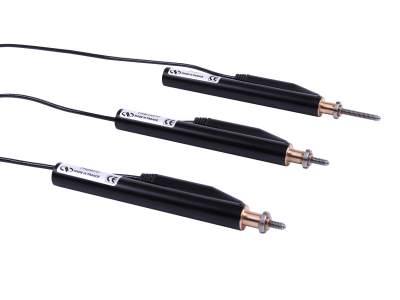

TRB linear actuators offer mid-range load capacity with a wide range of travel and motor choices. They can easily motorize manual positioners and mirror mounts with flexible cable routing and a non-reflective surface coating.

Slim and lightweight design
Flexible cable routing on the side
Integrated optical limit switches
Used to motorize manual stages and mounts

See All Features

Show Filters:

Showing 6 of 6 total products

Compatibility:

Description	Compatibility	Travel Range	Minimum Incremental Motion	Maximum Speed	Avail.	Price
TRB6CCMotorized Actuator, Compact, 6 mm Travel, DC Servo Motor, 90N	UNIVERSAL	6 mm	0.10 µm	2 mm/s		$1,593
TRB12CCMotorized Actuator, Compact, 12 mm Travel, DC Servo Motor, 90N	UNIVERSAL	12 mm	0.10 µm	2 mm/s	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,691
TRB25CCMotorized Actuator, Compact, 25 mm Travel, DC Servo Motor, 90N	UNIVERSAL	25 mm	0.10 µm	2 mm/s		$1,748
TRB6PPMotorized Actuator, Compact, 6 mm Travel, Stepper Motor	UNIVERSAL	6 mm	0.10 µm	0.3 mm/s		$1,431
TRB12PPMotorized Actuator, Compact, 12 mm Travel, Stepper Motor	UNIVERSAL	12 mm	0.10 µm	0.3 mm/s		$1,547
TRB25PPMotorized Actuator, Compact, 25 mm Travel, Stepper Motor	UNIVERSAL	25 mm	0.10 µm	0.3 mm/s	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,576

Notes:

CONEX Controller versions are also available.

Compatible Controllers

Compatible motion controllers for the TRB actuators are:

XPS-RLD Motion Controller ( or Axis): Requires an ^* Driver Module.
XPS-D Motion Controller (, , or Axis): Requires an Driver Module.
ESP302 Motion Controller (, , or Axis): Plug and Play compatible with ESP302^** Motion Controller.

The TRB-CC actuators are also compatible with Single Axis Motion Controller, and the TRB-PP actuators are compatible with ** Single Axis Motion Controller .

* When used with XPS-RLD, plug XPS-DRV01 to slots other than slot 1.
** When used with ESP302 or SMC100PP, the maximum speed of TRB-PP is reduced to 0.12 mm/s.

Specifications

Models
Travel Range	6 mm	12 mm	25 mm
Push Force	90 N	90 N	90 N
Minimum Incremental Motion	0.10 µm	0.10 µm	0.10 µm
Maximum Speed	2 mm/s	2 mm/s	2 mm/s
Accuracy, Typical	±2.0 µm	±2.0 µm	±2.0 µm
Accuracy, Guaranteed	±3.0 µm	±4.0 µm	±5.0 µm
Uni-directional Repeatability, Typical	±0.05 µm	±0.08 µm	±0.08 µm
Uni-directional Repeatability, Guaranteed	±0.25 µm	±0.25 µm	±0.25 µm
Bi-directional Repeatability, Typical	±0.13 µm	±0.13 µm	±0.15 µm
Bi-directional Repeatability, Guaranteed	±0.75 µm	±0.75 µm	±0.75 µm
Origin Repeatability	±2 µm	±2 µm	±2 µm
Cable Length	1.5 m	1.5 m	1.5 m
Power Consumption	10 W	10 W	10 W
Weight	0.23 kg	0.23 kg	0.23 kg
MTBF	10000 h (25N load, 10% duty cycle)	10000 h (25N load, 10% duty cycle)	10000 h (25N load, 10% duty cycle)

Models
Travel Range	6 mm	12 mm	25 mm
Push Force	90 N	90 N	90 N
Minimum Incremental Motion	0.10 µm	0.10 µm	0.10 µm
Maximum Speed	0.3 mm/s	0.3 mm/s	0.3 mm/s
Accuracy, Typical	±2.0 µm	±2.0 µm	±2.0 µm
Accuracy, Guaranteed	±4.0 µm	±4.0 µm	±5.0 µm
Uni-directional Repeatability, Typical	±0.08 µm	±0.08 µm	±0.08 µm
Uni-directional Repeatability, Guaranteed	±0.25 µm	±0.25 µm	±0.25 µm
Bi-directional Repeatability, Typical	±0.15 µm	±0.15 µm	±0.15 µm
Bi-directional Repeatability, Guaranteed	±0.75 µm	±0.75 µm	±0.75 µm
Origin Repeatability	±2 µm	±2 µm	±2 µm
Cable Length	1.5 m	1.5 m	1.5 m
Power Consumption	10 W	10 W	10 W
Weight	0.23 kg	0.23 kg	0.23 kg
MTBF	10000 h (25N load, 10% duty cycle)	10000 h (25N load, 10% duty cycle)	10000 h (25N load, 10% duty cycle)

Features

Slim/Lightweight Design

The TRB series actuators feature a slim, light-weight design that allows them to be used in compact spaces with a variety of manual stages, mirror mounts, and OEM applications.

CONEX Controller Versions

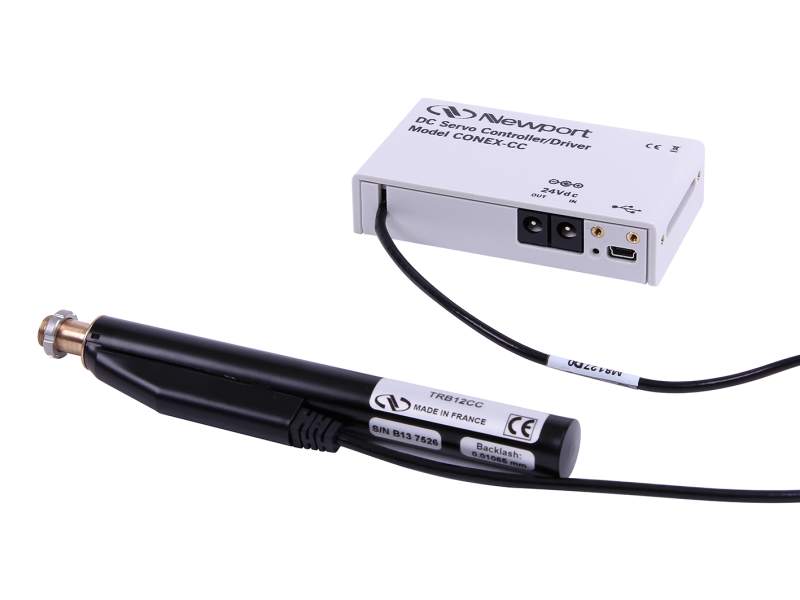

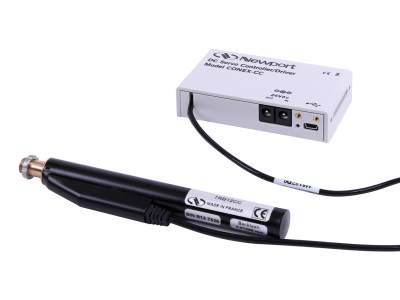

Newport also offers versions of the DC servo motor linear actuators with integrated CONEX motion controller. For out-of-the box control, the CONEX controller is preconfigured and delivered with the TRB-CC actuator.

Replace Manual Actuators on Stages and Mounts

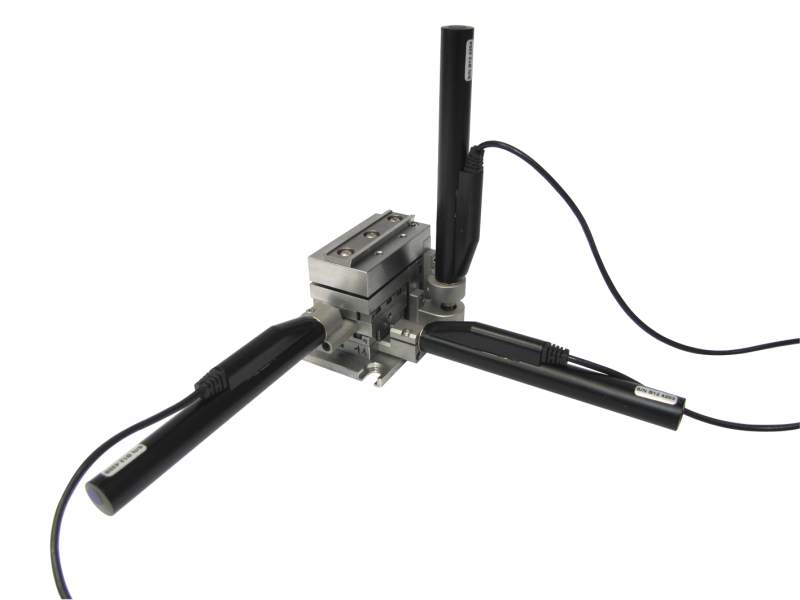

TRB actuators work great as replacements for adjustment screws or micrometers on manual stages and optical mounts. For more details refer to the TRA and TRB Series Compatibility guide. Once upgraded, the set-up can be automated for hands-free positioning or controlled remotely.

Hard-Coated Steel Ball Tip

TRB actuators feature a hard-coated steel ball tip that minimizes wear on the contact surface when compared to other designs using regular steel ball tips.

Optical Limit Switches

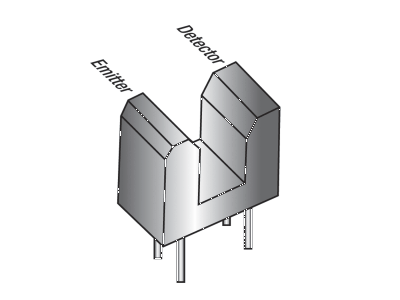

All TRB actuators include integrated optical limit switches to protect your investment from over travel damage. It also provides a method for repeatable referencing and homing after power up.

Flexible Cable Routing

The cable outlet of TRB actuators is located on the side, which provides more flexibility for cable routing and cable management. This also reduces the overall length of the actuator compared to actuators with a rear cable outlet.

Installing TRB Actuators on a 561-GON

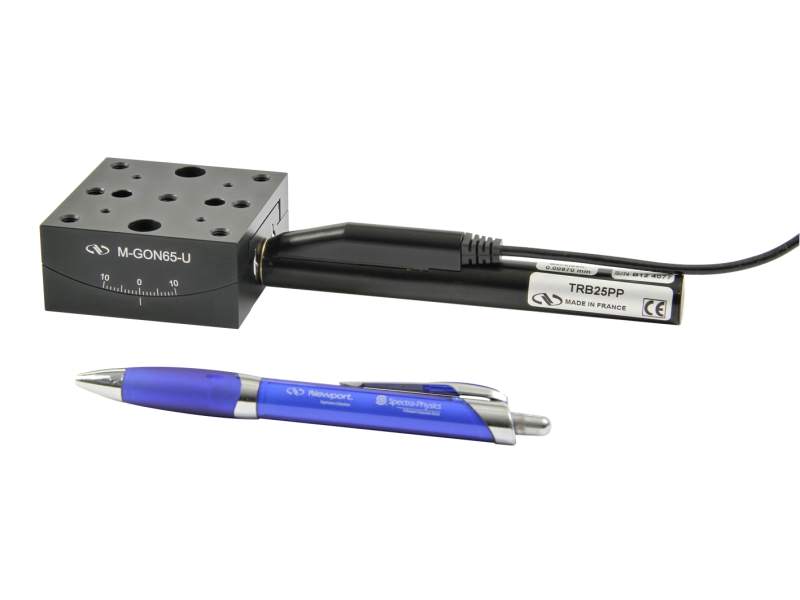

Installing TRB Actuators on a RS65

Accessories

CONEX-CC Version

Description	Compatibility	Avail.	Price
CONEX-TRB6CCLinear Actuator, DC Servo, 6 mm Travel, TRABCC and CONEX-CC Controller	UNIVERSAL		$2,363
CONEX-TRB12CCLinear Actuator, DC Servo, 12 mm Travel, TRB12CC and CONEX-CC Controller	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,363
CONEX-TRB25CCLinear Actuator, DC Servo, 25 mm Travel, TRB25CC and CONEX-CC Controller	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,439

Adapters

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		ADAPT-TRA25Actuator Adapter, TRA25, Opto-Mechanical Components	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$94

Notes:

Newport's motorized actuators can also be directly connected to numerous manual positioning products and mounts. Please see our Motorized Linear Actuator Compatibility Guide for a complete list.
