Motorized Actuator, Compact, 6 mm Travel, DC Servo Motor, 90N

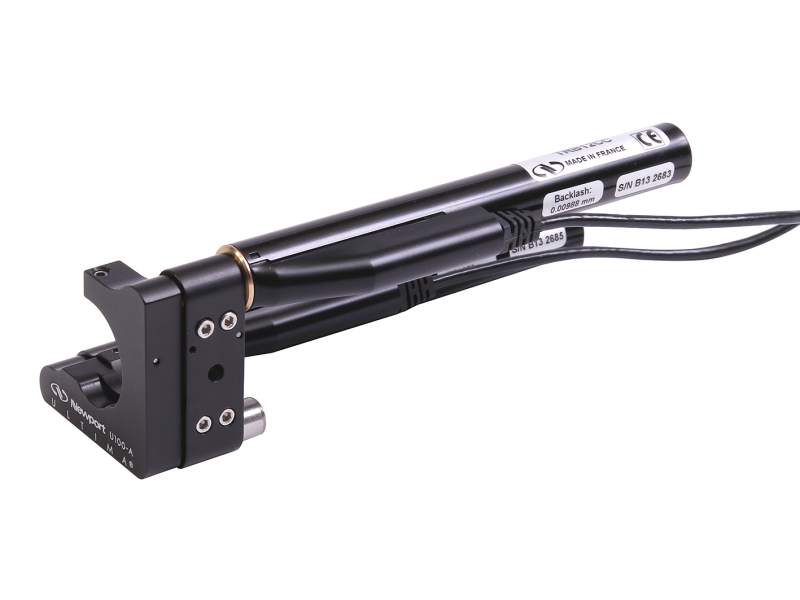

The TRB6CC Compact DC Servo Actuator provides 6 mm travel with sub-micron MIM, very good repeatability and high push force. TRB actuators can replace micrometers which are used a wide variety of linear stages, mirror mounts, and OEM applications.

Replace Manual Actuators on Stages and Mounts

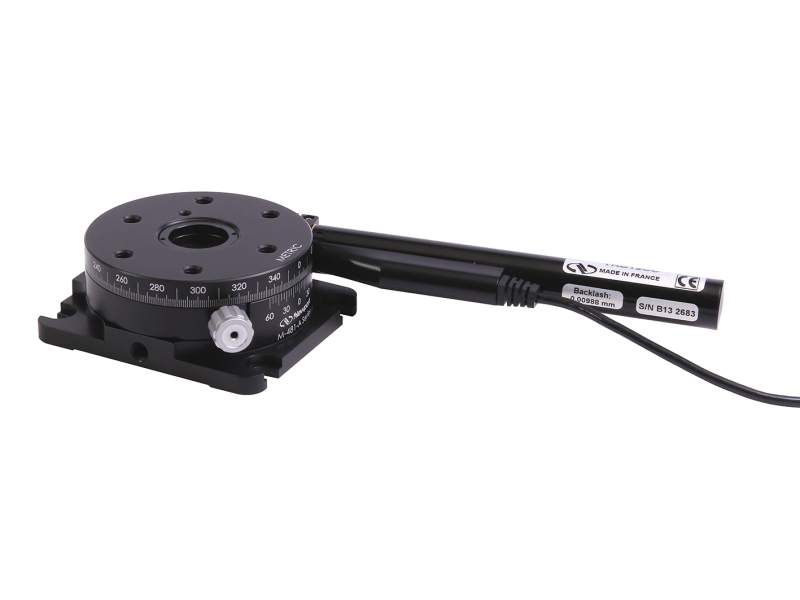

TRB actuators work great as replacements for adjustment screws or micrometers on manual stages and optical mounts. For more details refer to the TRA and TRB Series Compatibility guide. Once upgraded, the set-up can be automated for hands-free positioning or controlled remotely.

Specifications

Technical Specs

Travel Range
6 mm
Maximum Speed
2 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
90 N
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±3.0 µm
Bi-directional Repeatability, Typical
±0.13 µm
Bi-directional Repeatability, Guaranteed
±0.75 µm
Uni-directional Repeatability, Typical
±0.05 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm

Origin Repeatability
±2 µm
Cable Length
1.5 m
Power Consumption
10 W
Weight
0.23 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
6 mm
Maximum Speed
2 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
90 N
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±3.0 µm
Bi-directional Repeatability, Typical
±0.13 µm
Bi-directional Repeatability, Guaranteed
±0.75 µm
Uni-directional Repeatability, Typical
±0.05 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm

Origin Repeatability
±2 µm
Cable Length
1.5 m
Power Consumption
10 W
Weight
0.23 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

TRB6(401.8 kB, PDF)
