Motion Controller, Single-axis DC Motor

single axis dc motor motion controller model smc100cc

The SMC100CC is a single axis motion controller/driver for DC servo motors up to 48 VDC at 1.5 A rms. It provides a very compact and low-cost controller for most of Newport’s stages, including the popular GTS and ILS linear stages, URS rotation stages, and LTA actuators. Communication with the SMC100 is via the integrated RS-232-C interface, or a USB port using the adapter.

The SMC100 controller requires a "straight-through" type of RS232 cable , when connecting it to a PC. A Null-Modem cable will not work. The controller is shipped with one 0.2 m long power cable and one 0.2 m long RS-485 network cable which can be used to daisy chain one controller to another.

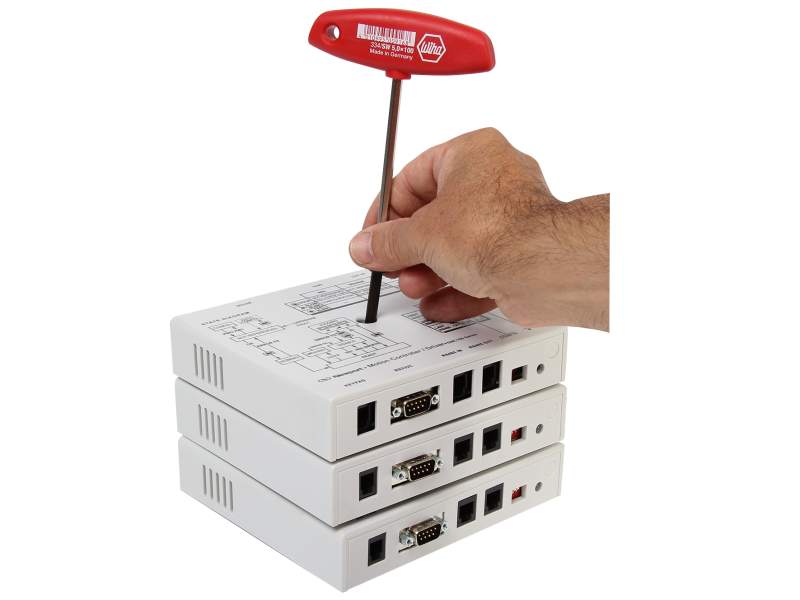

Daisy-chain up to 31 Controllers

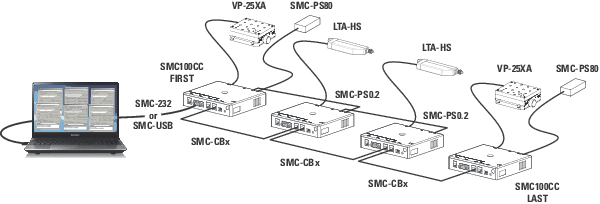

Example of a multi-axis system configuration

The SMC Motion Controllers are single axis motion controllers/drivers for DC servo motors (SMC100CC) and 2-phase stepper motors (SMC100PP) up to 48 VDC at 1.5 A rms. Both controller types can be daisy-chained in a communication bus with up to 31 devices. SMC controllers can also power daisy-chained depending on attached positioner. Communication interface to a computer or a programmable logic control is available through an RS232 interface with ASCII commands.

User-Friendly GUI

The SMC100 controller provides convenient, user-friendly GUI allowing the users to interact with the SMC100CC or SMC100PP controller that is connected to stages. The user can initiate moves, change the state of the controller, adjust parameters, etc. through the GUI.

Simple Programming with Extensive Language Options

Advanced application programming is simplified by using mnemonic ASCII commands. There are over 40 intuitive commands to choose from. Alternatively, additional drivers are available for other languages including LabVIEW™ drivers and communication DLL’s.

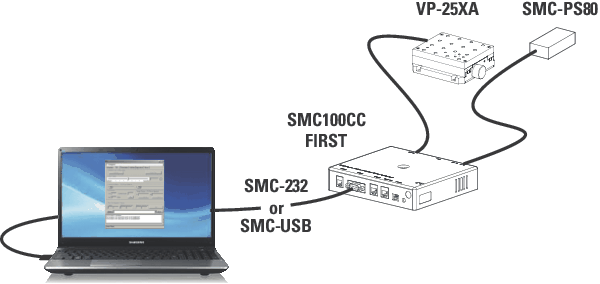

Example of a single-axis system configuration

Plug-and-Play With ESP Compatible Stages

When an ESP compatible stage is connected to the SMC, the stage is quickly recognized and operating parameters are configured without the need for user inputs. This Plug-and-Play feature is not only transparent to the user, but it also ensures the safe operation of the stage.

RS-232-C or USB Communication

Communication with the SMC100 is achieved via the integrated RS-232-C interface, or from a USB port using the external adapter SMC-USB (requires Windows™ operating system). Intuitive, Windows-based software supports all configurations and enables basic motion.

Advanced Compensation Modes

The SMC features a floating point digital PID loop with velocity and friction feedforward at 2kHz servo rate with backlash or hysteresis compensation. These features allow for improved overall stage performance.

Specifications

Technical Specs

Command Set
40+ intuitive, 2 letter ASCII commands. Command set includes software limits, user units, synchronized motion start, stop all
Computer Interfaces
RS-232-C with 57,600 baud rate, USB compatible with external adapter SMC-USB (requires Windows™ operating system), RS-485 internal link for chaining up to 31 controllers from the same COM port
Control Algorithm
PI Position, PIDFF Velocity, PIDFF Acceleration, PIDDualFF Voltage, Variable PID's, Derivative Cut-off Filter, Notch Filters, or Open Loop
Drive Type
DC Servo
ESP Compatibility
ESP Stage Detection
Motion
Point to Point, S-gamma profile with accel and jerk time control, Continuous jog

Motor Control
48 VDC @ 1.5 A rms, 3 A peak, 100 kHz PWM switching frequency
Number of Axis
1
Interface
2-Color LED
Dimensions
161 x 140 x 33 mm

Command Set
40+ intuitive, 2 letter ASCII commands. Command set includes software limits, user units, synchronized motion start, stop all
Computer Interfaces
RS-232-C with 57,600 baud rate, USB compatible with external adapter SMC-USB (requires Windows™ operating system), RS-485 internal link for chaining up to 31 controllers from the same COM port
Control Algorithm
PI Position, PIDFF Velocity, PIDFF Acceleration, PIDDualFF Voltage, Variable PID's, Derivative Cut-off Filter, Notch Filters, or Open Loop
Drive Type
DC Servo
ESP Compatibility
ESP Stage Detection
Motion
Point to Point, S-gamma profile with accel and jerk time control, Continuous jog

Motor Control
48 VDC @ 1.5 A rms, 3 A peak, 100 kHz PWM switching frequency
Number of Axis
1
Interface
2-Color LED
Dimensions
161 x 140 x 33 mm

Resources & Downloads

Technical Notes

2D Product Drawings

SMC100.pdf(509.6 kB, PDF)

Manuals

SMC100 Controller Command Interface Manual(4.7 MB, PDF)
SMC100 - Controller GUI Manual.pdf(1.5 MB, PDF)
SMC100CC and SMC100PP - User Manual(3.7 MB, PDF)

Other

MKS EU ROHS3 - SMC100CC.pdf(120.4 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price
SMC-PS80Power Supply, SMC100 Series, 80W, 100-240 VAC, 47-63 Hz, 1.9 A max.	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$178
SMC-USBUSB Interface, Includes USB to COM Port Adapter & RS-232-C Cable	UNIVERSAL	In Stock	$139
MFA-CCMotorized Linear Stage, Miniature, 25 mm Travel, DC Motor, M2 and M3	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,576
LTA-HLMotorized Actuator, High Load, 25 mm travel, LTA, M12 thread	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,615
LTA-HSMotorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,512
SMC-232RS-232-C Cable, 3 m Length, DB9F to DB9F	UNIVERSAL	In Stock	$29
SMC100PPMotion Controller, Single-axis Stepper Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452
TRA25CCMotorized Actuator, Miniature, 25 mm Travel, DC Servo Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,156
PR50CCMotorized Rotation Stage, Compact, 360°, 20°/s, DC Servo Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,272
MFA-CCV6Motorized Linear Stage, Miniature, 25 mm Travel, DC Motor, Vacuum Compatible	UNIVERSAL	In Stock	$3,967

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SMC100PPMotion Controller, Single-axis Stepper Motor	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452

Compatible

Description	Compatibility	Avail.	Price
RVS80CCMotorized Rotation Stage, 80 mm, High-Speed DC Drive	UNIVERSAL	In Stock	$7,157
PR50CCMotorized Rotation Stage, Compact, 360°, 20°/s, DC Servo Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,272
LTA-HSMotorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,512
GTS30VMotorized Vertical Stage, High Precision, 30 mm Travel, GTS Series	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$10,916
ILS100CCMotorized Linear Stage, 100 mm Travel, DC Motor, Rotary Encoder, 1/4-20	IMPERIAL	In Stock	$5,340
MFA-CCMotorized Linear Stage, Miniature, 25 mm Travel, DC Motor, M2 and M3	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,576

Accessories

Description	Compatibility	Avail.	Price
SMC-CB1RS-485 Cable, SMC100 Series, 1 m Length	UNIVERSAL	In Stock	$22

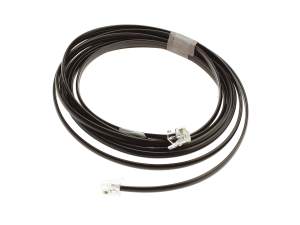

SMC-CB3RS-485 Cable, SMC100 Series, 3 m Length	UNIVERSAL	In Stock	$28
