Motorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread

Precision Motorized Actuators, LTA Series

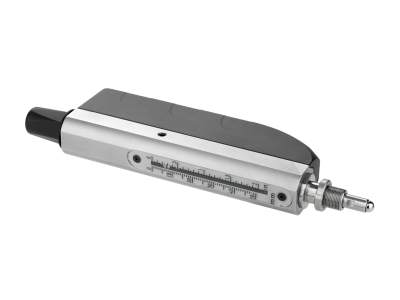

The LTA-HS High Speed Motorized Actuator is optimized for high-speed applications and provides a 50 mm travel range. LTA actuators are designed to fit into selected manual stages and other opto-mechanical components as direct replacement for manual micrometers. It features a space-saving design with the motor and lead screw mounted side-by-side. This reduces the actuator length by 50% and minimizes the unwanted effects of long cantilever loads on micro-positioning equipment. Precision motion is accomplished through a miniature DC servo motor with optimized output torque. This allows for faster motion and high load capacity.

Manual Adjustment Knob

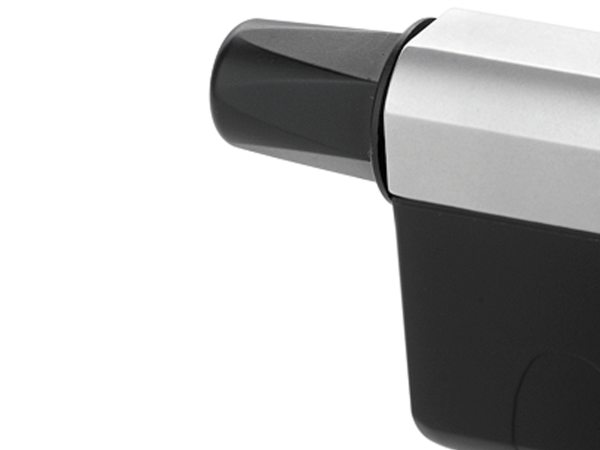

LTA Series motorized actuators provide a manual adjustment knob which permits quick positioning of the actuator when the motor is off.

Scale Position Indication and Limit Switch

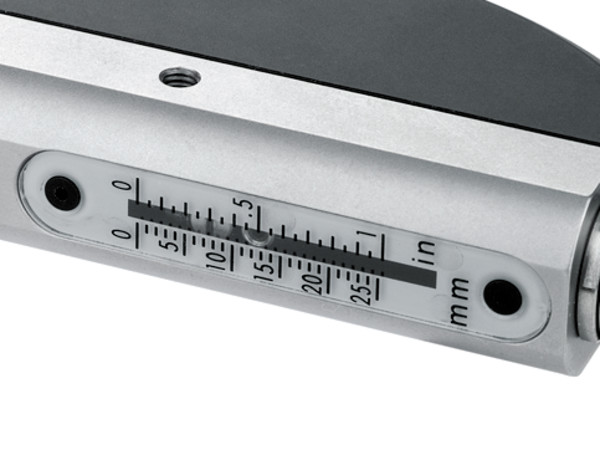

LTA Actuators include a visible scale that indicates coarse actuator position in both millimeters and inches. Beneath the scale's window is an accessible trigger which, along with the Manual Adjustment Knob, can be manually set to limit the actuator's travel range.

Non-rotating Actuator Tip

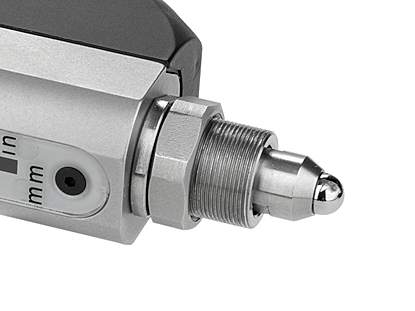

LTA actuators feature a non-rotating tip that prevents wear and eliminates periodic motion variations when the actuator is moving.

Specifications

Technical Specs

Travel Range
50 mm
Maximum Speed
5 mm/s
Minimum Incremental Motion
0.10 µm

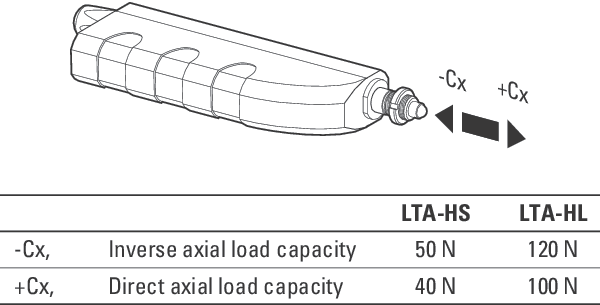

Push Force
50 N
Pull Force
40 N
Accuracy, Typical
±2.2 µm
Accuracy, Guaranteed
±5.0 µm
Bi-directional Repeatability, Typical
±0.30 µm
Bi-directional Repeatability, Guaranteed
±1.0 µm
Uni-directional Repeatability, Typical
±0.10 µm

Uni-directional Repeatability, Guaranteed
±0.25 µm
Origin Repeatability
±2 µm
Cable Length
3 m
Vacuum Compatibility
No
Weight
0.48 kg
MTBF
10,000 h (25% load, 30% Duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
50 mm
Maximum Speed
5 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
50 N
Pull Force
40 N
Accuracy, Typical
±2.2 µm
Accuracy, Guaranteed
±5.0 µm
Bi-directional Repeatability, Typical
±0.30 µm
Bi-directional Repeatability, Guaranteed
±1.0 µm
Uni-directional Repeatability, Typical
±0.10 µm

Uni-directional Repeatability, Guaranteed
±0.25 µm
Origin Repeatability
±2 µm
Cable Length
3 m
Vacuum Compatibility
No
Weight
0.48 kg
MTBF
10,000 h (25% load, 30% Duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

LTA-HS(500.1 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price
SMC100CCMotion Controller, Single-axis DC Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452
ESP302-3NMotion Controller & Driver, 3-Axis, Ethernet, RS232	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$5,970
SMC-PS80Power Supply, SMC100 Series, 80W, 100-240 VAC, 47-63 Hz, 1.9 A max.	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$178
SMC-USBUSB Interface, Includes USB to COM Port Adapter & RS-232-C Cable	UNIVERSAL	In Stock	$139
LTA-HLMotorized Actuator, High Load, 25 mm travel, LTA, M12 thread	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,615
M-436AManual Linear Stage, Crossed-Roller Bearings, Aperture, 50.8 mm, M6	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,010
XPS-DRV11Motion Controller Card, Universal, Stepper, DC, and Linear Motors	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$865
M-436Manual Linear Stage, Crossed-Roller Bearings, 50.8 mm Travel, M6	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$973
M-443Linear Stage, High-Performance, Low-Profile, Ball Bearings, 50 mm, M6	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$461
M-562-XYZXYZ Linear Stage, ULTRAlign, 12.7 mm, Right-Handed, M4 and M6	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,048

Compatible Controllers

Based on axis required, choose a specific controller to pair with the stage. Along with an XPS-D or XPS-RLD controller, a driver module is required.

Description	Compatibility	Avail.	Price
xps-rl-universal-high-performance-motion-controller¹XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver	UNIVERSAL
xps-d-universal-motion-controller²XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver	UNIVERSAL
esp301-3-axis-dc-and-stepper-motion-controllerESP302 3-Axis DC and Stepper Motion Controller	UNIVERSAL
SMC100CCMotion Controller, Single-axis DC Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452

Notes:

Requires XPS-DRV11 driver module
Requires XPS-DRV11 driver module

Similar

Description	Compatibility	Avail.	Price
BM17.51Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$310
TRA25CCMotorized Actuator, Miniature, 25 mm Travel, DC Servo Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,156
LTA-HLMotorized Actuator, High Load, 25 mm travel, LTA, M12 thread	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,615

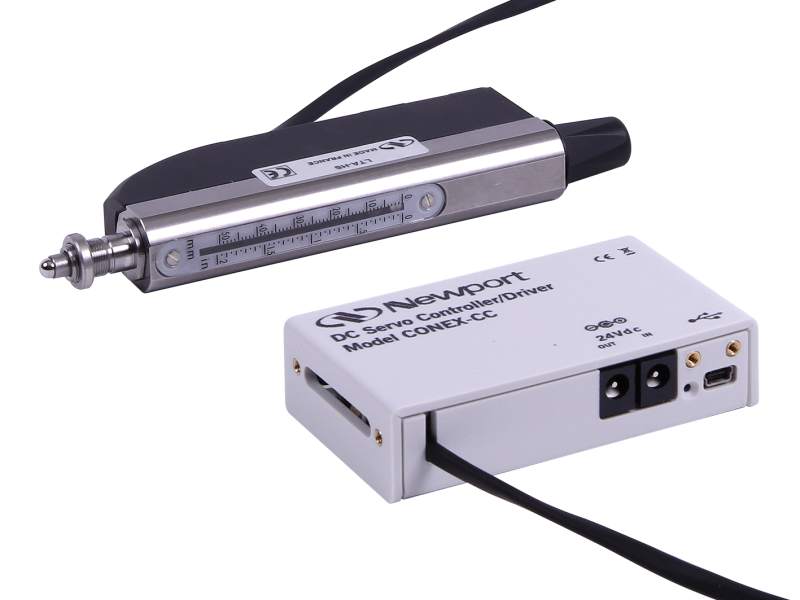

CONEX-LTA-HSMotorized Actuator, LTA-HS Integrated with CONEX-CC Controller	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,353
TRA25PPDMotorized Actuator, Miniature, 25mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	In Stock	$1,167

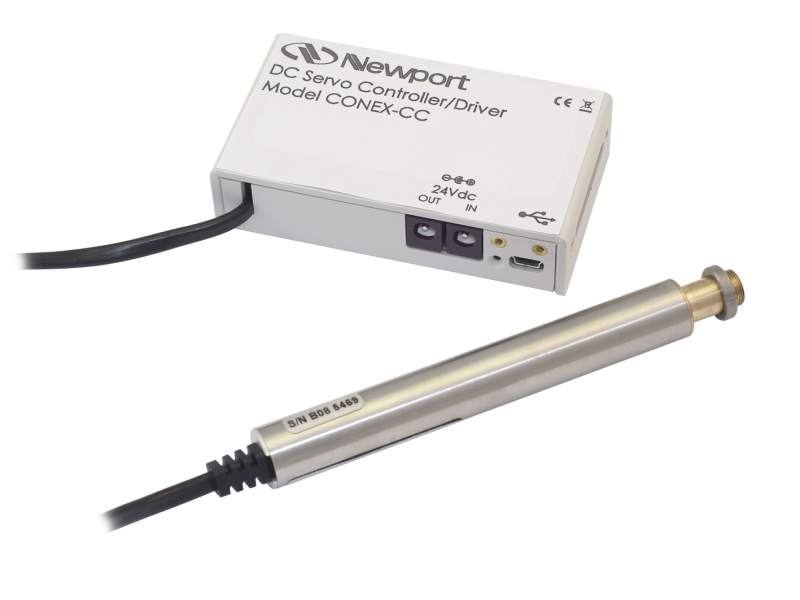

CONEX-TRA25CCLinear Actuator, DC Servo, 25 mm Travel, TRA25CC and CONEX-CC Controller	UNIVERSAL	In Stock	$1,811
