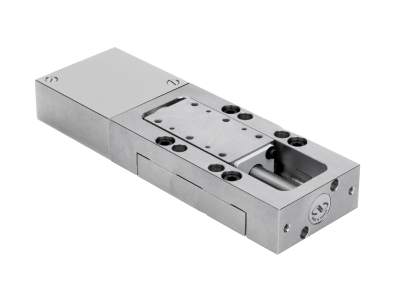

Motorized Linear Stage, Miniature, 25 mm Travel, DC Motor, Vacuum Compatible

The MFA-CCV6 Vacuum Compatible Miniature Linear Stage is designed for space-limited applications and compact multi-axis assemblies. It is a high resolution, single-axis 25 mm stage in a low-cost, motorized package. Typical applications for this stage are fiber optic alignment, laser diode research, bio-medical applications and inspection systems. The MFA-CC is the choice for applications that require small incremental motion, high dynamic speed range and good repeatability.
Note: The connector supplied with the stage is not vacuum compatible due to various feed-through configurations and customer preferences. Please contact Newport for vacuum compatible connector options.

Double Row Linear Ball Bearing Slides

Newport's proprietary double-row linear ball bearing design with bearing ways that are directly machined into the structural frame of the stage result in very smooth travel, greater durability and longer life. Compared to other solutions that use commercial bearings, MFA linear stages have a higher load capacity and stiffness with low pitch and yaw errors.

High Speed DC Motor with High Resolution Feedback

DC motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. The MFA-CC DC motor features an integrated gear-box and a motor-mounted rotary encoder. The high-resolution 2,048 cts/rev rotary encoder provides position feedback. Combined with a low-friction mechanical design, the MFA-CC delivers ultra-smooth motion with 100-nm sensitivity. Faster motion with higher reliability and lower backlash make DC Motor-driven stages ideal for applications requiring small incremental motion with high dynamic speed and good repeatability.

Vacuum Compatible Version

The is the vacuum compatible version of the MFA DC motor stage. It can be used in a vacuum environment down to 10^-6 hPa.

End-of Run Limit Switches

The stage contains end-of-run limit switches on both ends to prevent damage to the stage from over-travel.

Specifications

Technical Specs

Travel Range
25 mm
Maximum Speed
1.25 mm/s
Minimum Incremental Motion
100 nm
Centered Load Capacity
25 N
Axial Load Capacity (+Cx)
5 N
Inverse Axial Load Capacity (-Cx)
-5 N
Accuracy, Typical
±1.0 µm
Accuracy, Guaranteed
±3.0 µm
Uni-directional Repeatability, Typical
±0.08 µm
Uni-directional Repeatability, Guaranteed
±0.15 µm
Bi-directional Repeatability, Typical
±0.2 µm
Bi-directional Repeatability, Guaranteed
±1.0 µm
Pitch, Typical
±25 µrad
Pitch, Guaranteed
±100 µrad
Compliance in Pitch
80 µrad/Nm
Yaw, Typical
±30 µrad
Yaw, Guaranteed
±50 µrad

Compliance in Yaw
80 µrad/Nm
Compliance in Roll
60 µrad/Nm
Material
Steel
Bearings
Double-Row Ball Bearings
Drive Type
DC Motor
Origin Repeatability
±2.5 µm
Cable Length
1.5 m
Connector Type
DB25 Male
Vacuum Compatibility
10^-6 Torr
Thread Type
M2 and M3
Weight
0.73 kg
MTBF
10,000 h (25% load, 30% Duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
25 mm
Maximum Speed
1.25 mm/s
Minimum Incremental Motion
100 nm
Centered Load Capacity
25 N
Axial Load Capacity (+Cx)
5 N
Inverse Axial Load Capacity (-Cx)
-5 N
Accuracy, Typical
±1.0 µm
Accuracy, Guaranteed
±3.0 µm
Uni-directional Repeatability, Typical
±0.08 µm
Uni-directional Repeatability, Guaranteed
±0.15 µm
Bi-directional Repeatability, Typical
±0.2 µm
Bi-directional Repeatability, Guaranteed
±1.0 µm
Pitch, Typical
±25 µrad
Pitch, Guaranteed
±100 µrad
Compliance in Pitch
80 µrad/Nm
Yaw, Typical
±30 µrad
Yaw, Guaranteed
±50 µrad

Compliance in Yaw
80 µrad/Nm
Compliance in Roll
60 µrad/Nm
Material
Steel
Bearings
Double-Row Ball Bearings
Drive Type
DC Motor
Origin Repeatability
±2.5 µm
Cable Length
1.5 m
Connector Type
DB25 Male
Vacuum Compatibility
10^-6 Torr
Thread Type
M2 and M3
Weight
0.73 kg
MTBF
10,000 h (25% load, 30% Duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE
