Linear Actuator, DC Servo, 12 mm Travel, TRB12CC and CONEX-CC Controller

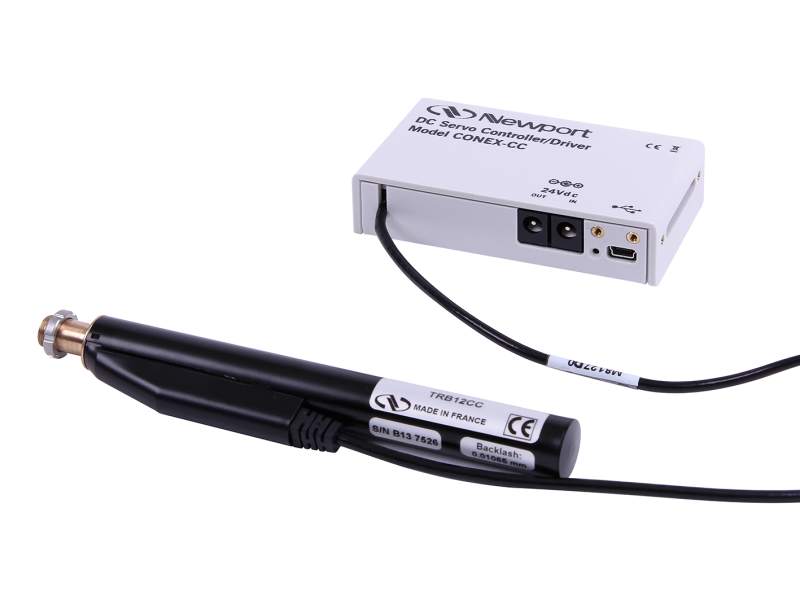

CONEX-TRB12CC is a compact DC servo actuator integrated with a CONEX-CC controller that provides 12 mm travel in a slim, 16 mm diameter housing, and is recommended for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRB actuators can replace micrometers which are used a wide variety of linear stages, mirror mounts, and OEM applications.

The CONEX^™ controller comes with a simple and intuitive GUI and is conveniently accessible via USB. It comes with a USB cable and a CONEX-PS-CB for daisy-chaining modules. The power supply is ordered separately. For OEM applications, an optional retainer to secure the USB and power cables is available.

TRB DC Servo Actuators

TRB linear actuators offer mid-range load capacity with a wide range of travel and motor choices. They can easily motorize manual positioners and mirror mounts with flexible cable routing and a non-reflective surface coating. TRB actuators feature a lim, light-weight design that allows them to be used in compact spaces in a variety of applications, a hard-coated steel ball tip that minimizes wear on the contact surface when compared to other designs using regular steel ball tips, and integrated optical limit switches to protect your investment from over travel damage.

Compact DC Servo Motion Controller

In terms of size, the CONEX-CC motion controller is comparable to a deck of cards. Up to six CONEX-CC controllers can fit on a CONEX-BP baseplate. Both controller and stage are compact and ideal for space-confined or access-limited applications. The low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors. It delivers smooth motion, with less electrical noise and significantly less motor heating.

Out-of-the-box PC Control

For out-of-the box control, the CONEX controller is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI. The integrated USB interface, provides a fast ubiquitous communication protocol. For OEM's or security sensitive applications, RS-232 and RS-485 communications are embedded onto the CONEX controller.

Simple Programming with Extensive Language Options

Advanced application programming is simplified by using mnemonic ASCII commands. Newport provides a free GUI that allows the user to access and execute over 60 intuitive ASCII commands. A managed Microsoft .NET assembly (DLL) is provided for programming custom applications in C#, Labview, Matlab, Python and other .NET compatible languages.

Specifications

Technical Specs

Stage Type
TRB Linear Actuator
Travel Range
12 mm
Push Force
90 N
Maximum Speed
2 mm/s
Minimum Incremental Motion
0.10 µm
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±4.0 µm
Uni-directional Repeatability, Typical
±0.08 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm
Bi-directional Repeatability, Typical
±0.13 µm
Bi-directional Repeatability, Guaranteed
±0.75 µm
Drive Type
DC servo
Drive Mechanism
Rolled lead screw
Drive Screw Pitch
1 mm
Reduction Gear
1:67.5
Limit Switches
Optical switches, both ends

Origin
Optical, at lower limit
Origin Repeatability
±2 µm
Feedback
Motor mounted rotary encoder, 1024 cts/rev.
Encoder Resolution
0.01447 µm
Control Loop
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Display
Two-color LED
Programming
40+ intuitive, 2 letter ASCII commands.
Weight
0.21 kg
Power Requirements
24 VDC, 8 W
Cable Length
1.5 m
Computer Interfaces
USB
Controller Dimensions
93.2 x 53 x 23 mm
MTBF
10 000 h (25N load, 10% duty cycle)
Compliance
RoHS 3, CE

Stage Type
TRB Linear Actuator
Travel Range
12 mm
Push Force
90 N
Maximum Speed
2 mm/s
Minimum Incremental Motion
0.10 µm
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±4.0 µm
Uni-directional Repeatability, Typical
±0.08 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm
Bi-directional Repeatability, Typical
±0.13 µm
Bi-directional Repeatability, Guaranteed
±0.75 µm
Drive Type
DC servo
Drive Mechanism
Rolled lead screw
Drive Screw Pitch
1 mm
Reduction Gear
1:67.5
Limit Switches
Optical switches, both ends

Origin
Optical, at lower limit
Origin Repeatability
±2 µm
Feedback
Motor mounted rotary encoder, 1024 cts/rev.
Encoder Resolution
0.01447 µm
Control Loop
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Display
Two-color LED
Programming
40+ intuitive, 2 letter ASCII commands.
Weight
0.21 kg
Power Requirements
24 VDC, 8 W
Cable Length
1.5 m
Computer Interfaces
USB
Controller Dimensions
93.2 x 53 x 23 mm
MTBF
10 000 h (25N load, 10% duty cycle)
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

CONEX-TRB12CC(486.4 kB, PDF)

Literature

TRB Data Sheet.pdf(1.4 MB, PDF)
CONEX Datasheet(4.2 MB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
CONEX-TRA12CCLinear Actuator, DC Servo, 12 mm Travel, TRA12CC and CONEX-CC Controller	UNIVERSAL		$1,903
CONEX-PSD9Optical Beam Position Detector, 9-mm sensor	UNIVERSAL		$1,806
CONEX-LTA-HLMotorized Actuator, LTA-HL Integrated with CONEX-CC Controller	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,456
CONEX-TRA6CCLinear Actuator, DC Servo, 6 mm Travel, TRA6CC and CONEX-CC Controller	UNIVERSAL		$1,639
TRA25CCMotorized Actuator, Miniature, 25 mm Travel, DC Servo Motor	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,156
CONEX-LTA-HSMotorized Actuator, LTA-HS Integrated with CONEX-CC Controller	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,353

Accessories

Description	Compatibility	Avail.	Price
CONEX-BPBase Plate, Mounts Multiple CONEX™ Controllers	UNIVERSAL	Contact Us	$106
CONEX-PS¹Power Supply, 24 VDC, CONEX™ Motion Controllers	UNIVERSAL		$137
CONEX-PS-CB²Power Chain Cable, 100 mm Length, CONEX™	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$66

Notes:

Power Supply sold separately.
A CONEX-PS-CB is included in each CONEX-CC product. Purchase more as needed.

Frequently Purchased Together

Description	Compatibility	Avail.	Price
CONEX-BPBase Plate, Mounts Multiple CONEX™ Controllers	UNIVERSAL	Contact Us	$106
CONEX-PSPower Supply, 24 VDC, CONEX™ Motion Controllers	UNIVERSAL		$137
GON40-LGoniometric Stage, Lower, ±5°, 1.57 x 1.57 x 0.79 in., 6-32 & 1/4-20	IMPERIAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$310
CONEX-BPBase Plate, Mounts Multiple CONEX™ Controllers	UNIVERSAL	Contact Us	$106
CONEX-PSPower Supply, 24 VDC, CONEX™ Motion Controllers	UNIVERSAL		$137
M-562F-XYZFiber Alignment Stage, ULTRAlign, Right-Handed, 13 mm XYZ, M4 and M6	METRIC	FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,037
CONEX-TRB25CCLinear Actuator, DC Servo, 25 mm Travel, TRB25CC and CONEX-CC Controller	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,439
SM-13Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$105

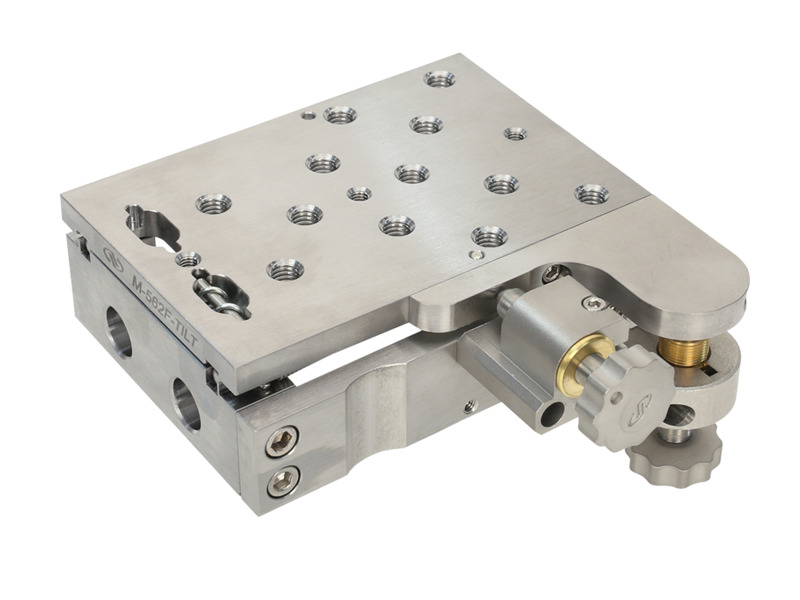

M-562F-TILTTilt Platform, Two Axis, Right-Handed, M-562 Series	METRIC	FREE 2-day shipping on thousands of products on Newport.com Learn More	$747
