Dovetail Rail, ULTRAlign Series, 3.7 in. Length
Dovetail Rail, ULTRAlign Series, 3.7 in. Length
Model: 562-RAIL-3.7
Product Series Overview

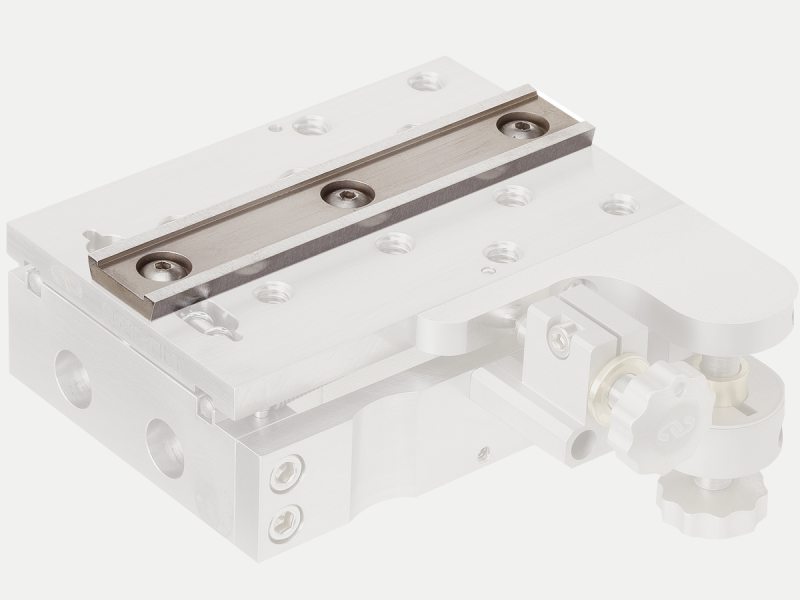

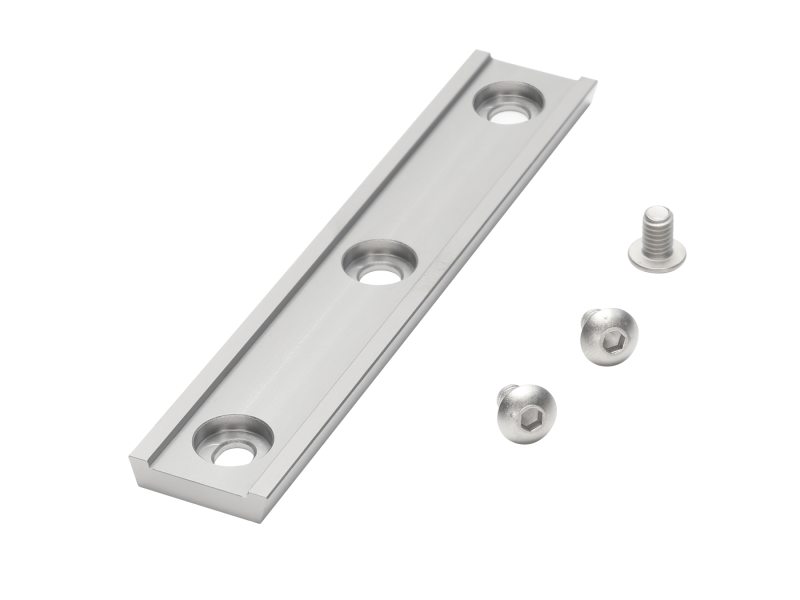

ULTRAlign Fiber Alignment AccessoriesThe 562-RAIL-3.7 is a Dovetail Rail that attaches to 562F-XYZ and 562F-TILT stages. It is 3.7 in. long. It comes with three imperial and three metric screws for mounting.
