Dovetail Rail, ULTRAlign Series, 1.0 in. Length
Dovetail Rail, ULTRAlign Series, 1.0 in. Length
Model: 561-RAIL-1
Product Series Overview

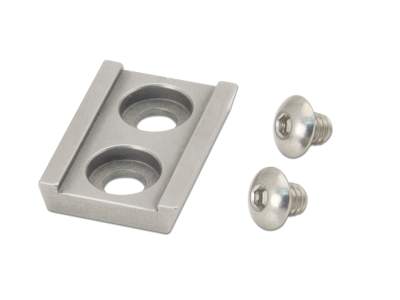

ULTRAlign Fiber Alignment AccessoriesThe 561-RAIL-1 is a 1.0 in. long dovetail rail that attaches to 561-GON stage. It comes with two imperial and two metric screws for mounting.
Resources & Downloads
Other
561-RAIL-1_RoHS2021.pdf(690.8 kB, PDF)
2D Product Drawings
561-RAIL-1 DWG.pdf(93.8 kB, PDF)
Related Products
Frequently Purchased Together
