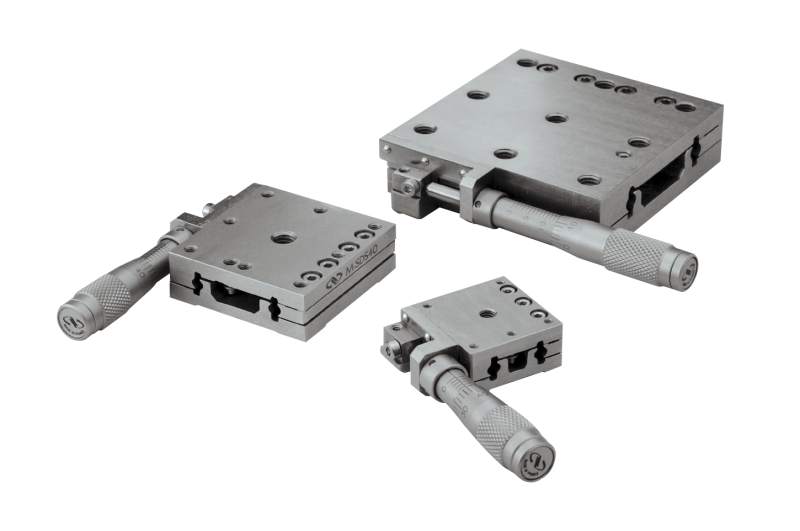

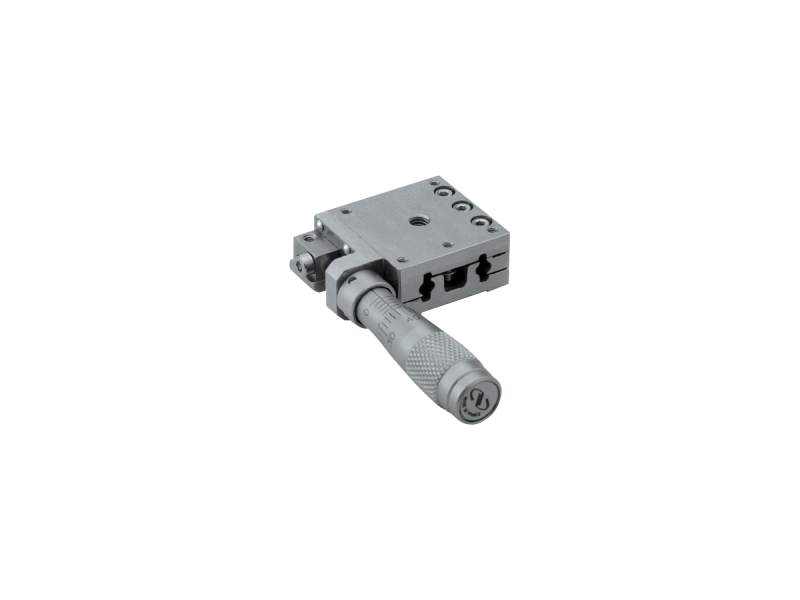

Manual Linear Stage, 25 mm Travel, Ball Bearings, M6 Threads

The M-SDS65 Metric Linear Translation Stage incorporates maximum performance and 25 mm travel into a 65 x 65 x 18 mm footprint. Especially designed for industrial OEM system integration, the stainless steel construction features higher rigidity, superior clean room acceptability, and better long-term stability than aluminum stages. Our novel manufacturing methods, based on fewer machined parts, allows for a low-profile design with higher performance. The M-SDS65 has a 160 N load capacity and can be directly stacked into an XY-configuration, and an XYZ assembly can be built using the available 90° angle brackets. For rotational movement, these stages are compatible with the RS Series Rotation Stages and GON Series Goniometers.
