Outer Bracket, Compatible with UMR5 Stages
Outer Bracket, Compatible with UMR5 Stages
Model: EQ50-E
Product Series Overview

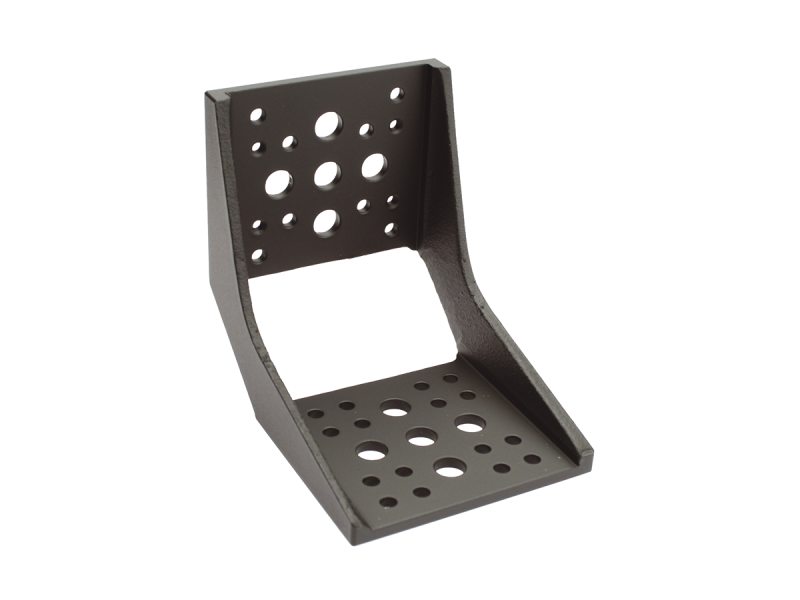

EQ Manual Stage 90 Degree Angle BracketsThe EQ50-E Outer Right Angle Bracket is compatible with UMR5 stages. With EQ Series Angle Brackets, multi-axis positioners can be assembled from two or more standard UMR and/or UTR Series positioners. Individual positioners assembled with mounting brackets give you a greater range of positioning versatility with fewer total components. Because components and brackets can be reused in different configurations to meet your changing needs, modular multi-axis systems are a great way to get the most value from your equipment.
Resources & Downloads
2D Product Drawings
EQ50-E.pdf(409.6 kB, PDF)
Other
EQ50-E RoHS Certificate(279 kB, PDF)
