Micrometer Head, High Resolution, 0.5 µm Sensitivity, 6 mm Travel
Micrometer Head, High Resolution, 0.5 µm Sensitivity, 6 mm Travel
Model: HR-6
Product Series Overview

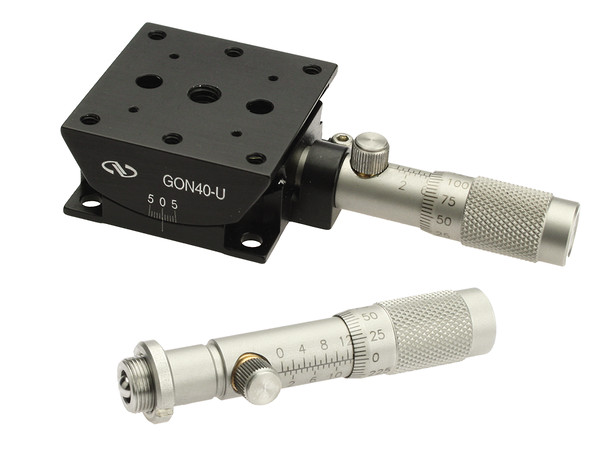

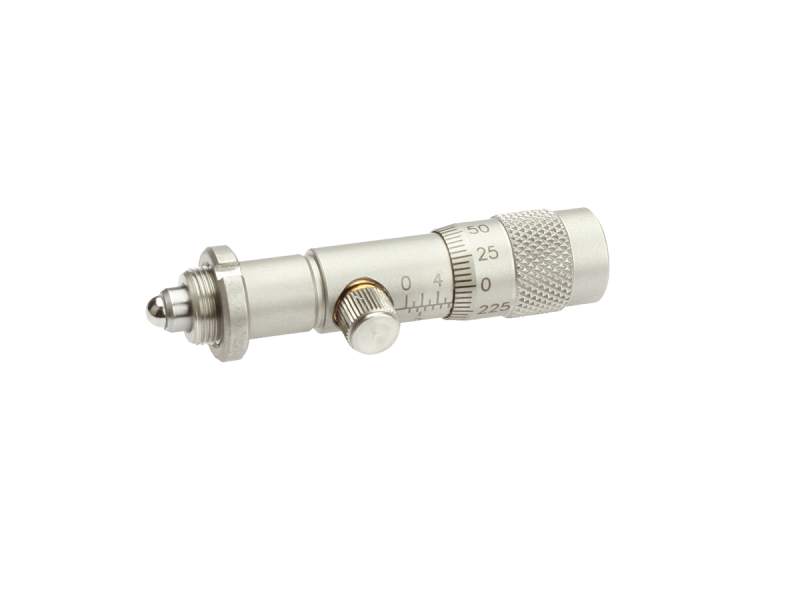

Lockable High-Resolution Micrometer HeadsThe HR-6 Lockable High-Resolution Micrometers has 0.25 mm pitch threads (over 100 TPI), providing twice the sensitivity of standard SM Series Micrometers. These fine threads allow 0.5 μm sensitivity with direct position readout in 5 μm graduations. The HR-6 is recommended for applications requiring sensitive 6 mm positioning, as well as accurate position readout. The HR Series Micrometers have a novel thumbscrew locking mechanism that clamps a non-threaded portion of the screw from all sides. This stress-balanced design secures the position with negligible displacement during locking.

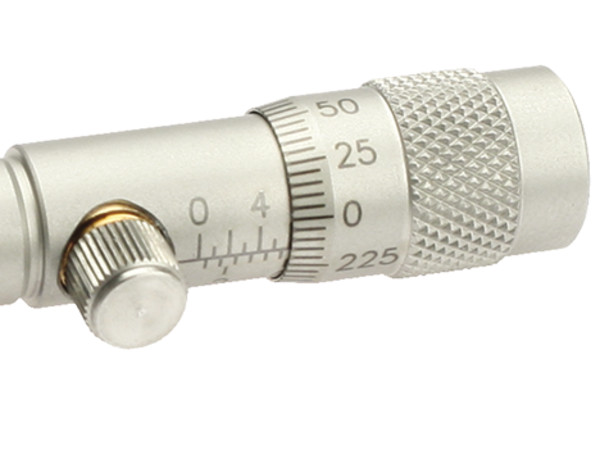

Non-influencing Locking Mechanism
The HR Series Micrometer Heads have a novel thumbscrew locking mechanism that clamps a non-threaded portion of the screw from all sides. This stress-balanced design secures the position with negligible displacement during locking.
Standard Stage 9.5 mm Mounting Interface
All HR series micrometers have the same 9.5-mm mounting interface making them both interchangeable with other micrometers and compatible with the Newport stages listed below.
- 461/462 Series ULTRAlign™ Precision Integrated Crossed-Roller Bearing Linear Stages
- 561/562 Series ULTRAlign™ Precision XYZ Positioning Stages
- 423 Series Extended Range Ball Bearing Linear Stages
- 426 Series Extended Platform Crossed-Roller Bearing Stages
- Peg-Joining Linear Stages
- Quick-Mount Linear Stages
- Low-Profile Rotation Stages
- Anti-Backlash Goniometric Rotation Stages
0.25 mm Pitch Threads for High Sensitivity
HR Series Lockable High-Resolution Micrometer Heads have 0.25 mm pitch threads (over 100 TPI), providing twice the sensitivity of standard SM Series. These fine threads allow 0.5 µm sensitivity with direct position readout in 5 µm graduations. They are recommended for applications requiring sensitive positioning, as well as accurate position readout.
Specifications
- TypeMicrometer
- Travel Range6.1 mm
- Adjustment Screw Thread101.6 TPI
- Drive TypeKnob
- Graduations5 µm
- Axial Load Capacity102 N
- Sensitivity0.5 µm
- Drive Screw Pitch0.25 mm
- LockSide Lock
- Mounting Threads3/8-40
- Mounting9.5 mm Shank
