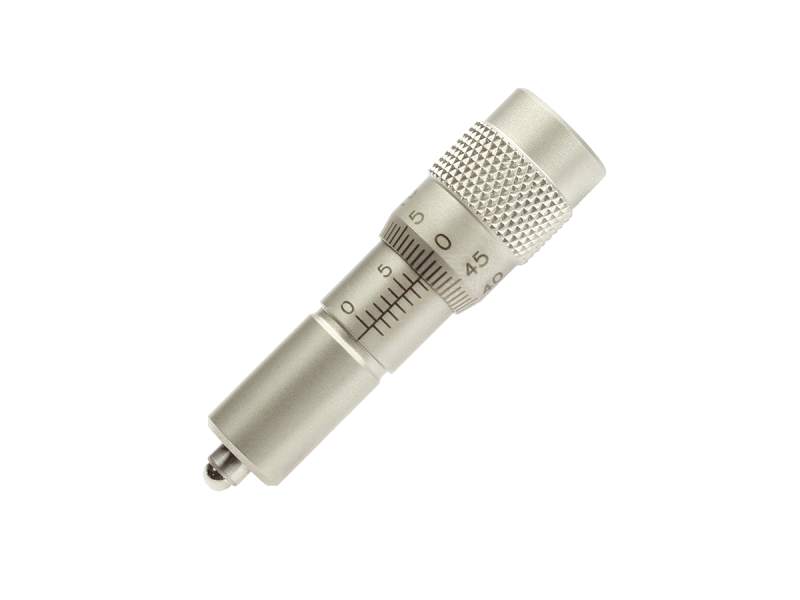

Micrometer, 6 mm Travel, Unthreaded, Vernier
Micrometer, 6 mm Travel, Unthreaded, Vernier
Model: SM-06
Product Series Overview
Smooth-bore Micrometer HeadsThe SM-06 Smooth Bore Micrometer Head is a standard drive for most Newport stages, and our most popular manual actuator. The SM-06 has a 6 mm travel range and a 9 lb load capacity. SM Series micrometers have 0.5 mm pitch (50.8 TPI) threads and read directly in increments of 10 µm.
Resources & Downloads
2D Product Drawings
SM-06-S(71.4 kB, PDF)
Other
SM-06 RoHS Certificate(280 kB, PDF)
