Adaptor Plate, 25x25 mm Stage to 40x40 mm Stage

Slotted Stage Adaptor Plates

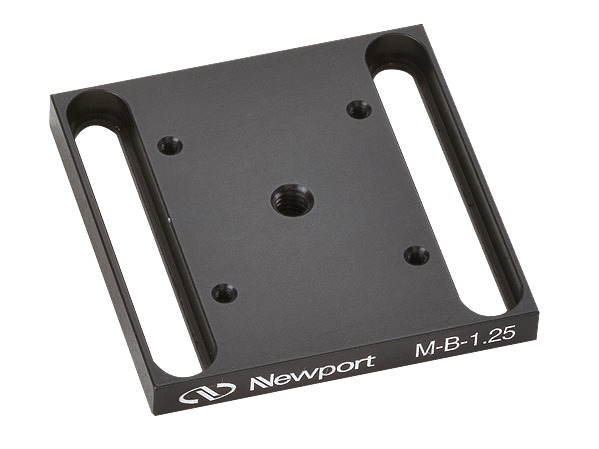

The M-B-1.25 adaptor Plate allows a 25 x 25 mm stage to be attached to a 40 x 40 mm stage.

Specifications

Technical Specs

Type
Slotted Adaptor Plate
Height
5 mm
Dimensions
40 x 40 mm
Thread Type
M2 & M4
Material
Aluminum

Use
25 x 25 mm Stages
Translation Range
32 mm

Type
Slotted Adaptor Plate
Height
5 mm
Dimensions
40 x 40 mm
Thread Type
M2 & M4
Material
Aluminum

Use
25 x 25 mm Stages
Translation Range
32 mm

Resources & Downloads

2D Product Drawings

M-B-1.25-ENV-S(140.3 kB, PDF)

Other

M-B-1.25 RoHS Certificate(279.9 kB, PDF)
M-B-1-25_RoHS2021.pdf(688.4 kB, PDF)
