Slotted Rotation Base, 70 Degree Range, 1/4-20
Slotted Rotation Base, 70 Degree Range, 1/4-20
Model: 30
Product Series Overview

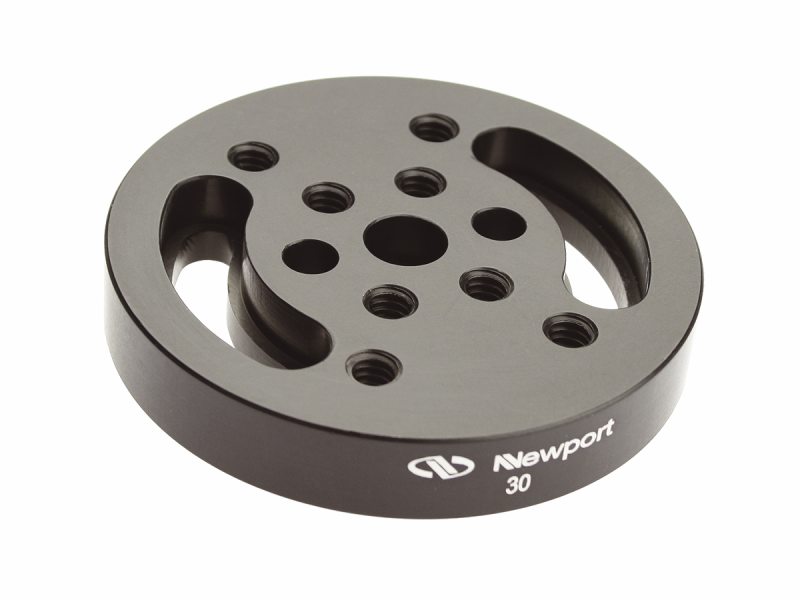

Slotted Rotation BaseThe 30 Slotted Base provides a full 70° of rotational adjustment for posts or translation stages. There is a pattern of eight 1/4-20 threaded holes, two slots and three thru holes for various types of mounting. This base is made from 0.50 in. thick black anodized aluminum and has a 3 in. diameter.
Resources & Downloads
2D Product Drawings
30 ART-S(90.6 kB, PDF)
Other
30 RoHS Certificate(681.5 kB, PDF)
