Mounting Plates and Platforms

These mounting plates provide versatile adaptability of mounting surfaces to the specific requirements of a given optical system. These plates can be used to adapt between English and Metric unit mounting, off-pattern mounting to optical tables, or simply to increase the available area for mounting components.

Adapt mounting surfaces for different units and custom orientations
Provides larger mounting surface when added to other stages and platforms
Made from solid aluminum with a black anodized finish

See All Features

Show Filters:

Showing 9 of 9 total products

Compatibility:

Description	Compatibility	Type	Height	Length	Width	Thread Type	Avail.	Price
UP-1AUniversal Mounting Plate, 2.56 in. x 2.56 in. x 0.5 in., 1/4-20 Thread	IMPERIAL	Mounting Plate	12.7 mm	65 mm	65 mm	6-32 and 1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59
M-UP-1AMounting Plate, Universal, 65 mm x 65 mm x 12.7 mm, M6 Thread, Metric	METRIC	Mounting Plate	12.7 mm	65 mm	65 mm	M3 & M6	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59
38Mounting Platform, 3 in. x 5 in. x 0.5 in., 1/4-20 Thread	IMPERIAL	Mounting Plate	12.7 mm	76.2 mm	127 mm	1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$51
410-RCPMounting Plate, Dual Rod Platform, 5 x 6 x 0.5 in., 1/4-20 Thread	UNIVERSAL	Mounting Plate	12.7 mm	152.4 mm	127 mm	1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$173
290-TPTop Plate, Fixed Height Platform, 6 x 10 in., 1/4-20 Thread, (12) 1/4-20 CLR.	IMPERIAL	Top Plate	12.7 mm	254 mm	152.4 mm	1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$173
M-290-TPTop Plate, 254.0 mm x 152.5 mm, 33 holes M6 Thread, 12 holes M6 CLR.	METRIC	Top Plate	12.7 mm	254 mm	152.4 mm	M6	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$173
290-BPBase Plate, Fixed Height Platform, 10 in. x 6 in., (10) 1/4-20 CLR.	IMPERIAL	Base Plate	12.7 mm	254 mm	152.4 mm	1/4-20	3 Weeks	$150
M-290-BPTop Plate, Fixed Height Platform, 254 mm x 152.5 mm, M6 Thread, (10) M6 CLR.	METRIC	Base Plate	12.7 mm	254 mm	152.4 mm	M6	Contact Us	$150
20050-01Base Plate, Heavy Duty, 410-RC Assembly	UNIVERSAL	Base Plate	19.1 mm	165.1 mm	114.3 mm	1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$173

Features

UP-1A Universal Mounting Plates

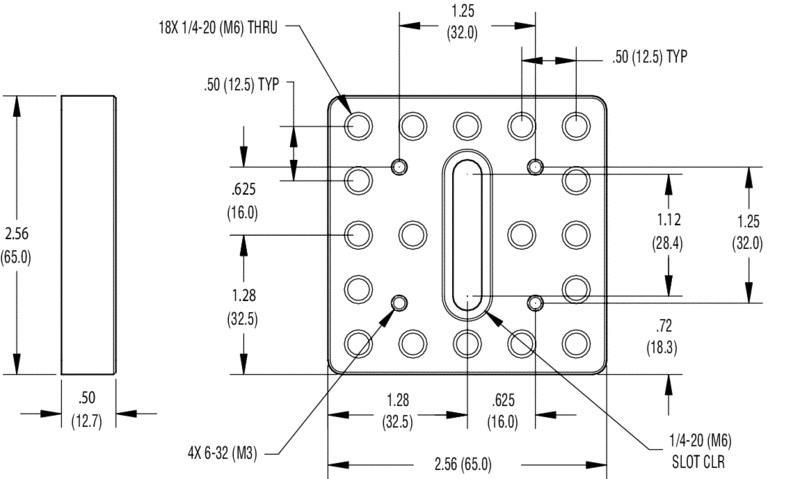

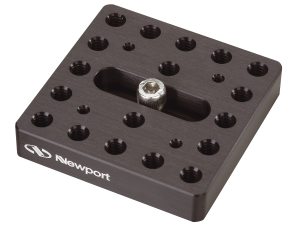

The UP-1A Universal Mounting Plate utilizes our patented rotating slot concept to offer a dense array of mounting holes, in any orientation, to your optical table or setup. This 65 mm x 65 mm (2.56 in. x 2.56 in) plate makes it simple to mount components and stages off the table hole pattern and sits just 12.7 mm (0.5 in.) high. This plate is offered with either 1/4-20 or M6 (Model M-UP-1A) threaded holes making it useful to adapt metric components to an English table, or vice versa. The plate is bolted to the table with a standard 1/4-20 (M6) cap head screw.

410-RCP Mounting Plate and 20050-01 Base Plate

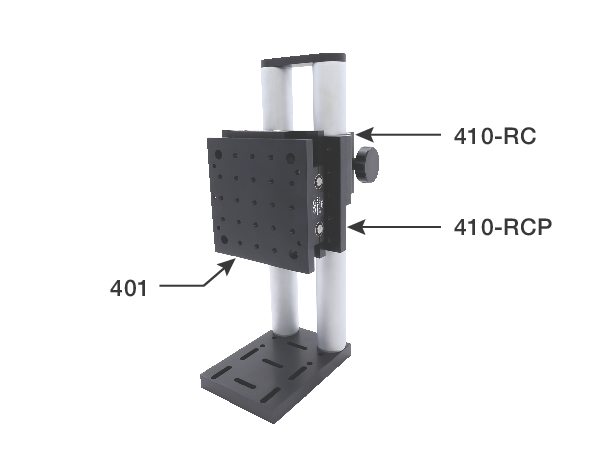

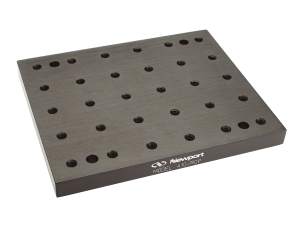

410-RCP Mounting Plate and 20050-01 Base Plate are designed for the Dual Rod Mounting Assembly. With a standard pattern of 1/4-20 threaded holes in 1.0 in. grid, 410-RCP can be used as a breadboard to virtually mount any component.

Model 38 Mounting Plate

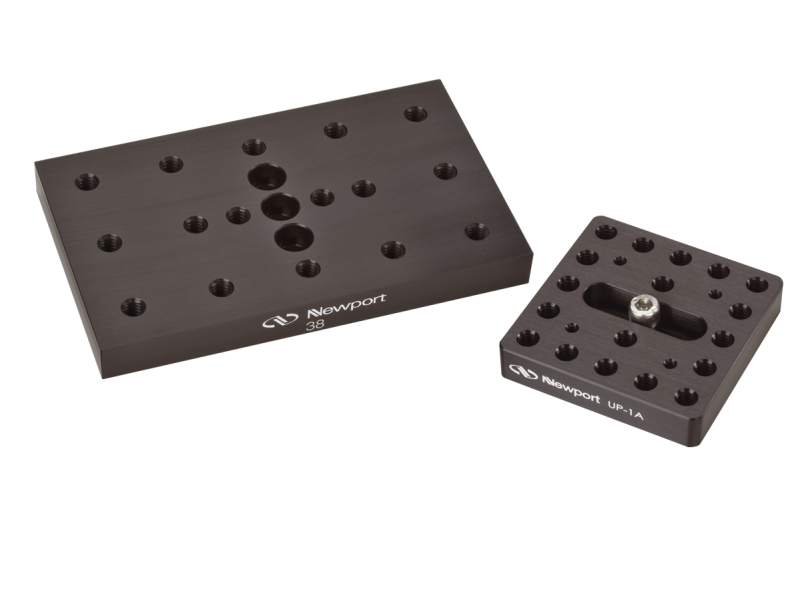

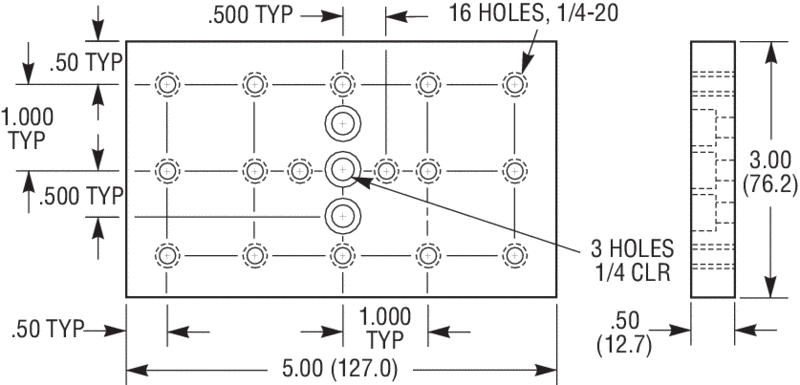

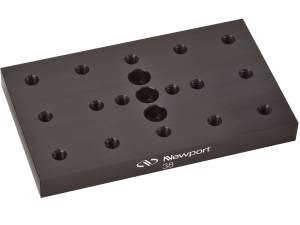

The Model 38 Platform is an anodized aluminum plate with an array of threaded 1/4-20 holes in 1-in. and 0.5-in. hole patterns, along with counter bored through holes, on its 3.0 in. x 5.0 in. surface (76.2 mm x 127 mm). This adaptor plate is particularly useful for mounting English components on to a metric optical table, or to provide a larger mounting surface to smaller stages or base plates. The model 38 is made from black anodized aluminum alloy. If a larger mounting platform is needed, we suggest using Model 290-TP. Model 39 is an adjustable version of this platform which is also available.

290 Versatile Mounting Plates

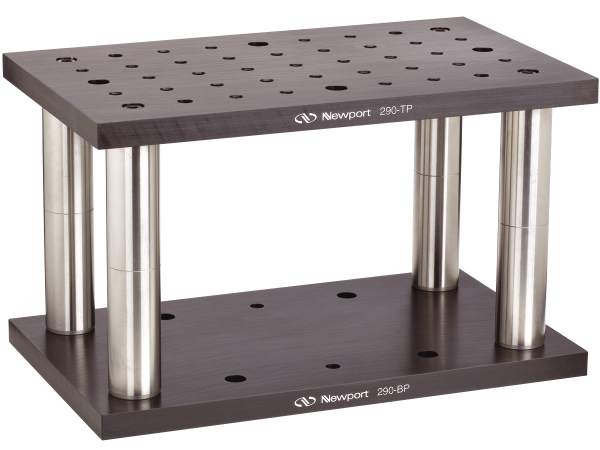

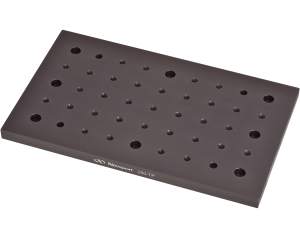

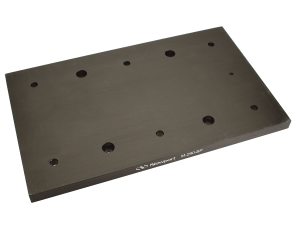

Model 290-TP mounting plate has an array of tapped and clearance mounting holes for attaching components. 290-BP base plate has two rows of clearance holes for tie-down to tables or magnetic bases. Both are used in Fixed Height Platforms assembly as top and base plates.

Mounting Plates and Platforms

Mounting Plates and Platforms

Features

UP-1A Universal Mounting Plates

410-RCP Mounting Plate and 20050-01 Base Plate

Model 38 Mounting Plate

290 Versatile Mounting Plates
