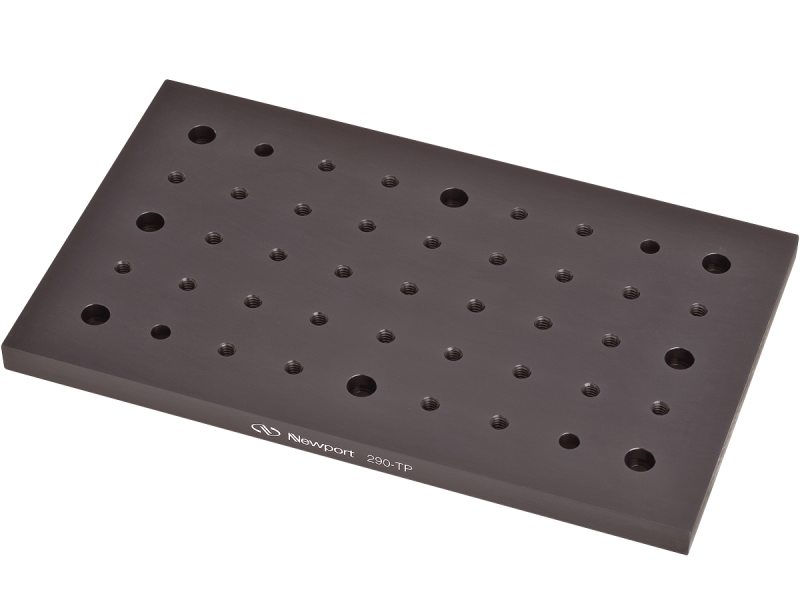

Top Plate, 254.0 mm x 152.5 mm, 33 holes M6 Thread, 12 holes M6 CLR.

Top Plate, 254.0 mm x 152.5 mm, 33 holes M6 Thread, 12 holes M6 CLR.

Model: M-290-TP

$165

In Stock

Compare

Add to List

Product Series Overview

Mounting Plates and Platforms

The M-290-TP Top Plate is 254 x 152.5 mm and has (12) M6 CLR holes, and (33) M6 thread holes. It is part of the M-290 Series Fixed Height Platform Assemblies.

Specifications

Technical Specs

Type

Top Plate
Height

12.7 mm
Length

254 mm
Width

152.4 mm

Thread Type

M6
Material

Aluminum

Type

Top Plate
Height

12.7 mm
Length

254 mm
Width

152.4 mm

Thread Type

M6
Material

Aluminum

Resources & Downloads

Other

M-290-TP RoHS Certificate (277.9 kB, PDF)
M-290-TP_RoHS2021.pdf (682 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

290-TP-DWG-S.pdf (90.1 kB, PDF)
