Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing
Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing
Model: M-360-90
Product Series Overview

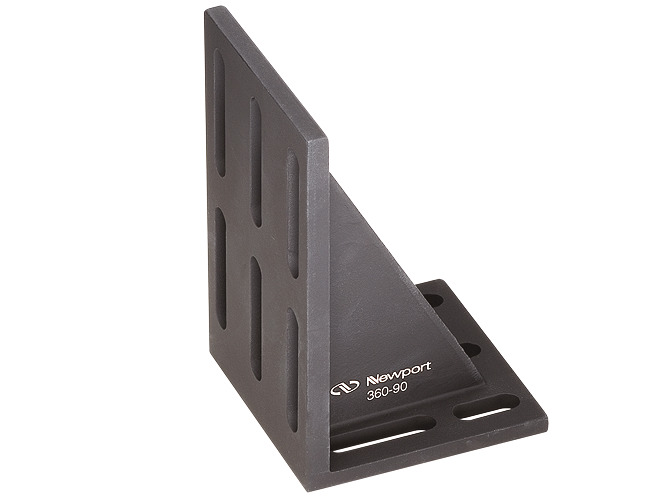

30, 45, 90 Degree Angle Brackets, 360 SeriesThe M-360-90 Angle Bracket is a rigid 90° angled mounting plate with 25 mm separated slotted faces for use with either 1/4-20 or M6 threaded mounting bolts. The 90° angle is accurate to within ±2 arc min.
Build Three Axis Stage Assemblies With 90° Mounting Bracket
Model 360-90 is useful for building long travel 3-axis linear stage stacks using manual stages like our Models 423 , 433 , 443 , 426 or 436.
Slotted Bracket Faces for Universal Mounting
360 Series angle brackets feature slots on the mounting surfaces of each, as apposed to individual holes, separated by 1.0 in. for use with either 1/4-20 or M6 threaded mounting bolts. The M-360-90 features the same slots with 25 mm spacing for use with metric optical tables or breadboards.
Resources & Downloads
2D Product Drawings
360-90 ART-S(109.6 kB, PDF)
Other
M-360-90 RoHS Certificate(279 kB, PDF) M-360-90_RoHS2021.pdf(686.1 kB, PDF)
