Top Plate, Fixed Height Platform, 6 x 10 in., 1/4-20 Thread, (12) 1/4-20 CLR.

Mounting Plates and Platforms

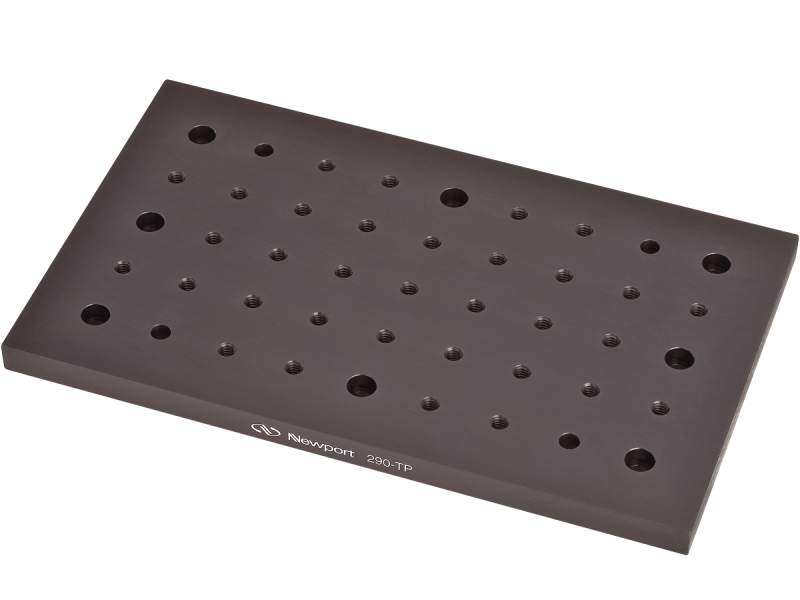

The 290-TP Top Plate is 6.0 x 10.0 in. and has (12) 1/4-20 CLR holes, and (33) 1/4-20 thread holes. It is part of the 290 Series Fixed Height Platform Assemblies.

Specifications

Technical Specs

Type
Top Plate
Height
12.7 mm
Length
254 mm
Width
152.4 mm

Thread Type
1/4-20
Material
Aluminum

Type
Top Plate
Height
12.7 mm
Length
254 mm
Width
152.4 mm

Thread Type
1/4-20
Material
Aluminum

Resources & Downloads

2D Product Drawings

290-TP-DWG-S.pdf(90.1 kB, PDF)

Other

290-TP RoHS Certificate(684.5 kB, PDF)
