Slotted Base, 0.68 in. Range Single Slot, Stainless Steel
Slotted Base, 0.68 in. Range Single Slot, Stainless Steel
Model: B-05A
Product Series Overview

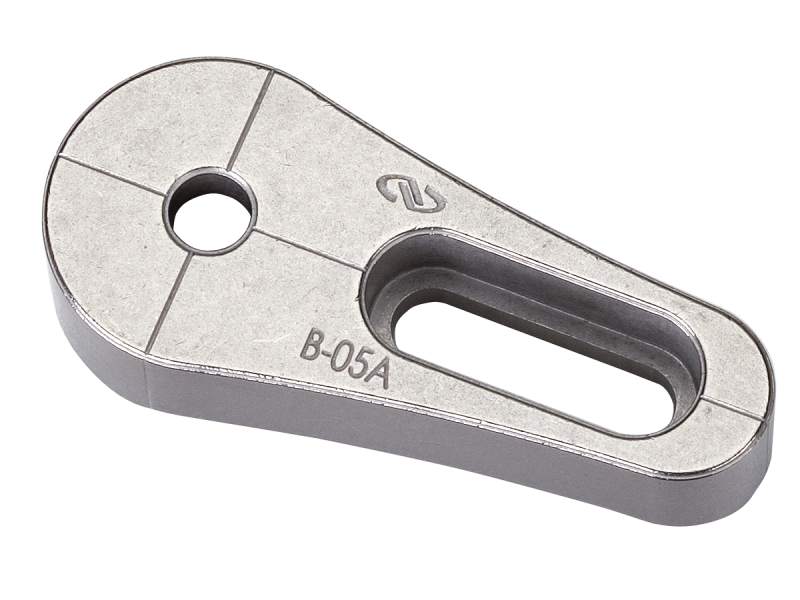

Stainless Steel Slotted BasesThe Model B-05A Stainless Steel Slotted Base provides a single slot allowing both translational and rotational positioning to any point on the table. The base also has bottom-side counterbored through hole to allow attachment of post holders like the VPH-3 or posts like the PS-3T. The base rests on three pads to provide long term stability. This product is also available in 10-piece saving pack
Resources & Downloads
2D Product Drawings
B-05A-S(144.4 kB, PDF)
Other
B-05A RoHS Certificate(278.1 kB, PDF) B-05A_RoHS2021.pdf(681.6 kB, PDF)
