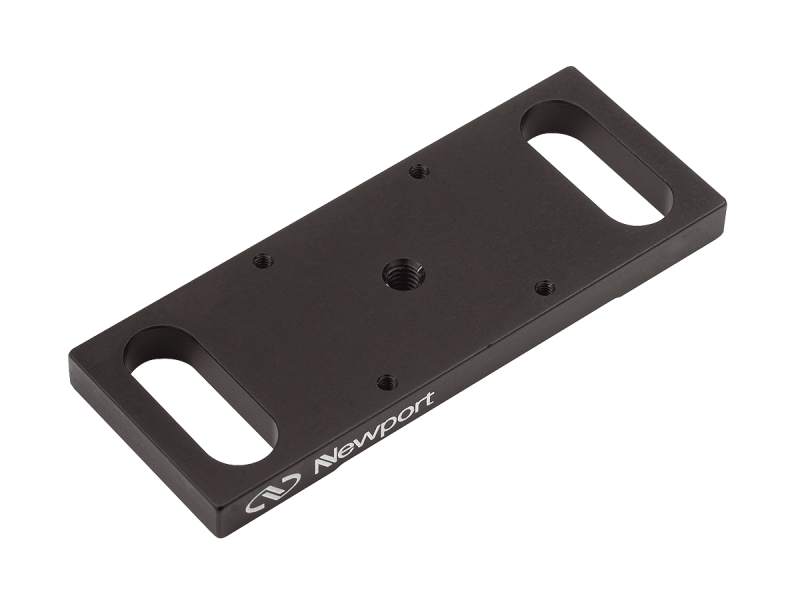

Adaptor Plate, 25x25 mm Stage to Optical Table or 65x65 mm Stage

Slotted Stage Adaptor Plates

The B-2C allows a 25 x 25 mm stage to be attached to an optical table or a 65 x 65 mm stage.

Specifications

Technical Specs

Type
Slotted Adaptor Plate
Height
5 mm
Dimensions
25 x 65 mm
Thread Type
2-56 & 8-32
Material
Aluminum

Use
25 x 25 mm Stages
Translation Range
13 mm

Type
Slotted Adaptor Plate
Height
5 mm
Dimensions
25 x 65 mm
Thread Type
2-56 & 8-32
Material
Aluminum

Use
25 x 25 mm Stages
Translation Range
13 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

M-B-2A-ENV-S(139.3 kB, PDF)

Other

B-2C RoHS V3(221.2 kB, PDF)
