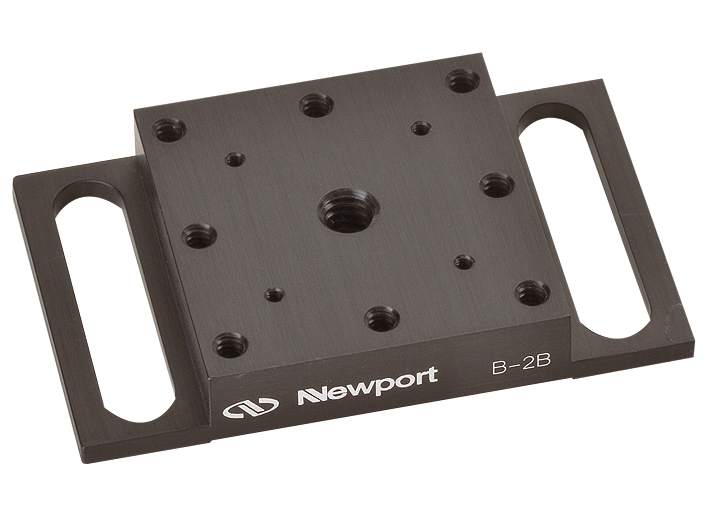

Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage

Specifications

  • Type
    Slotted Adaptor Plate
  • Height
    10 mm
  • Dimensions
    40 x 65 mm
  • Thread Type
    M2, 6-32 & 1/4-20
  • Material
    Aluminum
  • Use
    40 x 40 mm Stages
  • Translation Range
    28 mm

Resources & Downloads

3D Product Models
2D Product Drawings
Other
