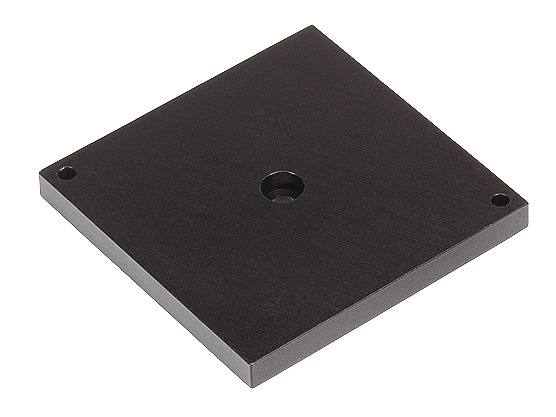

Post Mount Adaptor, 8-32 CLR, Aegis Qube
Post Mount Adaptor, 8-32 CLR, Aegis Qube
Model: Q-CP-1
In Stock
Product Series Overview
Adapter Plates, Aegis QubeThe Q-CP-1 allows optional post mounting of the cube to any one of its 5 open faces. This adaptor can be used to reorient the cube for vertical beam routing or as needed for other types of mounting configurations.
Resources & Downloads
2D Product Drawings
Q-CP-1-291(446.4 kB, PDF)
Other
Q-CP-1 RoHS Certificate(278.3 kB, PDF) Q-CP-1_RoHS2021.pdf(681 kB, PDF)
