Cubic Enclosure, 1 in. Optical Mounts, Aegis Qube Beam Routing System
Cubic Enclosure, 1 in. Optical Mounts, Aegis Qube Beam Routing System
Model: Q-OC-1
Product Series Overview

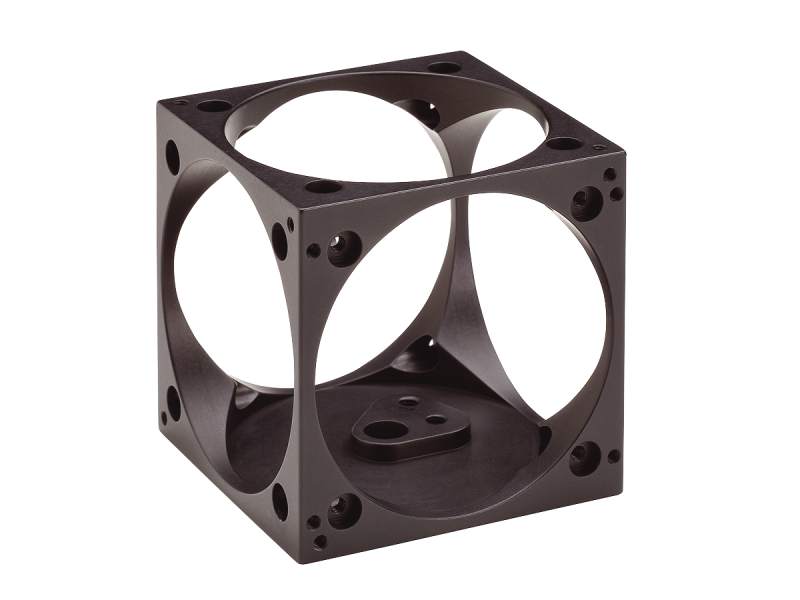

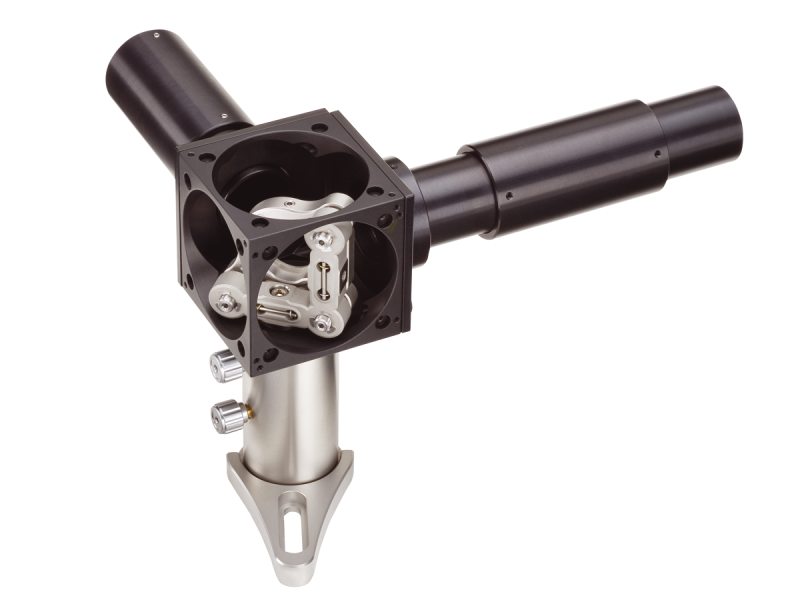

Cubic Enclosures and Mounts, Aegis QubeThe Q-OC-1 Cubic Enclosure can house several types of optical mounts. A Q-SS100-R3HN or a Performa-i P100-Ai3 series kinematic mirror mount will mount directly into the cube. Both of these mount types hold 1-in. diameter mirrors or beam splitters. Any open face of the Q-OC-1 cube can be covered using the Q-XE-CP-1 Cover Plate.
Resources & Downloads
2D Product Drawings
Aegis CUBE(389.2 kB, PDF)
Other
Q-OC-1 RoHS Certificate(278.1 kB, PDF) Q-OC-1_RoHS2021.pdf(681.2 kB, PDF)
