XY Lens Positioner, 1 in. Diameter Lenses, Aegis Qube System
XY Lens Positioner, 1 in. Diameter Lenses, Aegis Qube System
Model: Q-XILP-1
Product Series Overview

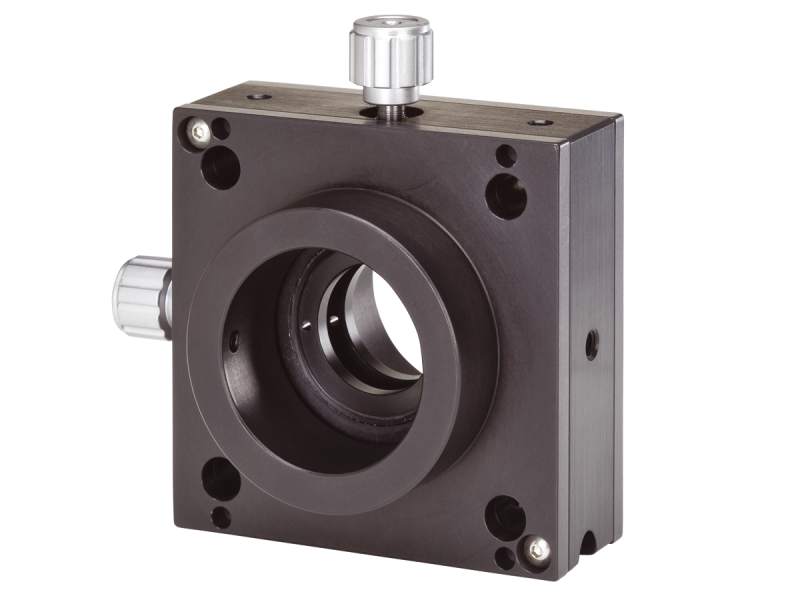

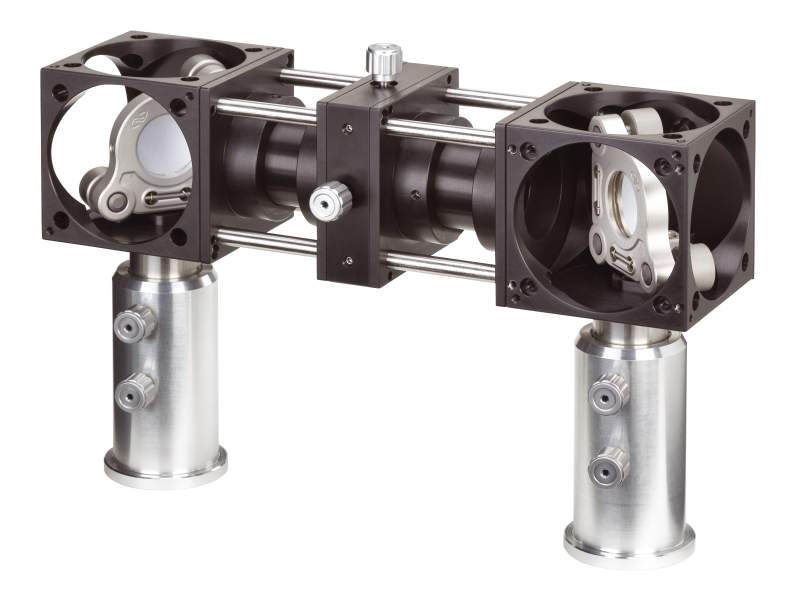

Cubic Enclosures and Mounts, Aegis QubeThe Q-XILP-1 lens positioner can be used to mount 1 inch diameter lenses externally or between cubes. This mount also has both 8-32 and M4 threaded holes for post mounting. Tube adaptors, shown in the photo (Q-XE-TA-1 or Q-XE-TA-R) need to be purchased separately for connected to Q-BT beam tubes.
Resources & Downloads
2D Product Drawings
Q-XILP-1(496.2 kB, PDF)
Other
Q-XILP-1 RoHS Certificate(257.9 kB, PDF)
