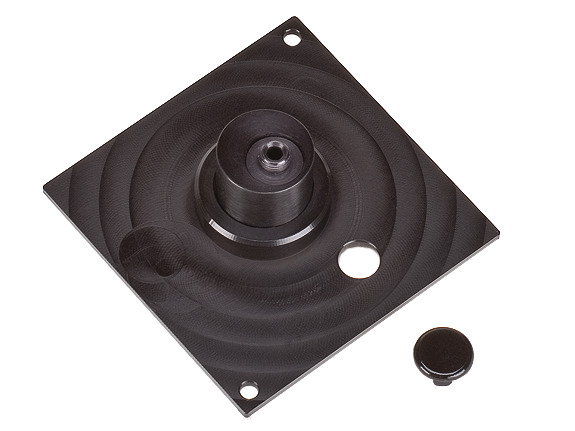

Access Plate, Probe Beam, Aegis Qube
Access Plate, Probe Beam, Aegis Qube
Model: Q-XE-DI-1

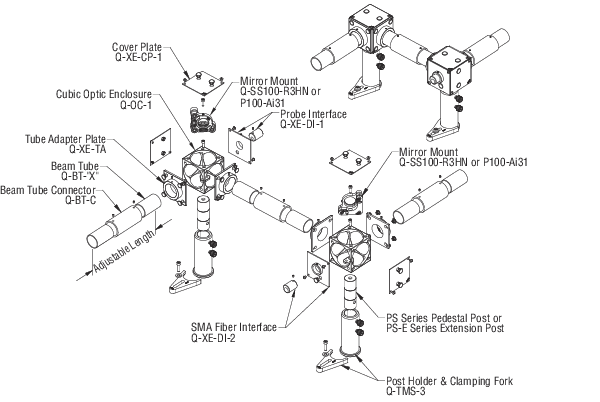

Product Series Overview
Adapter Plates, Aegis QubeThe Q-XE-DI-1 provides access to the interior of the cube for fiber bundles with 0.25 diameter interfaces.
Resources & Downloads
2D Product Drawings
Aegis PICK OFF INTERFACE(359.8 kB, PDF)
Other
Q-XE-DI-1 RoHS Certificate(277.8 kB, PDF) Q-XE-DI-1_RoHS2021.pdf(681.5 kB, PDF)
