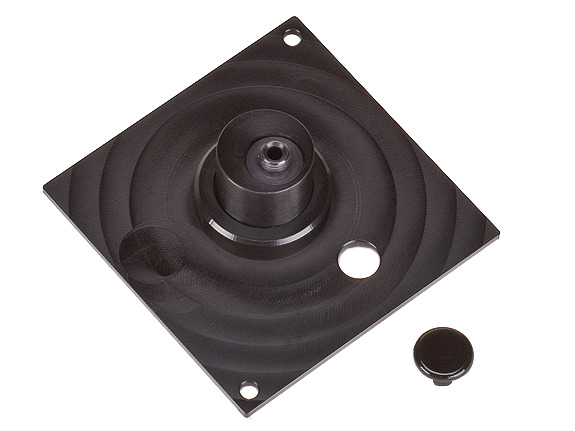

Access Plate, SMA Beam, Aegis Qube
Access Plate, SMA Beam, Aegis Qube
Model: Q-XE-DI-2
In Stock
Product Series Overview
Adapter Plates, Aegis QubeThe Q-XE-DI-2 provides access for connectorized optical fibers with SMA termination. The SMA termination is removable from the Q-XE-DI-2 interface plate and can be replaced with model 77675 which provides ST termination.
Resources & Downloads
2D Product Drawings
Aegis PICK OFF INTERFACE(359.8 kB, PDF)
Other
Q-XE-DI-2 RoHS Certificate(277.8 kB, PDF) Q-XE-DI-2_RoHS2021.pdf(681.6 kB, PDF)
