XYZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6

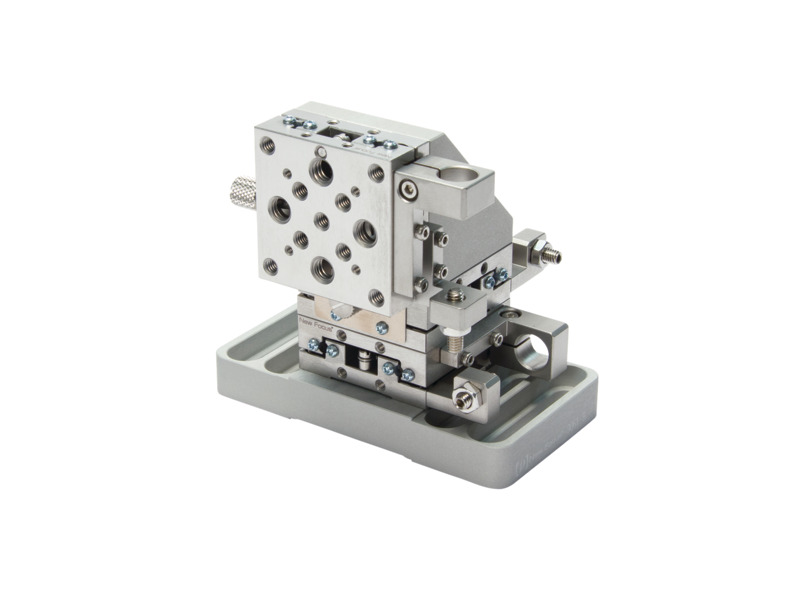

The 9062-XYZ-M Gothic-Arch XYZ Translation Stage uses stainless-steel construction and thumbscrew locks to offer the ultimate in stability and rigidity. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability over the 12.7 mm travel range. The 40 x 40 mm platform features M4 and M6 mounting holes. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. These stages are compatible with our goniometers and rotation stages. NOTE: Actuators are not included with these stages. Please see specifications for recommended actuators.
Resources & Downloads
2D Product Drawings
ENGINEER - 9062_XYZ(262.9 kB, PDF)
Other
9062-XYZ-M RoHS 2023(215.7 kB, PDF)
