Base Plate, Used with UMR5 Series, MVN50 & UTR46 Series
Base Plate, Used with UMR5 Series, MVN50 & UTR46 Series
Model: M-PBN5
Product Series Overview

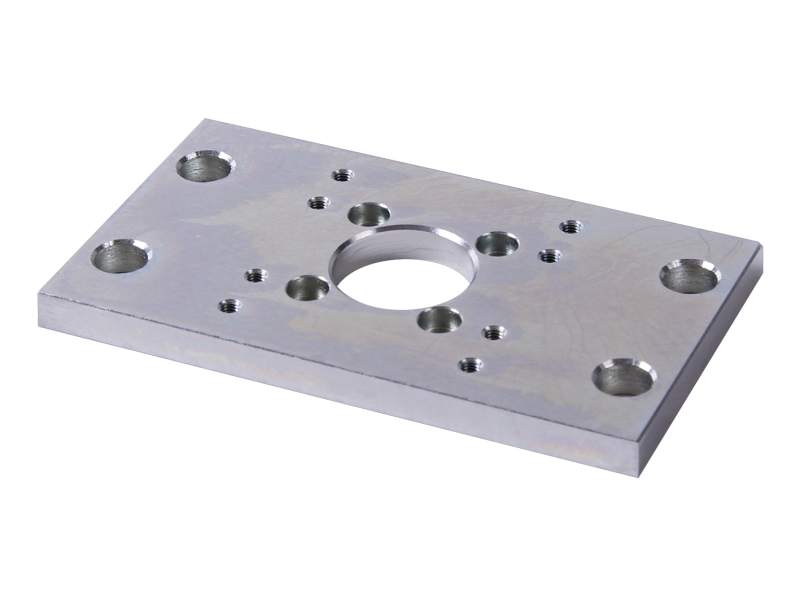

Base Plates, PBN SeriesThe M-PBN5 Steel Base Plate is used to connect positioners with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes provides compatibility with UMR5, MVN50, and UTR46 Series Stages. The base plate is offered in metric only, but is compatible with both English and metric models. Please consult the dimensional drawings for exact specifications.
Resources & Downloads
2D Product Drawings
M-PBN5.pdf(380.2 kB, PDF)
