Base Plate, Used with UMR8 Series, MVN80 & UTR80 Series
Base Plate, Used with UMR8 Series, MVN80 & UTR80 Series

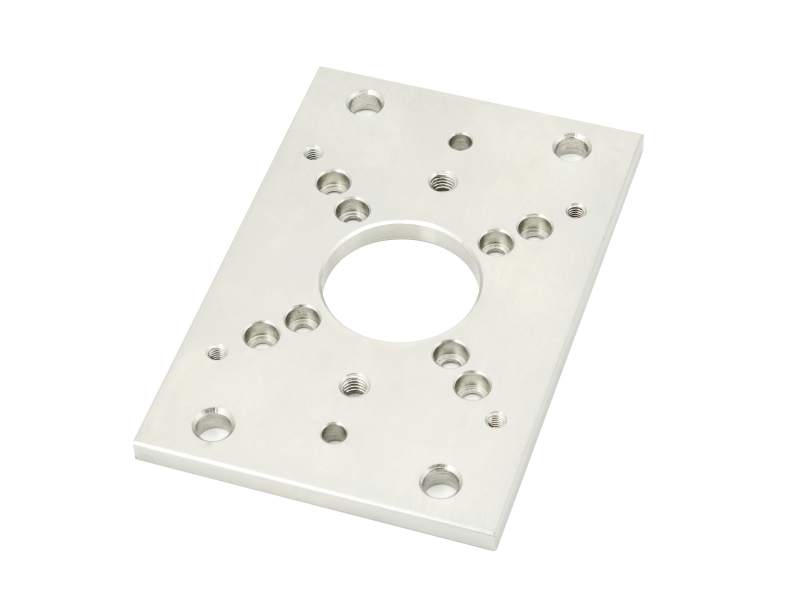

Model: M-PBN8
Product Series Overview
Base Plates, PBN SeriesThe M-PBN8 Steel Base Plate is used to connect positioners with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes provides compatibility with UMR8, MVN80, and UTR80 Series Stages. The base plate is offered in metric only, but is compatible with both English and metric models. Please consult the dimensional drawings for exact specifications.
Resources & Downloads
2D Product Drawings
M-PBN8.pdf(389.4 kB, PDF) M-PBN8V6.pdf(396.1 kB, PDF)
