Base Plate, PBN Series, Use with UTR160 Series Rotation Stages

Model: M-PBN16

$216

Compare

Add to List

Product Series Overview

Base Plates, PBN Series

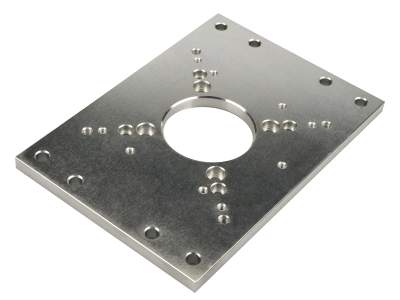

The M-PBN16 Steel Base Plate is used to connect positioners with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes provides compatibility with UTR160 Series Stages. The base plate is offered in metric only, but is compatible with both English and metric models. Please consult the dimensional drawings for exact specifications.

Specifications

Technical Specs

Type

Base Plate
Material

Steel

Use

UMR, UTR, MVN Stages

Type

Base Plate
Material

Steel

Use

UMR, UTR, MVN Stages
