Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series
Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series
Model: M-PBN12
Product Series Overview

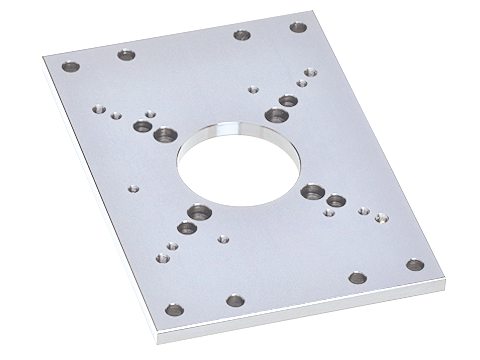

Base Plates, PBN SeriesThe M-PBN12 Steel Base Plate is used to connect positioners with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes provides compatibility with UMR12, MVN120, UTR120, and UTS Series Stages. The base plate is offered in metric only, but is compatible with both English and metric models. Please consult the dimensional drawings for exact specifications.
Resources & Downloads
2D Product Drawings
M-PBN12.pdf(396.2 kB, PDF) M-PBN12V6.pdf(405.3 kB, PDF)
