Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.02 Series
Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.02 Series
Model: 338286
Product Series Overview

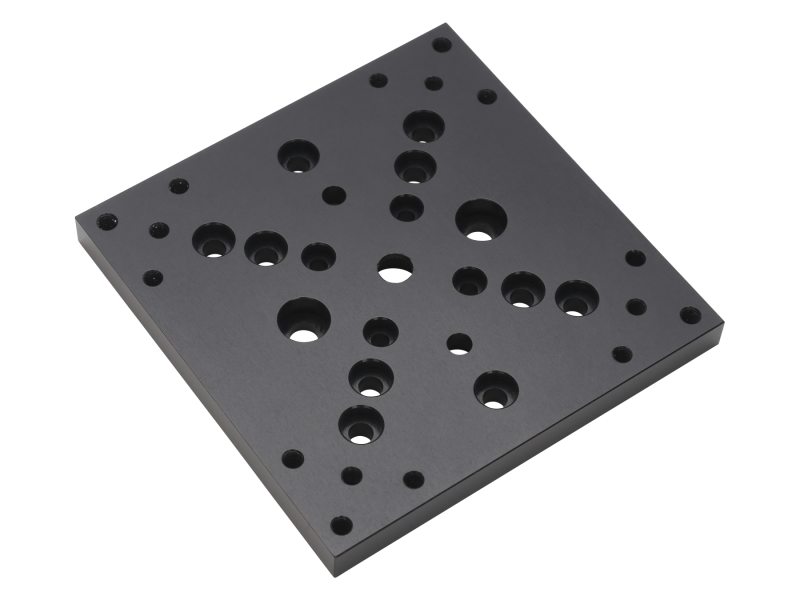

Intermediate Adaptor Plates, PI SeriesThe 338286 Square Intermediate Adaptor Plate is 86 x 86 mm and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR8 stages.
Resources & Downloads
2D Product Drawings
PI86.02-S(159.2 kB, PDF)
