Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.01 Series
Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.01 Series
Model: 338284
Product Series Overview

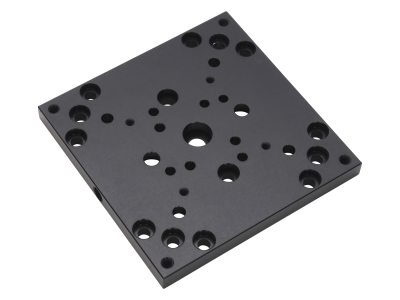

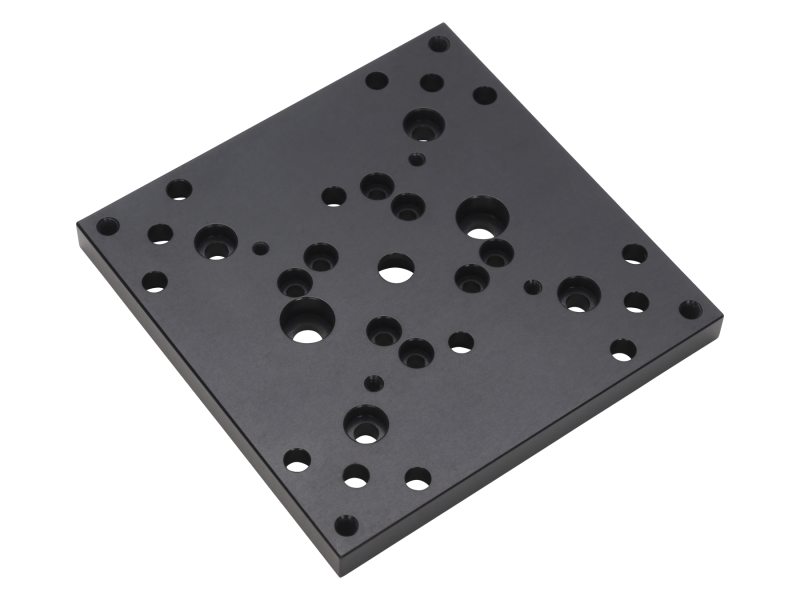

Intermediate Adaptor Plates, PI SeriesThe 338284 Square Intermediate Adaptor Plate is 86 x 86 mm and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR8 stages.
Resources & Downloads
2D Product Drawings
PI86.01-S(133.7 kB, PDF)
