90 degree Angle Bracket, Adjustable, EQ120.03

Model: 338235

$517

Compare

Add to List

Product Series Overview

Adjustable 90 Degree Angle Brackets, EQ Series

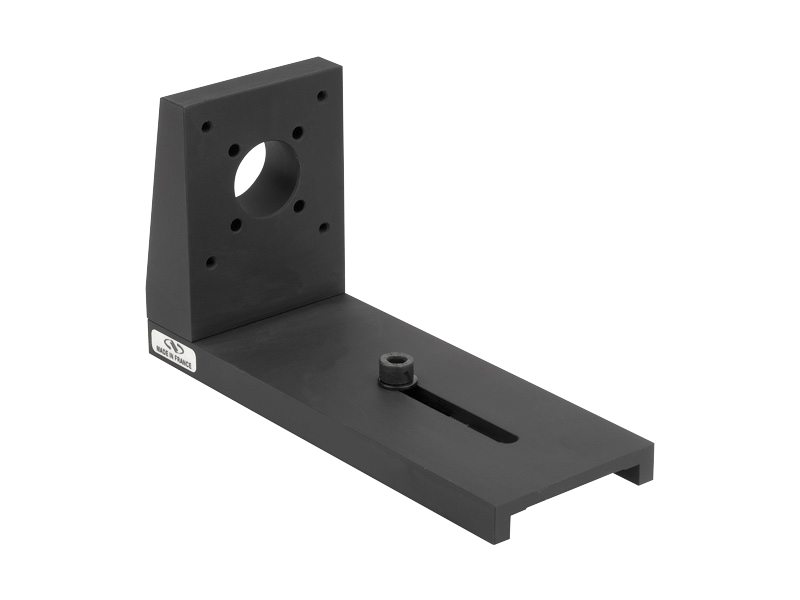

The 338235 EQ120 Series Adjustable Bracket allows one arm of an angle bracket to vary in length. This can be useful to adjust the center of rotation of a UMR linear or UTR rotation stage mounted orthogonal to a UTR stage. It is also beneficial to simply adjust the length of one arm of a UMR or UTR stage mounted orthogonal to a UMR stage. Made of aluminum, this metric bracket is compatible with UMR12 and UTR120 Series stages and has a 4.4 lb. (2 kg) load capacity.

Specifications

Technical Specs

Type

90° Adjustable Angle Bracket
Material

Anodized Aluminum
Use

MR12 and UTR120 Stages

Weight

2 kg

Type

90° Adjustable Angle Bracket
Material

Anodized Aluminum
Use

MR12 and UTR120 Stages

Weight

2 kg

Resources & Downloads

Other

338235 RoHS Certificate (280 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

338235.pdf (180.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
CL18-40 Carriage Lock, UMR12.40	UNIVERSAL	In Stock	$43
ADAPT-BM25-375 Motorized Actuator Adapter, VP-25AA, LTA-HS or PZA12 to UMR12, TGN120 or MVN120	UNIVERSAL	2 Weeks	$71
FP18-40 Fixed Positioning Kit, UMR12.40	UNIVERSAL	Show	$54

Similar

Description	Compatibility	Avail.	Price
EQ80-E Outer Bracket, Compatible with 80 mm Stages	UNIVERSAL	In Stock	$160
338234 90 degree Angle Bracket, Adjustable, EQ8.03	UNIVERSAL	In Stock	$456
338233 90 degree Angle Bracket, Adjustable, EQ5.03	UNIVERSAL	In Stock	$376
X48-1 Optical Rail, Aluminum, 1000 mm Length, M4 Threads, X48 Series	UNIVERSAL	In Stock	$355

Compatible

Description	Compatibility	Avail.	Price
M-PBN12 Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series	UNIVERSAL	In Stock	$147
UTR120 Manual Rotation Stage, Steel, 4.7 in. Diameter, 4° Fine, 1/4-20	IMPERIAL	In Stock	$1,628
UMR12.80 Linear Stage, Single-Row Ball Bearings, 3.15 in., 10-24 and 1/4-20	IMPERIAL	In Stock	$1,204
UMR12.40 Linear Stage, Single-Row Ball Bearings, 1.57 in., 10-24 and 1/4-20	IMPERIAL	In Stock	$787
