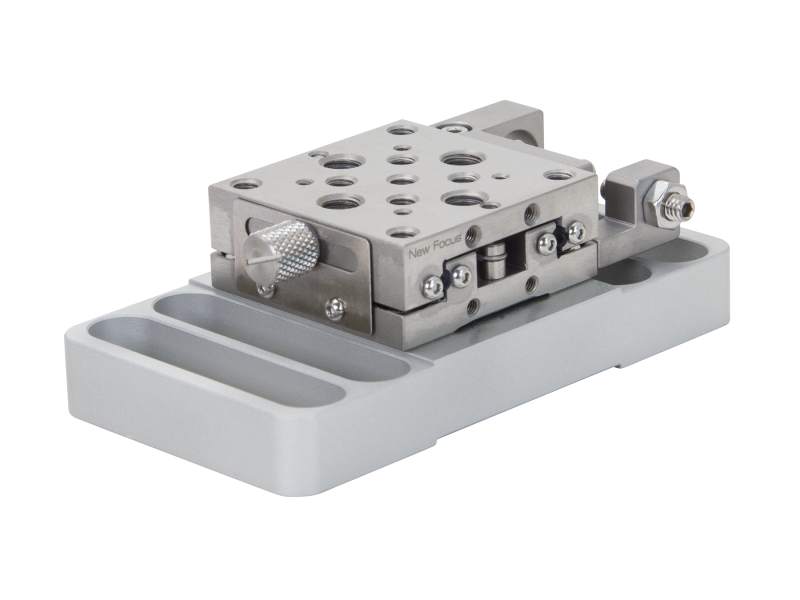

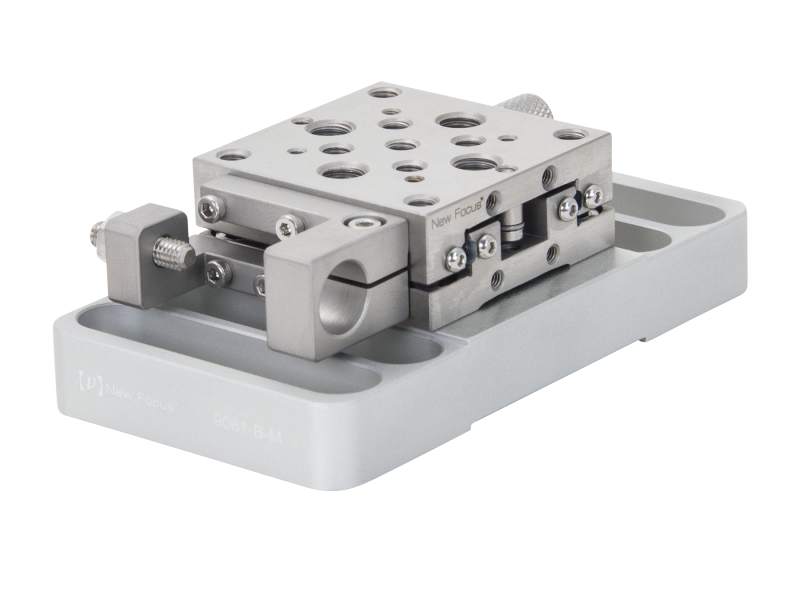

Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6

  • Axes of Travel
    X
  • Maximum Stage Travel
    12.7 mm
  • Centered Normal Load Capacity
    84 N
  • Vertical Axial Load Capacity
    26 N
  • Pitch
    15 arc sec
  • Roll
    10 arc sec
  • Yaw
    20 arc sec
  • Material
    Stainless Steel
  • Bearings
    Gothic-Arch Bearings
  • Platform Size
    40 x 40 mm
  • Thread Type
    M2, M4 and M6
  • Recommended Adjustment Screw
  • Recommended Micrometer
  • Recommended Piezo Actuator
