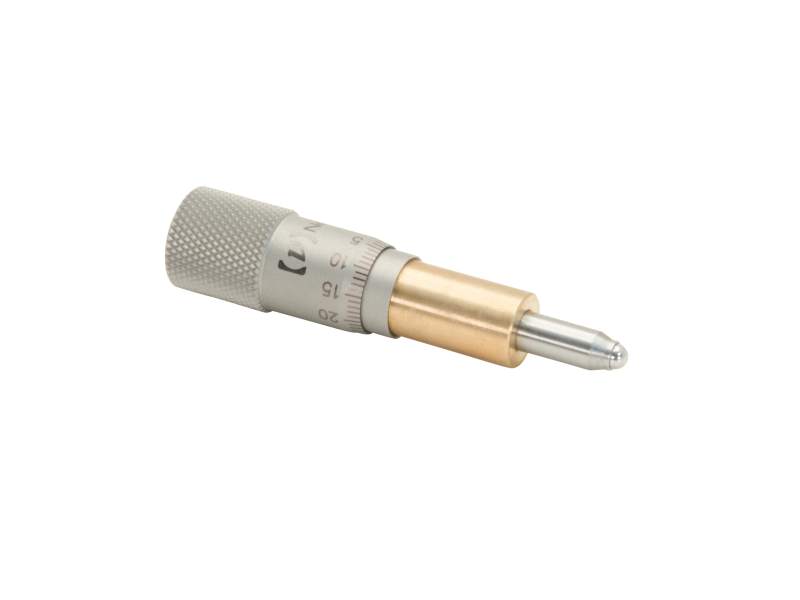

Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages

This high-quality micrometer feature a smooth-bore unthreaded mounting shank for use with slip-in, clamp style mounts. The 9355 Micrometer is a high-quality 0.5 inch travel micrometer that is ideal for use with our 9062 Series gothic-arch-bearing translation stages. The Model 9354 provides smooth and accurate motion over its 0.5 inch travel range.

Specifications

Technical Specs

Travel Range
12.7 mm
Adjustment Screw Thread
50.8 TPI
Drive Type
Knob
Graduations
10 µm
Axial Load Capacity
40 N

Sensitivity
1.0 µm
Drive Screw Pitch
0.5 mm
Mounting
9.5 mm Shank

Travel Range
12.7 mm
Adjustment Screw Thread
50.8 TPI
Drive Type
Knob
Graduations
10 µm
Axial Load Capacity
40 N

Sensitivity
1.0 µm
Drive Screw Pitch
0.5 mm
Mounting
9.5 mm Shank

Resources & Downloads

2D Product Drawings

910162B.pdf(266.8 kB, PDF)
