Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm, M4 and M6, No Baseplate

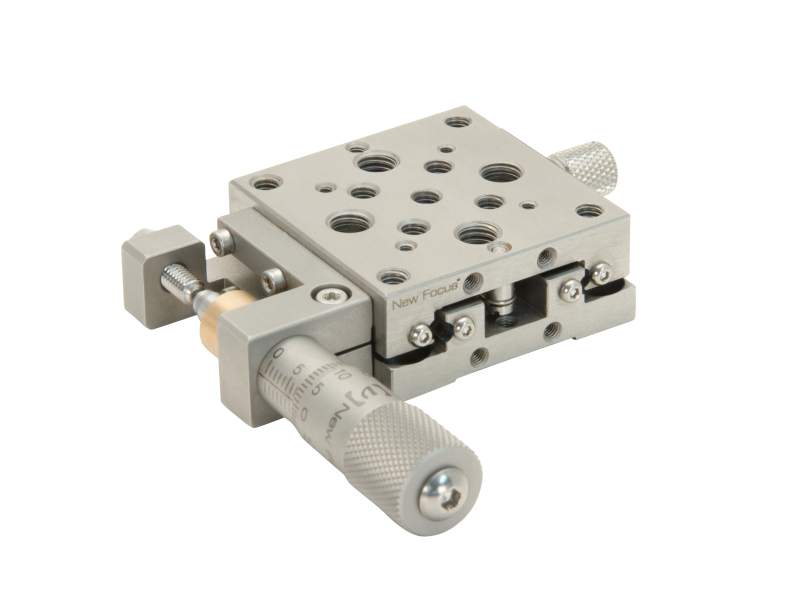

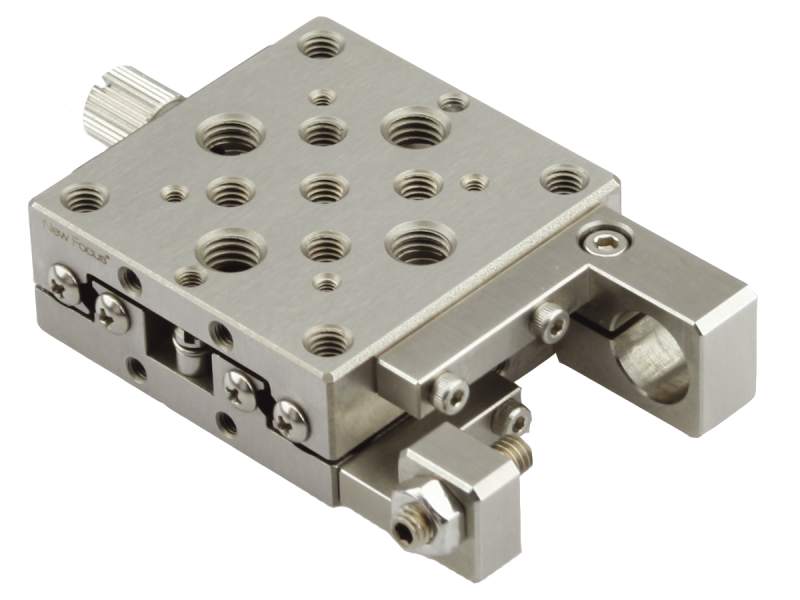

The 9062-COM-M Low Profile Gothic-Arch Stainless-Steel Commercial Stage is a linear X translation stage with 12.7 mm travel that is designed to fit directly into your system. The stage has a 40 mm x 40 mm platform and a reduced profile by eliminating the mounting plates. M4 and M6 mounting threads.
