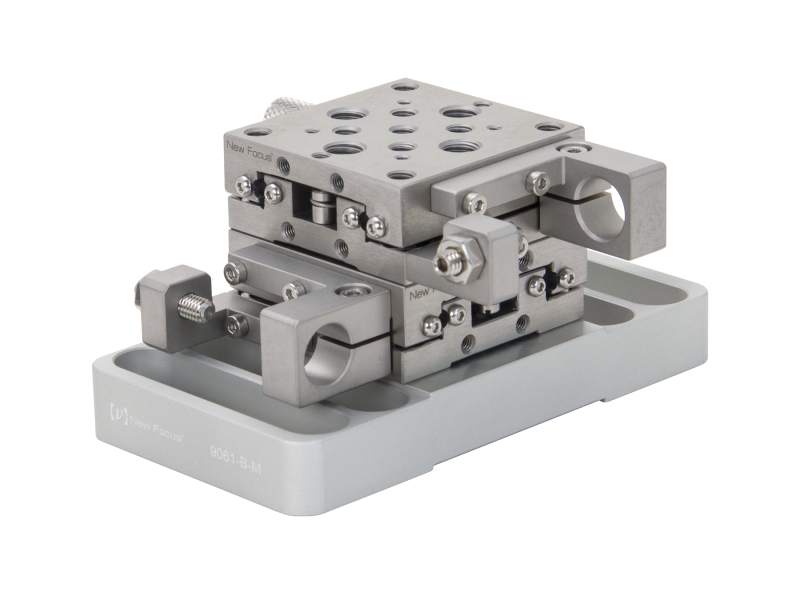

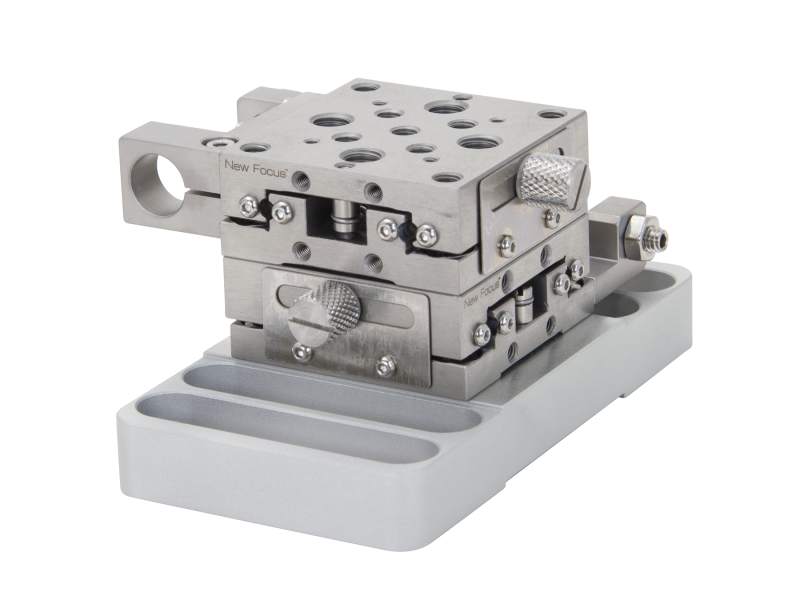

XY Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6
The 9062-XY-M Gothic-Arch XY Translation Stage uses stainless-steel construction and thumbscrew locks to offer the ultimate in stability and rigidity. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability over the 12.7 mm travle range. The 40 mm x 40 mm platform features M4 and M6 mounting holes. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. These stages are compatible with our goniometers and rotation stages.
Resources & Downloads
2D Product Drawings
9062-XY (M) - Drawing(104.6 kB, PDF)
Other
9062-XY-M RoHS 2023(215.3 kB, PDF)
