Lab Power Supply, ±15 VDC

model 0901 power supply for New Focus sensors, detectors, receivers, and amplifiers

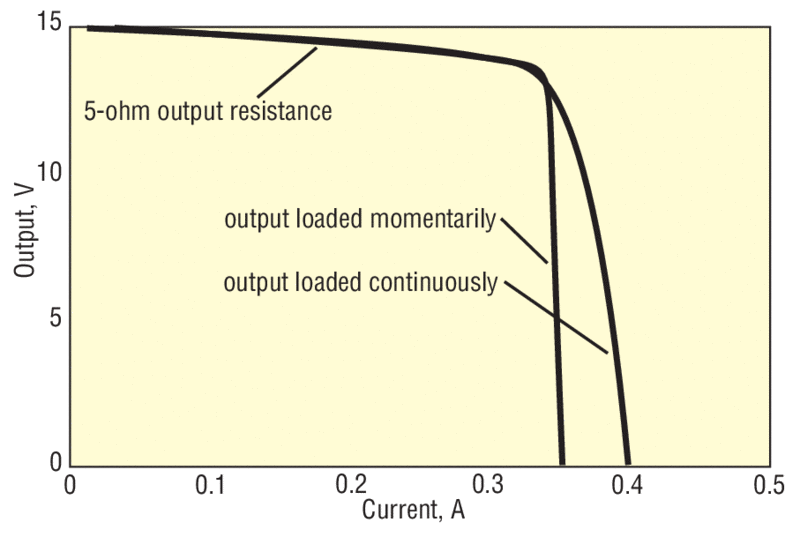

The 0901 Power Supply is intended for use with New Focus detectors and receivers, but can also be used for general laboratory applications. Two of the three ±15 VDC outputs have Pico(m8) connectors and the third output has banana jacks for use with other laboratory equipment. All three outputs are independently current limited to prevent damage. If a load draws current beyond the specified limit, the voltage to that load drops very rapidly, reducing the available power and preventing damage to the power supply and the attached equipment.

Specifications

Technical Specs

Type
Power Supply
Output Impedance
2 Ω (approximately)
Operating Temperature Range
10°C to 40°C (<90% humidity non-condensing)
Output Voltage
±15 V (3% tolerance)

Number of Outputs
2x Pico (m8), 1x banana jacks
Current Range
<300 mA

Type
Power Supply
Output Impedance
2 Ω (approximately)
Operating Temperature Range
10°C to 40°C (<90% humidity non-condensing)
Output Voltage
±15 V (3% tolerance)

Number of Outputs
2x Pico (m8), 1x banana jacks
Current Range
<300 mA

Resources & Downloads

Manuals

0901 User Manual(2 MB, PDF)

Other

0901 CE Declaration of Conformity(103.2 kB, PDF)
0901 RoHS Declaration(207.5 kB, PDF)

Related Products

Accessories (sold separately)

Description	Compatibility	Avail.	Price
0923Accessory Cable, Pico (m8) Double-Ended, Male to Male, 1 m	UNIVERSAL	In Stock	$59
0923-2Accessory Cable, Pico (m8) Double-Ended, Male to Male, 2 m	UNIVERSAL	In Stock	$69
0924Accessory Cable, Pico (m8) Male to Banana Plug, 1 m	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$103

Frequently Purchased Together

Description	Compatibility	Avail.	Price
0923-2Accessory Cable, Pico (m8) Double-Ended, Male to Male, 2 m	UNIVERSAL	In Stock	$69
0923Accessory Cable, Pico (m8) Double-Ended, Male to Male, 1 m	UNIVERSAL	In Stock	$59

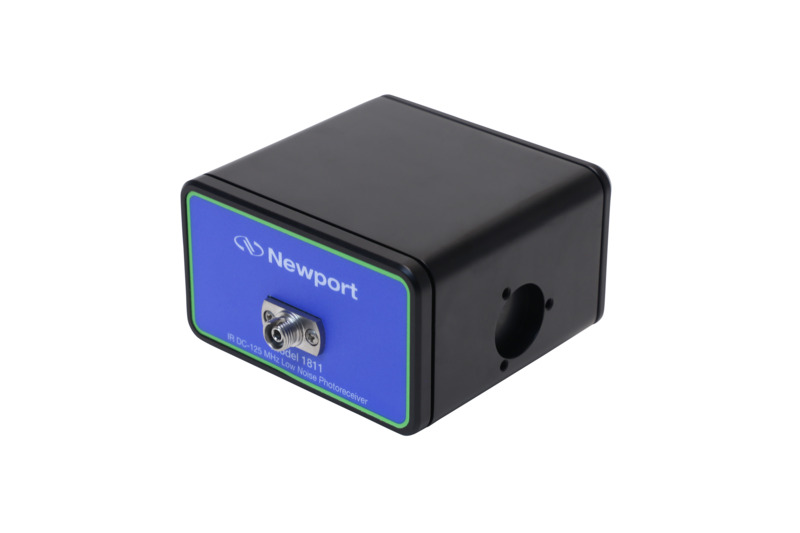

1811-FCFiber-Optic Receiver, 900-1700 nm InGaAs, 125 MHz, FC, DC-Coupled	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,700

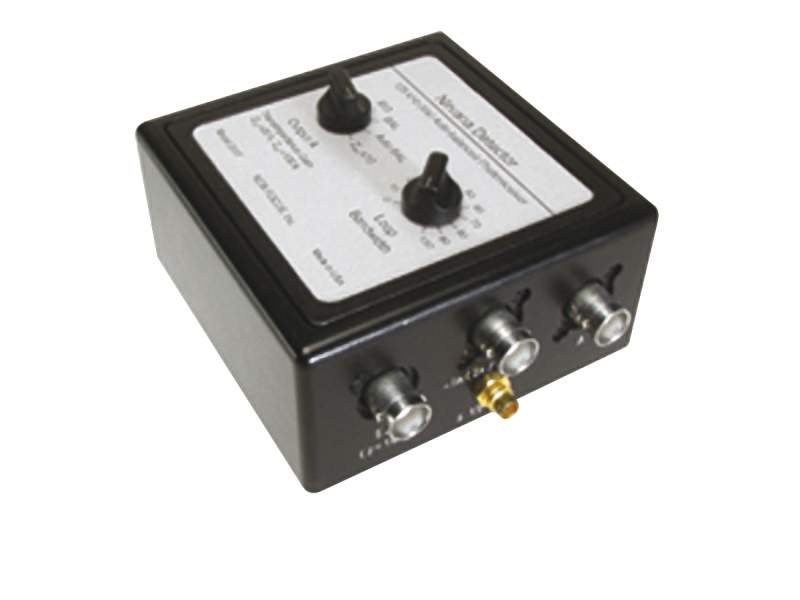

2007Auto-balanced Optical Receiver, Nirvana, 400-1070 nm, 125 kHz, 8-32 / M4	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,910
0924Accessory Cable, Pico (m8) Male to Banana Plug, 1 m	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$103
2053-FC-MFiber-Optic Receiver, Adjustable, 900-1700 nm InGaAs Detector, 10 MHz, M4 Thread	METRIC	5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,460

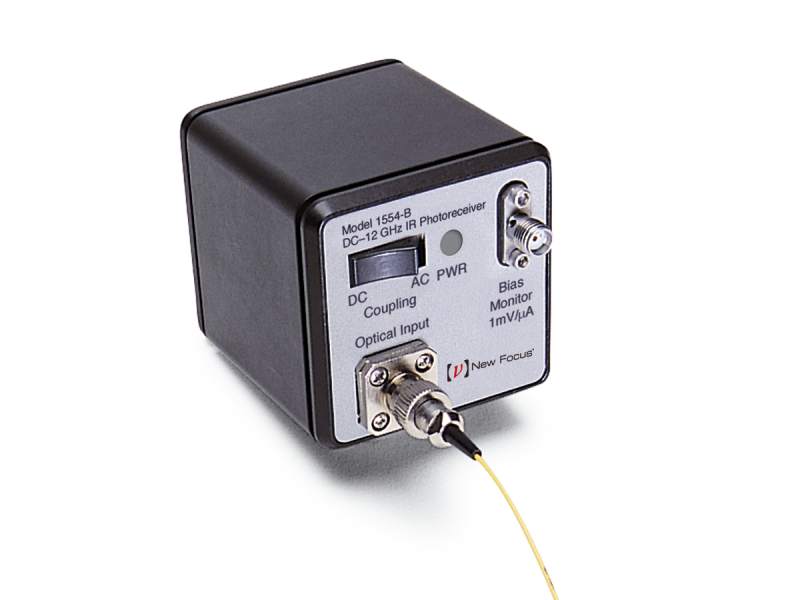

1544-BFiber-Optic Receiver, DC Coupled, 800-1650 nm, 12 GHz, FC Singlemode	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$5,890
1811-FC-ACFiber-Optic Receiver, 900-1700 nm InGaAs, 25 kHz to 125 MHz, FC, AC-Coupled	UNIVERSAL	1 Week	$1,840

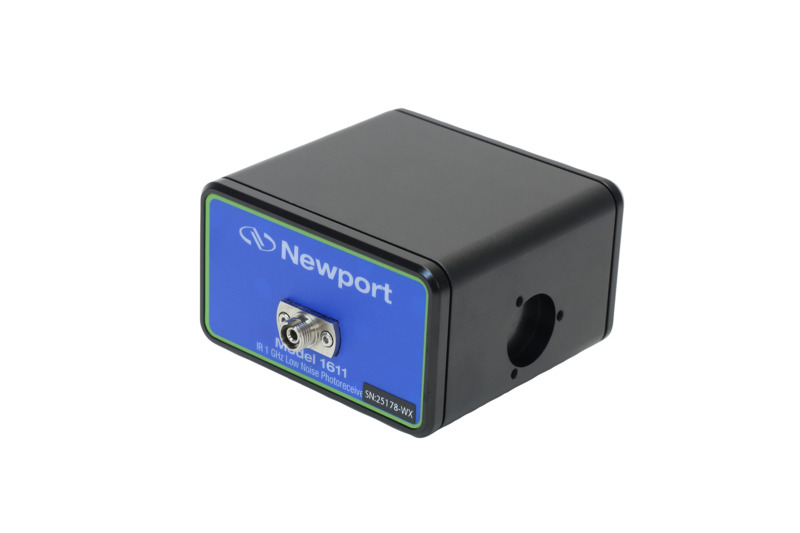

1611FC-ACFiber-Optic Receiver, 900-1700 nm InGaAs, 30 kHz to 850 MHz, FC/PC, AC-Coupled	UNIVERSAL	1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,570
